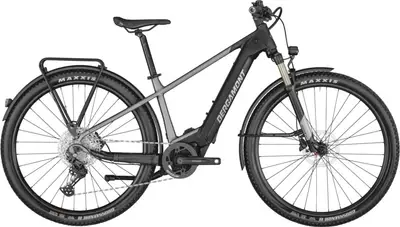

    E-Revox Pro EQ2021 Bergamont
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		53.1 lbs
    4.7
    Frame
    		Aluminum
    		Suntour XCR Air
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 250W 85Nm mid-drive
    		Bosch 500Wh
    		Deore
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    bergamont.com

    Summary
    		The Bergamont E-Revox Pro EQ is a 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    E-Revox Pro EQ
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    E-Revox Pro EQ

    Highest gear

    (descending)

    Geometry
    Specs
    E-Revox Pro EQ2021 Bergamont
    Frame

    29", ultra lite AL-6061 tubing, PowerTube battery

    BB Standard: Bosch, Press Fit

    Color: Matt Chrome / Black/chrome (Matt/shiny)

    Fork

    Suntour XCR34 Air, 100 mm, rebound adjust, 15x110 mm axle

    Travel: 100mm

    Spring Type: Air

    Bottom Bracket

    Bosch, Isis

    Headset

    BGM F13-X, A-Headset, semi-integrated, tapered

    Stem

    Syncros FL2.0, +/-6°

    Handlebar

    Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S

    Saddle

    Ergon SM10 E-Mountain

    Seatpost

    Syncros M3.0

    Type: Rigid

    Pedals

    none

    Grips

    Ergon GA20

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M5100, Shadow Plus

    Crank

    FSA CK-320, 34t, 170 mm

    Shifters

    Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter

    Cassette

    Shimano Deore, CS-M5100, 11-51t

    Chain

    KMC e11S

    Brakes

    Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180 mm

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT201, hydraulic disc brake

    Wheels
    Rims

    Alex EXR25, disc, eyelets, width: 25 mm

    Spokes

    Sapim Leader

    Front Hub

    Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

    Rear Hub

    Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

    Tires

    Maxxis Crossmark II, EXO, folding, Tubeless ready, 29x2.25" Tubes: Schwalbe SV21B

    Electric Components
    Motor

    Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)

    Battery

    Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)

    Accessories
    Lights

    Front: Litemove SE, 70 Lux, LED, E-Bike Version Rear: Herrmans H-Trace Mini, LED

    Fenders

    Racktime Wingee

    Racks

    New Racktime / BGM carrier
