    E-Revox Pro2023 Bergamont
    Recommended
    MSRP
    ($4,170)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		60.2 lbs
    4.6
    Frame
    		Aluminum
    		Suntour XCR
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		Bosch 250W 85Nm mid-drive
    		Bosch 750Wh
    		Deore
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    bergamont.com

    Summary

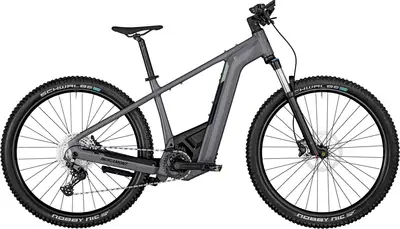

    		The Bergamont E-Revox Pro is a 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    E-Revox Pro

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-Revox Pro2023 Bergamont
    Frame

    29", super lite AL-6061 tubing, BES III, PowerTube battery

    BB Standard: Bosch, Press Fit

    Color: Shiny Space Grey

    Fork

    Suntour XCR34 LOR, 120 mm, rebound adjust, 15x110 mm axle

    Travel: 120mm

    Bottom Bracket

    Bosch, Isis

    Headset

    Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock

    Stem

    Satori Viper, 0°

    Handlebar

    Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

    Saddle

    Syncros Tofino 2.5

    Seatpost

    Syncros M3.0

    Type: Rigid

    Pedals

    MTB alloy

    Grips

    Syncros E-MTB

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M5100, Shadow Plus

    Crank

    FSA CK-320, 34t, 170 mm

    Shifters

    Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter

    Cassette

    Shimano Deore, CS-M5100, 11-51t

    Chain

    KMC e11S

    Brakes

    Shimano BR-MT410, hydraulic disc brake

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    Shimano BL-M4100, hydraulic disc brake

    Wheels
    Rims

    Cross X18, disc, eyelets, width: 30 mm

    Spokes

    stainless, black

    Front Hub

    Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

    Rear Hub

    Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

    Tires

    Front: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light

    Disc Rotors

    Front: Shimano SM-RT30, 203 mm Rear: Shimano SM-RT30, 180 mm

    Electric Components
    Motor

    Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

    Battery

    Bosch PowerTube, 36 V Li Ion, 750 Wh

    Display

    Bosch LED Remote with Kiox 300 display

    Charger

    Bosch Standard Charger, 4A
