    E-Revox FS 202026 Bergamont
    Recommended
    MSRP
    ($7,003)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		56.4 lbs
    5.6
    Frame
    		Aluminum
    		Marzocchi Bomber Z2
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 250W 85Nm mid-drive
    		Bosch 800Wh
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		150mm
    Brand Site

    bergamont.com

    Summary

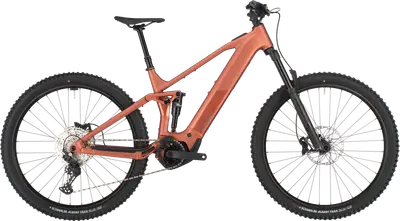

    		The Bergamont E-Revox FS 20 is a 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    E-Revox FS 20

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-Revox FS 202026 Bergamont
    Frame

    29", ultra lite AL-6061 tubing, PowerTube battery, 150 mm travel

    BB Standard: Bosch, Press Fit

    Fork

    Marzocchi Bomber Z2 Air, eMTB+, 150 mm, 15x110 mm axle

    Travel: 150mm

    Spring Type: Air

    Shock

    X-Fusion O2 Pro RLX, Trunnion, compression-, rebound. Adj. 150 mm

    Travel: 150mm

    Bottom Bracket

    Bosch, Isis

    Headset

    Acros, A-Headset, semi-integrated, tapered, blocklock, with integrated cable routing

    Stem

    Syncros FL2.0

    Handlebar

    Syncros Hixon 2.0, riserbar, rise: 12 mm, width: 760 mm

    Saddle

    Syncros Tofino 2.5

    Seatpost

    Syncros Duncan, dropper post

    Type: Dropper

    Pedals

    none

    Grips

    Syncros MTB Comfort, lock-on

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M6100, Shadow Plus

    Crank

    FSA CK-745, 165 mm, 34t

    Shifters

    Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter

    Cassette

    Shimano Deore, CS-M6100, 10-51t

    Chain

    KMC e12S

    Brakes

    Shimano BR-MT420, hydraulic disc brake, 4-piston

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT4100, hydraulic disc brake

    Wheels
    Rims

    Syncros MD30, disc, eyelets, tubeless ready

    Spokes

    Sapim Race, black

    Front Hub

    Formula CL-811, 15x110 mm axle

    Rear Hub

    Formula CL-148M, centerlock, disc, 12x148 mm axle

    Tires

    Front: Schwalbe Albert Trail Pro, TLR, Soft, 63-622 Tube: Schwalbe SV19, Rear: Schwalbe Albert Trail Pro, TLR, Soft, 63-622 Tube: Schwalbe SV19

    Disc Rotors

    Shimano SM-RT64, 203 mm

    Electric Components
    Motor

    Bosch Smart System, Performance Line CX, 250 W, 36 V, max. 25 km/h

    Battery

    Bosch PowerTube, 36 V Li Ion, 800 Wh

    Display

    Bosch Mini Remote with TT System Controller

    Charger

    Bosch Standard Charger, 4A
