    E-Revox FS 102026 Bergamont
    Recommended
    MSRP
    ($8,457)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		58.0 lbs
    7.4
    Frame
    		Aluminum
    		RockShox Lyrik Select
    		RockShox Deluxe Select+
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 250W 85Nm mid-drive
    		Bosch 800Wh
    		Eagle AXS, GX Eagle Transmission
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		150mm
    Brand Site

    bergamont.com

    Summary

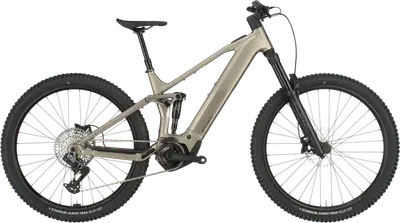

    		The Bergamont E-Revox FS 10 is a 29″ aluminum frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    E-Revox FS 10

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-Revox FS 102026 Bergamont
    Frame

    29", ultra lite AL-6061 tubing, PowerTube battery, 150 mm travel

    BB Standard: Bosch, Press Fit

    Hanger Standard: UDH

    Fork

    RockShox Lyric Select, 150 mm, 15x110 mm axle

    Travel: 150mm

    Shock

    RockShox Deluxe Select+ RT, Trunnion, compression-, rebound. Adj. 150 mm

    Travel: 150mm

    Bottom Bracket

    Bosch, Isis

    Headset

    Acros, A-Headset, semi-integrated, tapered, blocklock, with integrated cable routing

    Stem

    Syncros AM 2.0, 0°

    Handlebar

    Syncros Hixon 2.0, riserbar, rise: 12 mm, width: 760 mm

    Saddle

    Syncros Tofino E 2.0

    Seatpost

    Syncros Duncan, dropper post

    Type: Dropper

    Pedals

    none

    Grips

    Syncros MTB Comfort, lock-on

    Groupset
    Rear Derailleur

    SRAM GX Eagle AXS, T-Type

    Crank

    E-13, Helix Core, 165 mm, 34t

    Shifters

    SRAM AXS POD, 1x12-speed

    Cassette

    SRAM GX Eagle T-Type, CS-1275, 10-52t

    Chain

    SRAM GX Eagle, Flat Top

    Brakes

    Shimano BR-MT420, hydraulic disc brake, 4-piston

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT4100, hydraulic disc brake

    Wheels
    Rims

    Syncros MD30, disc, eyelets, tubeless ready

    Spokes

    Sapim Race, black

    Front Hub

    Formula CL-811, 15x110 mm axle

    Rear Hub

    Formula ECT-1481, centerlock, disc, 12x148 mm axle

    Tires

    Front: Schwalbe Albert Trail Pro, TLR, Soft, 63-622 Tube: Schwalbe SV19, Rear: Schwalbe Albert Trail Pro, TLR, Soft, 63-622 Tube: Schwalbe SV19

    Disc Rotors

    Shimano SM-RT64, 203 mm

    Electric Components
    Motor

    Bosch Smart System, Performance Line CX, 250 W, 36 V, max. 25 km/h

    Battery

    Bosch PowerTube, 36 V Li Ion, 800 Wh

    Display

    Bosch Mini Remote with TT System Controller

    Charger

    Bosch Standard Charger, 4A
