    E-Revox 42023 Bergamont
    Recommended
    MSRP
    ($3,497)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		49.6 lbs
    4.2
    Frame
    		Aluminum
    		Suntour X1
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 250W 63Nm mid-drive
    		Bosch 500Wh
    		Alivio, Altus
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    bergamont.com

    Summary

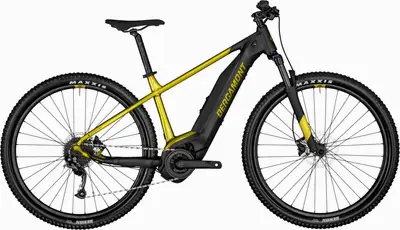

    		The Bergamont E-Revox 4 is a 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    E-Revox 4

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-Revox 42023 Bergamont
    Frame

    29", ultra lite AL-6061 tubing, integrated PowerPack battery

    BB Standard: Bosch, Press Fit

    Color: Yellow Gold (Shiny)

    Fork

    Suntour X1 LO, 100 mm, rebound adjust

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    Bosch, Isis

    Headset

    FSA NO.57SC-1, A-Headset, semi-integrated, tapered

    Stem

    Syncros 3.0, +/-6°

    Handlebar

    Syncros 3.0, riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S

    Saddle

    Syncros M3.0

    Seatpost

    Syncros M3.0

    Type: Rigid

    Pedals

    none

    Grips

    Syncros MTB

    Groupset
    Rear Derailleur

    Shimano RD-M2000, Shadow

    Crank

    FSA CK-200, 32t, 170 mm

    Shifters

    Shimano SL-M3100, 1x9-speed, rapidfire plus-shifter

    Cassette

    Sunrace CS-M90, 11-36t

    Chain

    KMC e9S

    Brakes

    Shimano BR-MT200, hydraulic disc brake

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT200, hydraulic disc brake

    Wheels
    Rims

    Ryde Rival 23 disc, eyelets

    Spokes

    Sapim Leader

    Front Hub

    Shimano, centerlock, disc, quick release

    Rear Hub

    BGM Pro, centerlock, disc, 12x148 mm axle

    Tires

    Front: Maxxis Rekon, 29x2.40" Tube: Schwalbe SV19B Light, Rear: Maxxis Rekon, 29x2.40" Tube: Schwalbe SV19B Light

    Disc Rotors

    Shimano SM-RT10, 180 mm

    Electric Components
    Motor

    Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h

    Battery

    Bosch PowerPack, covered, 36 V Li Ion, 500 Wh

    Display

    Bosch Purion
