Today’s Deals | Recommended |
|---|
MSRP | $1,699 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | General Urban, E-Bike | |
Weight | 61.5 lbs | |
Frame | Aluminum | |
| Steel | ||
Wheels | Aluminum | |
Wheel Size | 26″ | |
| Tektro Dorado Hydraulic Disc | ||
| 750W 75Nm hub-drive | ||
| 595Wh | ||
| Shimano | ||
Drivetrain | 1 × 7 | |
Suspension | Hardtail | |
Front Travel | 25mm | |
Brand Site | ||

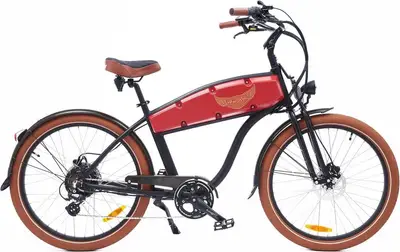

Summary | The Ariel Rider N-Class is a 26″ aluminum frame general urban e-bike with modest components and tektro dorado hydraulic disc brakes. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy, Double Heat Treated T4 and T6 for Strength, Polycarbonate Plastic | |
|---|---|---|
Fork | Custom Made Chromoly Steel Springer Style Suspension Fork, 25mm Travel, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer Travel: 25mm | |
Headset | Neco, Internal Cups, Straight 1-1/8" | |
Stem | Promax MA-579, Tool-Free Adjustable Angle, 100mm Length, 10mm Sloped Bottom Spacer | |
Handlebar | Zoom BH-21S Cruiser Bar, Alloy, 700mm Length | |
Saddle | Velo 8030 Extra-Wide Plush Plus, Sprung, Faux-Leather | |
Seatpost | Promax, Aluminum Alloy, Forged Head Type: Rigid | |
Pedals | Wellgo B087DU Aluminum Alloy Platform | |
Grips | Faux-Leather Padded, Stitched |
Crank | Prowheel, Forged Alloy, 170mm Length, 46 Tooth Steel Chainring with Alloy Bash Guard | |
|---|---|---|
Shifters | Shimano ASLTX50R-7CT SIS Index Thumb Shifter | |
Cassette | 7 Speed 1x7 Shimano Altus ARDM310DLC Derailleur, 11-32 Tooth | |
Brakes | Tektro Dorado HDE715 Hydraulic Disc with 160mm Front Rotor and 180mm Rear Rotor, Dual Piston Calipers, Four Finger Levers with Motor Inhibitors and Adjustable Reach Type: Tektro Dorado Hydraulic Disc |
Rims | Double Walled, Aluminum Alloy, Paint-Matched, 30mm Width, 36 Hole | |
|---|---|---|
Spokes | Stainless Steel, 13 Gauge Front 12 Gauge Rear, Silver with Nipples | |
Tires | CST Palm Bay, 26" x 2.35" (60-559) |
Motor | Weight: 8.15 lbs (3.69 kg), Brand: Dapu M155, Type: Rear-Mounted Geared Hub, Nominal Output: 750 watts, Peak Output: 900 watts, Torque: 75 Newton meters | |
|---|---|---|
Battery | Weight: 7 lbs (3.17 kg), Brand: Samsung 18650 25E, Voltage: 48 volts, Amp Hours: 12.4 ah, Watt Hours: 595.2 wh, Chemistry: Lithium-ion | |
Display | Ariel Rider Branded APT Fixed, Monochrome, Backlit, LCD, Buttons: Power, +, -, (Double Tap Power for Settings Menu: Units, Backlight, Wheel Diameter, Voltage, Password 1919, Speed Limit, Hold + for Lights, Hold - for Walk Mode) |
