MSRP | $1,999 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | General Urban, E-Bike | |
Weight | 74.6 lbs | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Tektro Dorado Hydraulic Disc | ||
| 750W 75Nm hub-drive | ||
| 696Wh | ||
| Shimano | ||
Drivetrain | 1 × 7 | |
Brand Site | ||

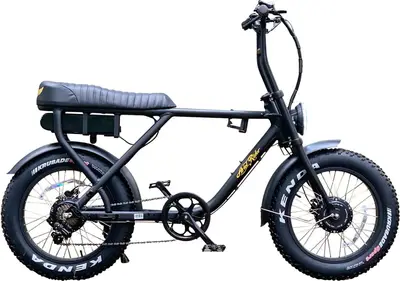

Summary | The Ariel Rider D-Class is a 20″ aluminum frame general urban e-bike with modest components and tektro dorado hydraulic disc brakes. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy, Double Heat Treated T4 and T6 for Strength | |
|---|---|---|
Fork | Rigid Aluminum Alloy Fork, Double Crown, 135mm Hub Spacing, 10mm Threaded Axle with Keyed Washers and 15mm Nuts | |
Headset | Neco, Internal Cups, Straight 1-1/8" | |
Stem | Fork-Handlebar Integrated, Aluminum Alloy, Adjustable Height, 25.4mm Cross Bar Diameter | |
Handlebar | Fork-Handlebar Integrated Aluminum Alloy, 670mm Length | |
Saddle | Custom Made, Retro Banana, Padded, Stitched, 23" Length, 7.5" Width, Faux-Leather | |
Pedals | Wellgo B087DU Aluminum Alloy Platform | |
Grips | Rubber, Flat, Non-Locking |
Crank | Prowheel, Forged Alloy, 170mm Length, 48 Tooth Steel Chainring with Plastic Guide | |
|---|---|---|
Shifters | Shimano AMFLTX50RCT SIS Index Thumb Shifter | |
Cassette | 7 Speed 1x7 Shimano Tourney TZ25007428 Derailleur, 14-28 Tooth Cassette | |
Brakes | Tektro Dorado HDE350 Hydraulic Disc with 160 Rotors, Dual Piston Calipers, Three-Finger Levers with Motor Inhibitors and Adjustable Reach Type: Tektro Dorado Hydraulic Disc |
Rims | Double Walled, Aluminum Alloy, 28 Hole, 80mm Width | |
|---|---|---|
Spokes | Stainless Steel, 12 Gauge Rear, Silver with Nipples | |
Tires | Kenda Krusade Sport K1188, 20" x 4" |
Motor | Weight: 8.15 lbs (3.69 kg), Brand: Dapu M155, Type: Rear-Mounted Geared Hub, Front-Mounted Geared Hub, Nominal Output: 750 watts (Two Motors 1,500 Watts Total), Peak Output: 900 watts (Two Motors 1,800 Watts Total), Torque: 75 Newton meters (Two Motors 150 Watts Total) | |
|---|---|---|
Battery | Weight: 8.6 lbs (3.9 kg), Brand: Samsung 18650 25E, Voltage: 48 volts, Amp Hours: 14.5 ah (Optional 17.6 ah), Watt Hours: 696 wh (Optional 844.8wh), Chemistry: Lithium-ion | |
Display | Ariel Rider Branded APT Fixed, Color, Backlit, LCD, Buttons: +, -, Power, Hold + for Lights, Hold - for Walk Mode, (Double Tap Power for Settings Menu: Language, Units, Brightness, Auto Off, Scenes Analog or Digital, Battery Indicator Voltage Off or Percentage, Power Indicator or Current, Clock, Wheel Diameter, USB Port On Off, Advanced Settings, Password 1919, Speed Limit) |
