Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Frame | Carbon | |
| Fox AWL | ||
| Fox | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Hydraulic Disc | ||
| Avinox 168W 125Nm mid-drive | ||
| Avinox 800Wh | ||
Drivetrain | ||
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 55mm | |
Brand Site | ||

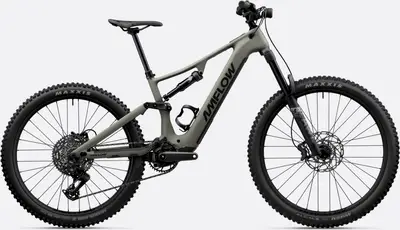

Summary | The Amflow PR Carbon is a 27.5″ carbon frame full suspension crosscountry e-bike. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Amflow PR Carbon Frame, Moss Green, 40 adjustable geometry configurations *, Compatible with 27.5″ and 29″ rear wheels, * The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage. | |
|---|---|---|
Fork | FOX AWL HD Sport, 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset Travel: 160mm Spring Type: Air | |
Shock | FOX Float Rhythm, custom tune, LSR adjustment, 210×55mm, air shock Travel: 55mm | |
Stem | Amflow Mountain Bike Split Stem, Length: 35mm, Clamping Diameter: 35mm | |
Handlebar | Amflow Enduro Alloy Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep | |
Saddle | Amflow Mountain Saddle | |
Seatpost | Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm), M Frame: 190mm, L/XL Frame: 210mm, XXL Frame: 230mm Type: Dropper | |
Grips | Amflow Enduro Grip 2 Lock-on Grips |
Brakes | Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom, Tektro Sensor Rotor (203mm, 2.3mm) Type: Tektro Hydraulic Disc |
|---|
Rims | Amflow XMA-30 Mullet Version, Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready, Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready, Spokes: SAPIM E-Light, Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt, Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG | |
|---|---|---|
Tires | Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR, Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR |
Motor | Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m, Avinox Screen: 2-inch OLED Control Display, Avinox Removable Battery: 800Wh, Avinox Wireless Controllers: Right and left sides, Avinox Charger: 4A/168W | |
|---|---|---|
Battery | Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m, Avinox Screen: 2-inch OLED Control Display, Avinox Removable Battery: 800Wh, Avinox Wireless Controllers: Right and left sides, Avinox Charger: 4A/168W |
