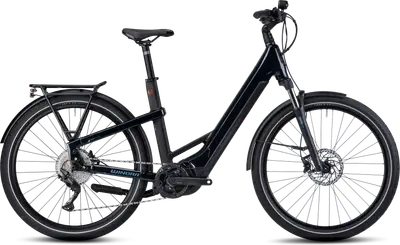

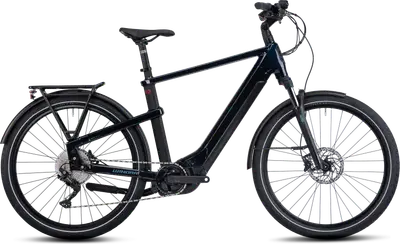

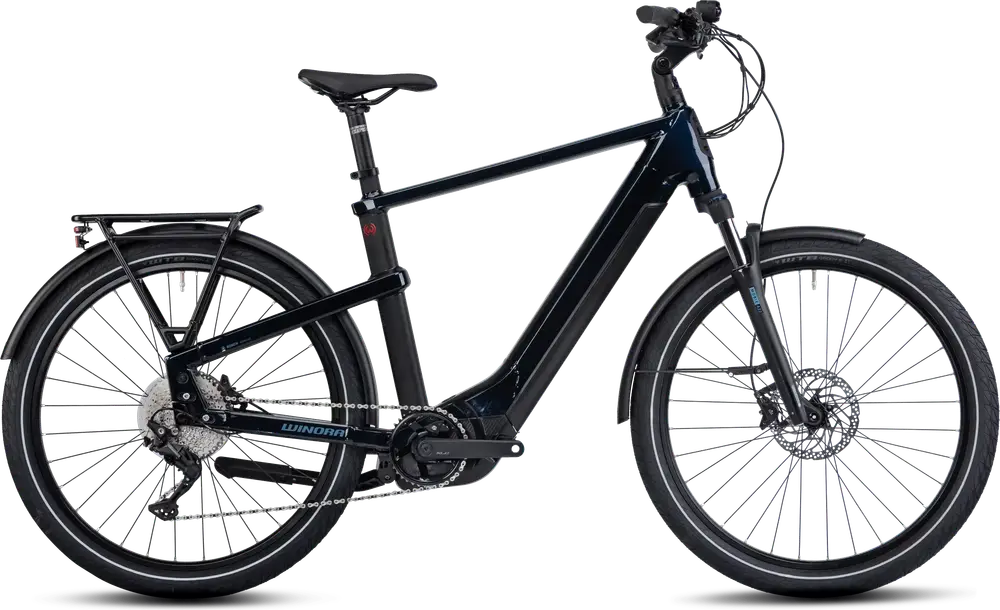

2025 Winora

Yakun 10

A 650b aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€4,299($5,002)
Price History
Weight62.8 lbs
FrameAluminum
SuspensionHardtail
ForkSuntour MOBIE
Wheels650b Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano Hydraulic Disc
View on winora.comLearn about Winora
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Yakun model range

View Comparison
Sizing
45cm

5'2" – 5'8"

50cm

5'6" – 5'11"

55cm

5'9" – 6'2"

60cm

6'0" – 6'6"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Low Aluminium Low entry

Fork

Suntour Mobie A32

Spring Type: Coil

Bottom Bracket

integrated in the motor

Headset

Feimin A-Head TaperedViscoset

Stem

Adjustable aluminium, angle ajustable

Handlebar

Ergoriser, oversize

Saddle

Selle Royal VivoErgo

Seatpost

Non Suspension

Type: Suspension

Pedals

VP 625

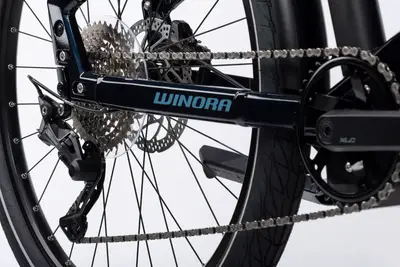

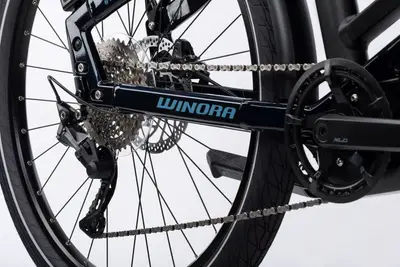

Groupset
Rear Derailleur

Shimano Deore M4120

Shifters

Shimano Deore M4100

Cassette

Shimano CSM4100

Chain

KMC Chain e10S

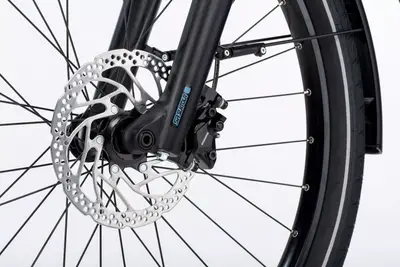

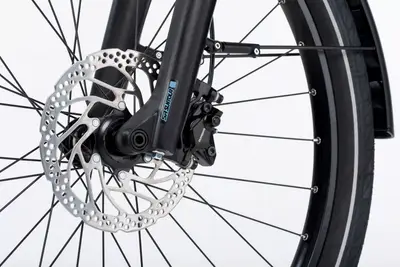

Brakes

Shimano Hydraulic Disc brake

Type: Shimano Hydraulic Disc

Wheels
Rims

Schurmann Hollow rim Yak25

Front Hub

Shimano MT400

Rear Hub

Shimano MT400

Tires

Schwalbe Al Grounder Performance 60-584

Electric Components
Motor

Bosch Performance Line CX (Smart System)

Battery

Bosch Li-ION PowerTube, Capacity: 750 Wh, Location: Powertube

Display

Bosch KIOX 300 Smart System Kiox 300 + LED Remote

Charger

Bosch quick charger 4A

Accessories
Lights

Front: Litemove SE-90, Rear: Spanninga Pimento

Fenders

Curana Apollo 65

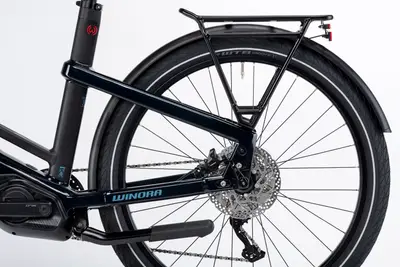

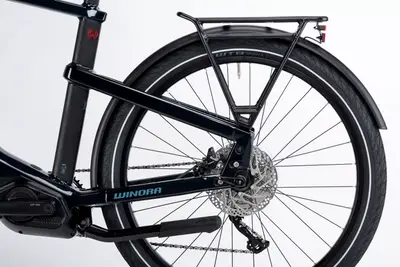

Racks

Winora MIK system carrier
