Today’s Deals2025 Winora

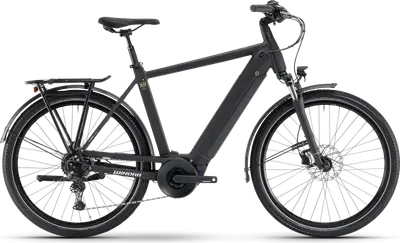

SINUS X9

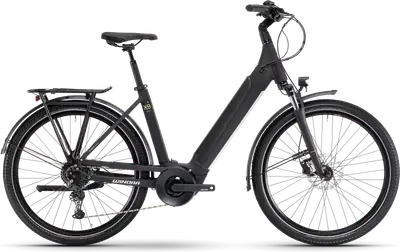

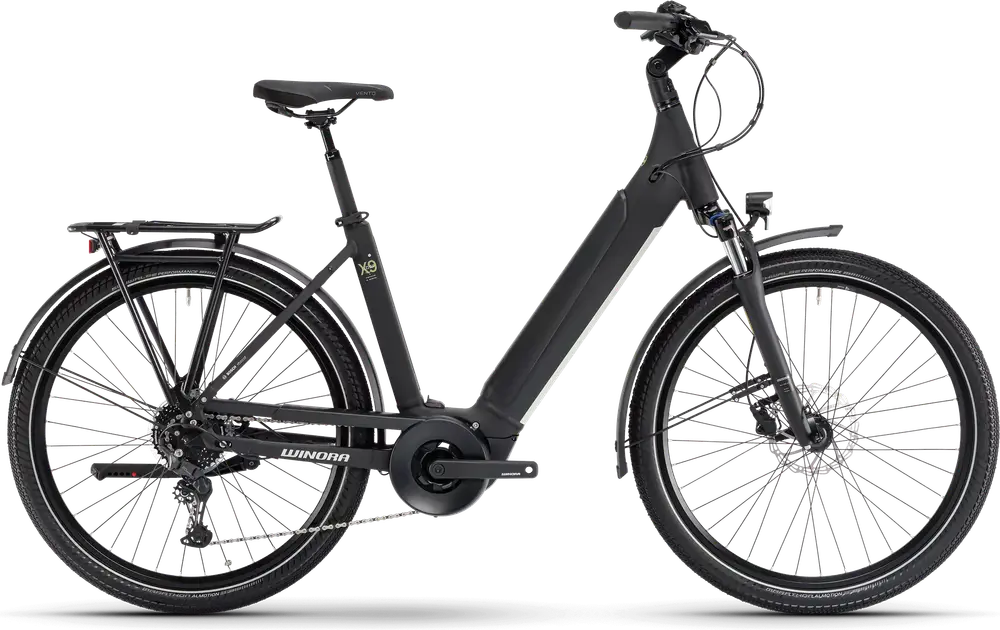

A 650b aluminum frame commuter e-bike with mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,599($4,185)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 60mm |
| Fork | Suntour NEX |
| Wheels | 650b Aluminum |
| Groupset | CUES |
| Motor | Bosch hub-drive |
| Battery | Bosch 625Wh |
| Brakes | Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full SINUS model range
View Comparison5'3" – 5'8"
5'6" – 5'11"
5'10" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

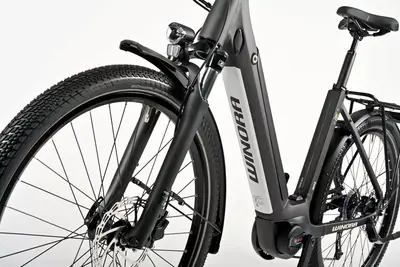

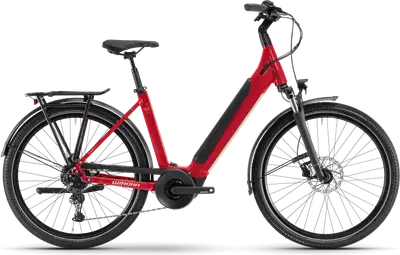

| Frame | Low Aluminium Low entry |
|---|---|

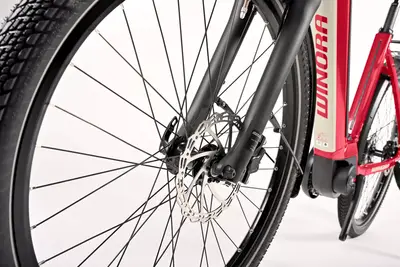

| Fork | Suntour NEX E25 60 mm Travel: 60mm Spring Type: Coil |
| Bottom Bracket | integrated in the motor |
| Headset | Cane Creek Viscoset |
| Stem | XLC Adjustable A-Head, adjustable, Dia. 31.8 mm |
| Handlebar | Winora Ergobar, oversize |
| Saddle | Selle Royal Viento |
| Seatpost | Winora Suspension Patent, Dia. 31.6 mm Type: Suspension |
| Pedals | VP E461 |

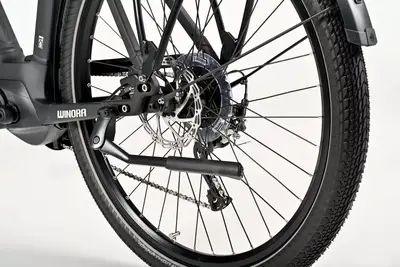

| Rear Derailleur | Shimano Cues RD-U3020, 9s |
|---|---|
| Crank | Samox aluminium crank |
| Shifters | Shimano Triggershift Cues SL-U4000-9R, Rapidfire |
| Cassette | Shimano CS-LG300-9, HG |
| Chain | Shimano Chain Cues LG500 |
| Chain Guide | Herrmans Slyde38 |

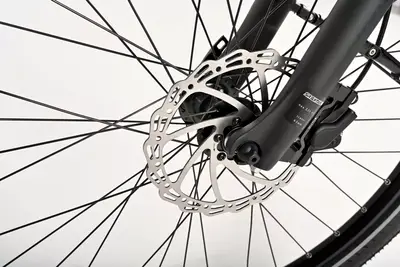

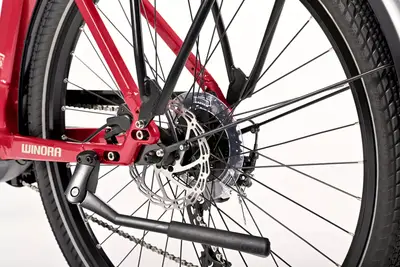

| Brakes | Alhonga Hydraulic Disc brake HT474, 180 mm Type: Hydraulic Disc |
| Rims | Ryde Hollow rim Zac421 |
|---|---|
| Front Hub | Winora alu hub |
| Rear Hub | Winora alu hub |
| Tires | Schwalbe Marathon Almotion 55-584 |
| Motor | Bosch |
|---|---|
| Battery | Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube |
| Display | Bosch Intuvia 100 + LED Remote |
| Charger | Bosch standard charger 4 Ah |
| Lights | Front: Herrmans H-Black MR-GO, 30 lux, Rear: Busch & Müller Shine Evo, integrated in the luggage carrier |
|---|---|
| Fenders | SKS Chromoplastic |

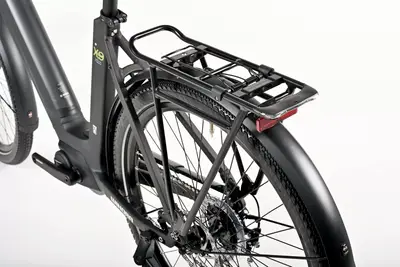

| Racks | Racktime Racktime RT-336, SnapIt |
| Lock | Abus upgradable over Plus System |
First added May 19
Last updated June 21
