Today’s Deals2025 Winora

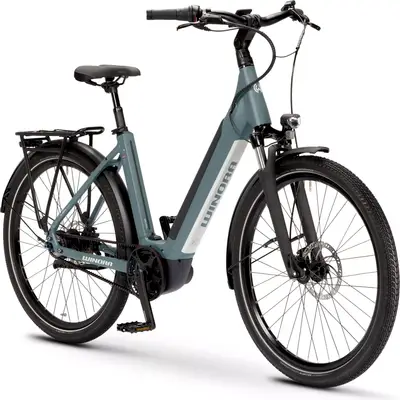

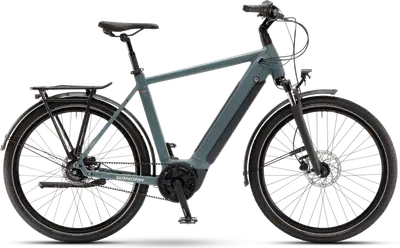

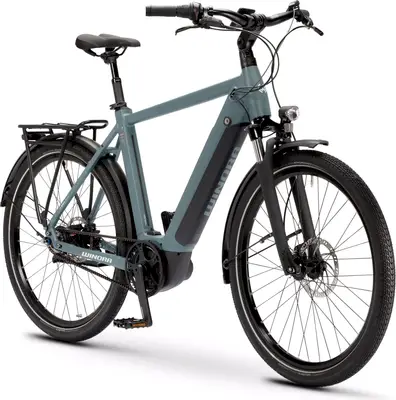

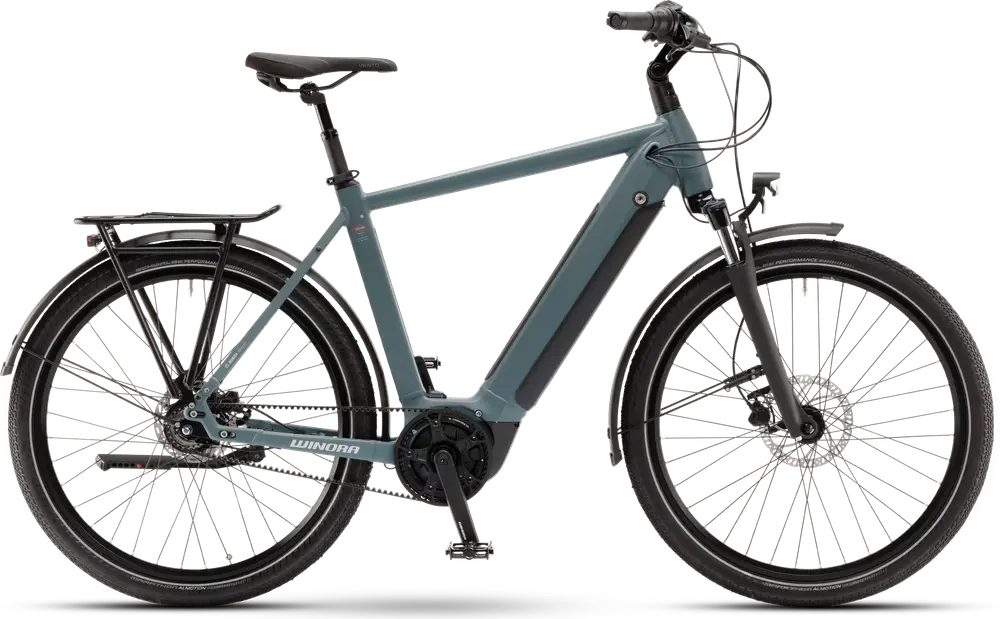

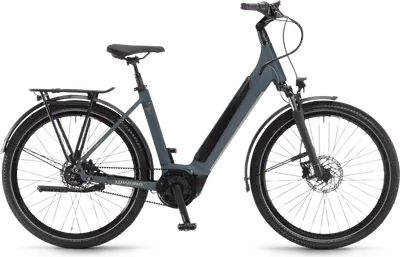

Sinus R8Ef
A 650b aluminum frame commuter e-bike with high-end components and tektro hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,699($4,302)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 60mm |
| Fork | Suntour NEX |
| Wheels | 650b Aluminum |
| Drivetrain | Belt Drive, Internally Geared Hub |
| Groupset | Gates CDC, Nexus |
| Motor | Bosch hub-drive |
| Battery | Bosch 500Wh |
| Brakes | Tektro Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full SINUS model range
View Comparison5'3" – 5'8"
5'6" – 5'11"
5'10" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Low Aluminium Low entry |
|---|---|
| Fork | Suntour NEX E25 60 mm Travel: 60mm Spring Type: Coil |
| Headset | Cane Creek Viscoset ZS44 + Feimin ZS56 |
| Stem | XLC Adjustable ST99A-1, Dia. 31.8 mm, L: 80 mm |
| Handlebar | JD TR25AL Dia. 31.8 mm, Rise: 25 mm |
| Saddle | Selle Royal Viento |
| Seatpost | XLC Suspension Harmony-LT2, Dia. 31.6 mm, Tavel: 300 mm Type: Suspension |
| Pedals | VP VPE-461 MTB Alloy Pedal w. Reflector |

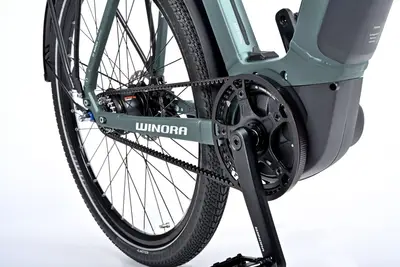

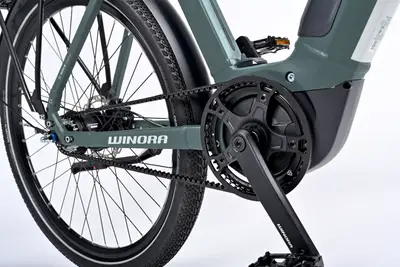

| Crank | Samox EC37A-F5-BNI Cranks 170 mm + GATES CDC Chainwh. |
|---|---|
| Shifters | Shimano Gripshift Nexus SL-C6000-8R |
| Cassette | Gates Carbon Drive CDC Sprocket |
| Chain | Gates Belt Carbon Drive Belt CDC, 125T |

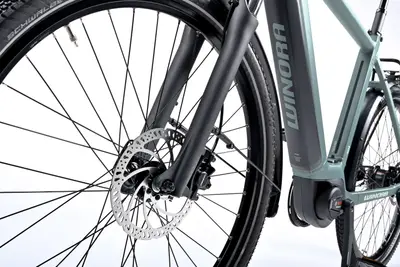

| Brakes | Tektro Hydraulic Disc brake HD-T275, 180 mm Type: Tektro Hydraulic Disc |
| Rims | Ryde Hollow rim Zac421 36H |
|---|---|
| Front Hub | VP Modus JA159F QRx100 mm, 36H, 6 Bolt Disc |

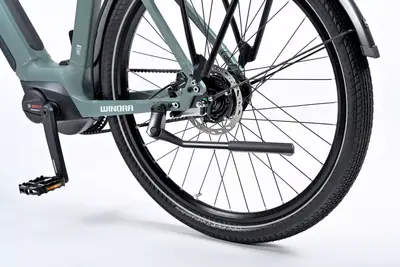

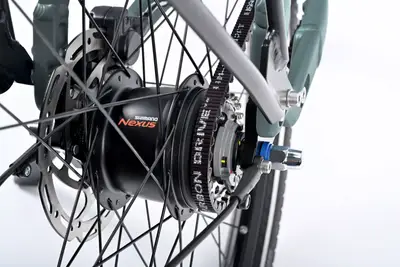

| Rear Hub | Shimano Nexus SG-C6001-8D, QRx135 mm, 36H, Centerlock |
| Tires | Schwalbe Marathon Almotion REF 55-584 |
| Motor | Bosch |
|---|---|
| Battery | Bosch Li-ION InTube 500 Wh, Capacity: 500 Wh, Location: Powertube |
| Display | Bosch Intuvia 100 + LED Remote |
| Charger | Bosch Charger 2A |

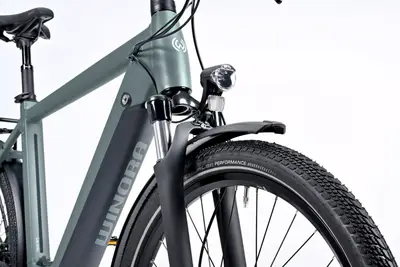

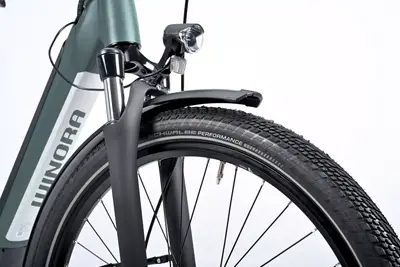

| Lights | Front: Herrmans MR5, 6-12V, Rear: AXA Juno Ebike, 6-12V |
|---|---|
| Fenders | SKS CAB B60 length 1160 |

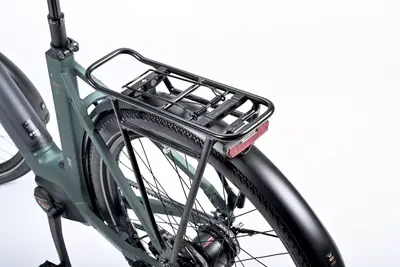

| Racks | Racktime Racktime RT-336, SnapIt |
| Lock | Abus Ring lock upgradable over Plus System |
