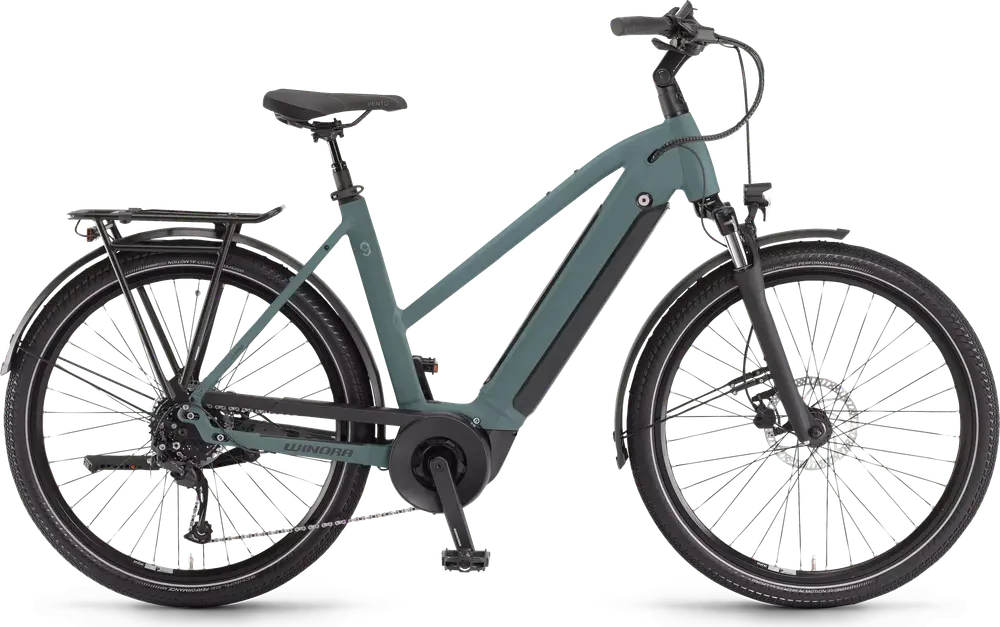

Today’s Deals2025 Winora
Sinus 9

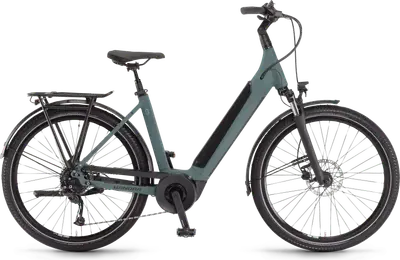

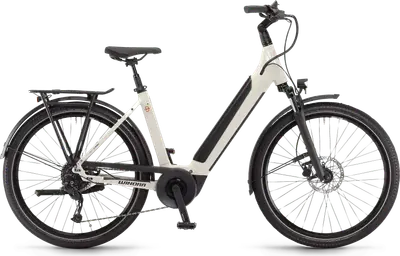

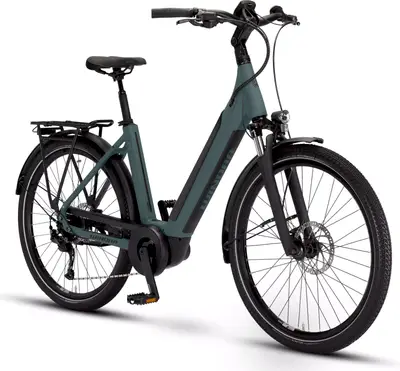

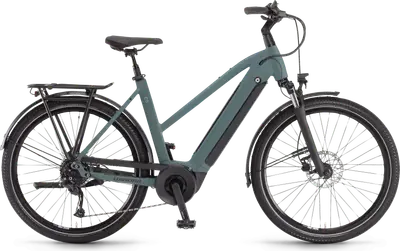

A 650b aluminum frame commuter e-bike with mid-range components and tektro hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,599($4,185)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail |
| Fork | Suntour NEX |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | Alivio |
| Motor | Bosch 600W 63Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Tektro Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full SINUS model range
View Comparison5'3" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Low Aluminium Damesmono |
|---|---|

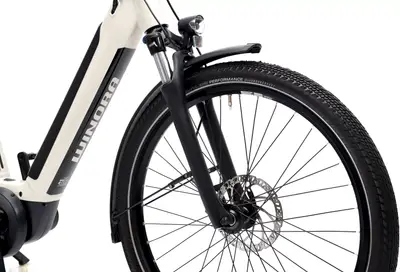

| Fork | Suntour NEX E25-HLO Spring Type: Coil |
| Bottom Bracket | integrated in the motor |
| Headset | Feimin A-Head Tapered |
| Stem | Adjustable Alu, winkelverstellbar |
| Handlebar | Ergobar, oversize |
| Saddle | Selle Royal Viento |
| Seatpost | Suspension Type: Suspension |
| Pedals | VP E461 |

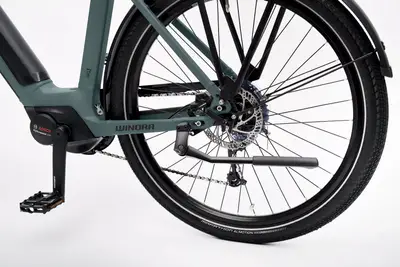

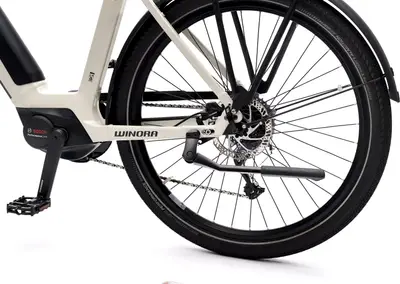

| Rear Derailleur | Shimano Alivio M3100 |
|---|---|
| Shifters | Shimano Alivio M3100 |
| Cassette | Shimano HG200 |
| Chain | KMC Chain e9S |
| Chain Guide | Herrmans Slyde38 |
| Brakes | Tektro Hydraulic Disc brake T275 Type: Tektro Hydraulic Disc |
| Brake Levers | Tektro T275 |
| Rims | Ryde Hollow rim Zac421 |
|---|---|
| Front Hub | alu hub |
| Rear Hub | alu hub |
| Tires | Schwalbe Marathon Almotion 55-584 |
| Motor | Bosch Performance Line Performance Line |
|---|---|
| Battery | Bosch Li-ION, Capacity: 625 Wh, Location: Powertube |
| Display | Bosch Intuvia Intuvia |
| Charger | Bosch quick charger 4A |
| Lights | Front: Herrmans H-Black MR4, Rear: Busch & Müller Shine Evo, integrated in the luggage carrier |
|---|---|
| Fenders | SKS |

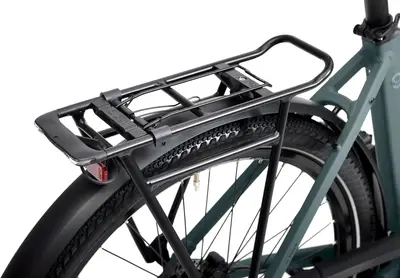

| Racks | Racktime RT-336 |
| Lock | Abus Ring lock upgradable over Plus System |
