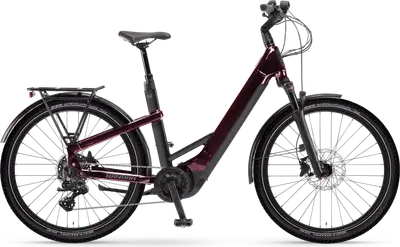

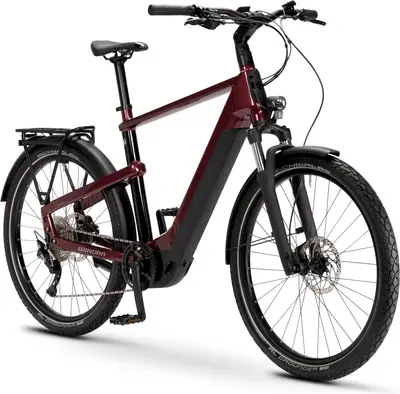

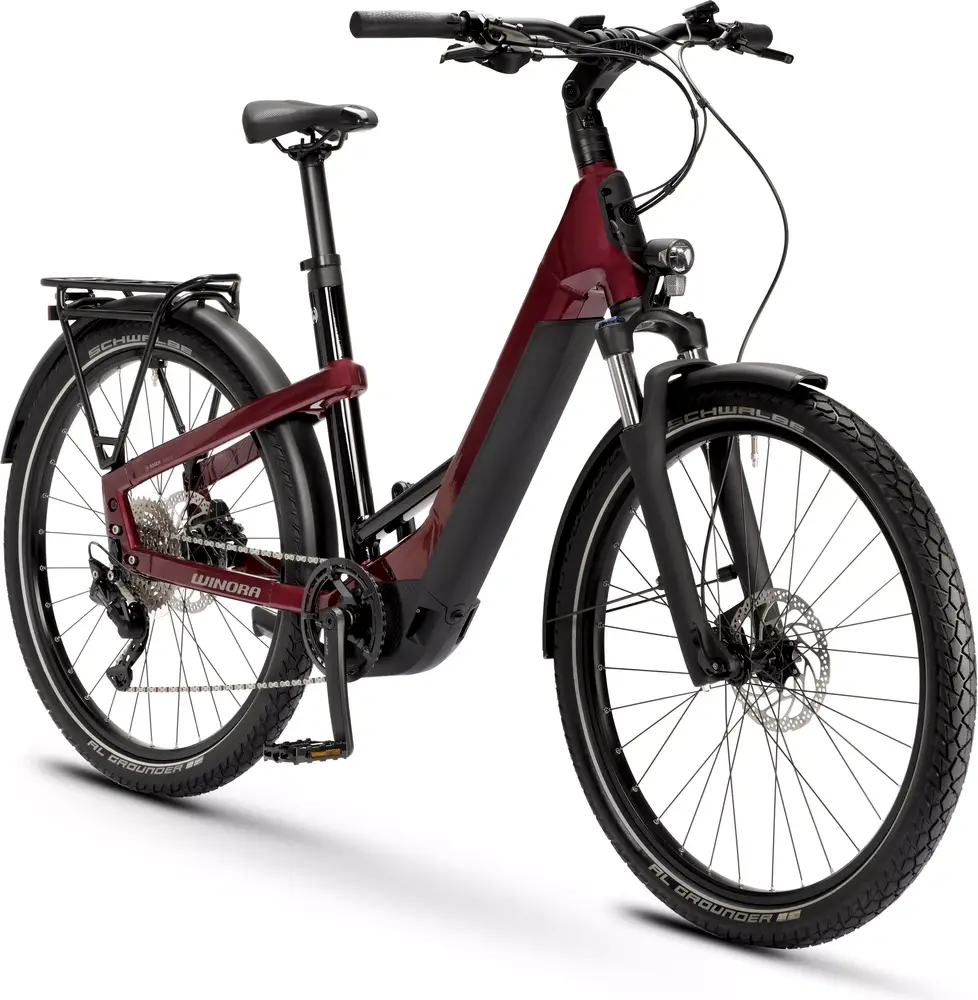

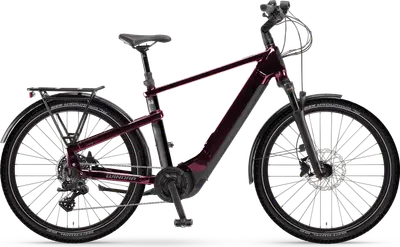

2024 Winora
Yakun X10E
A 650b aluminum frame commuter e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,699($4,064)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 80mm |
| Fork | Suntour XCM |
| Wheels | 650b Aluminum |
| Groupset | microSHIFT Advent X |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Yakun model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'9" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | High Aluminium Unisex Color: Darkred |
|---|---|

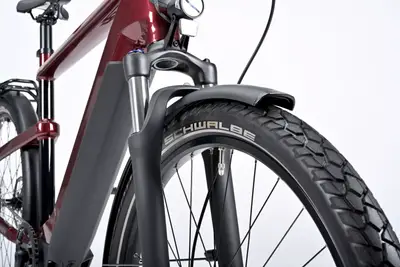

| Fork | Suntour Suspension XCM32 ATB NLO DS Travel: 80mm Spring Type: Coil |
| Bottom Bracket | integrated in the motor |
| Headset | Feimin FP-H858 |
| Stem | JD Adjustable ST99A XLC |
| Handlebar | JD MTB502A |
| Saddle | Selle Italia Vivo |
| Seatpost | JD Non Suspension Type: Suspension |
| Pedals | VP E461 |

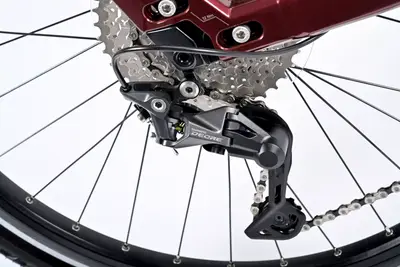

| Rear Derailleur | MicroSHIFT Advent X M6205 |
|---|---|
| Crank | Miranda single Virage |
| Shifters | MicroSHIFT Triggershift Advent X M9505-R |
| Cassette | MicroSHIFT CS-H104 |
| Chain | Shimano Chain e10S |
| Chain Guide | Nylon directmount |
| Brakes | Shimano Hydraulic Disc brake Type: Hydraulic Disc |
| Brake Levers | Shimano, MT402, Aluminium, |
| Rims | Schürmann Hollow rim Yak25 |
|---|---|
| Spokes | Sapim, Leader, Black |
| Front Hub | Formula aluminium hub |
| Rear Hub | Shimano FH-TC500-HM |
| Tires | Schwalbe Al Grounder Performance 60-584 |
| Motor | Bosch Performance Line CX (Smart System) |
|---|---|
| Battery | Bosch Li-ION PowerTube, Capacity: 625 Wh, Location: Downtube |
| Display | KIOX 300 Smart System |
| Charger | Bosch Quick Charger 4A |
| Lights | Front: Herrmans H-Black MR8 E, Rear: Spanninga Pimento |
|---|---|
| Fenders | Curana Apollo 65 |

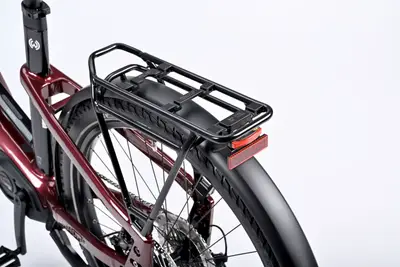

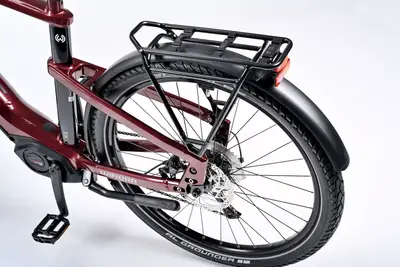

| Racks | Winora MIK system carrier |
| Lock | Abus Ring lock upgradable over Plus System |
Last updated June 10
