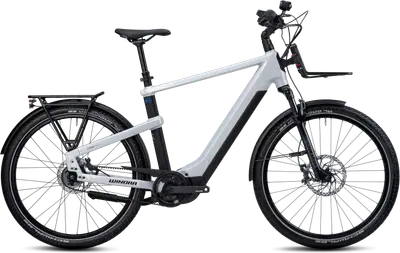

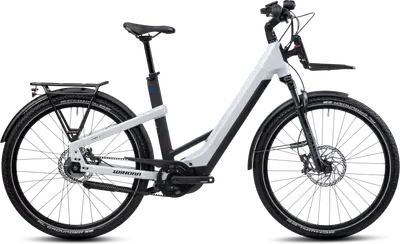

2024 Winora
Yakun R5 Pro
A 650b aluminum frame commuter e-bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
€4,999($5,493)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 80mm |
| Fork | RockShox Recon Silver RL |
| Wheels | 650b Aluminum |
| Drivetrain | Belt Drive, Internally Geared Hub |
| Groupset | Nexus |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Yakun model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'9" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Uni Aluminium Unisex Color: Ice |
|---|---|
| Fork | Rockshox Suspension Recon RL Travel: 80mm |
| Bottom Bracket | integrated in the motor |
| Headset | Feimin A-Head TaperedViscoset |
| Stem | Adjustable aluminium, angle ajustable |
| Handlebar | Ergoriser, oversize |
| Saddle | Selle Royal VivoErgo |
| Seatpost | Haibike Dropperpost Type: Dropper |
| Pedals | VP 625 |
| Grips | Herrmans, Click Ergo - lock on grips |
| Crank | Samox single EC37A-F9-ISIS 170mm |
|---|---|
| Shifters | Shimano Nexus |
| Cassette | Gates sprocket |
| Chain | Gates Belt CarbonDrive |
| Brakes | Shimano Deore XT M8120 Type: Hydraulic Disc |
| Brake Levers | Shimano, XT T8100, Aluminium |
| Rims | Schürmann Hollow rim Yak25 |
|---|---|
| Spokes | Sapim, Leader |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano Nexus |
| Tires | Schwalbe Al Grounder Performance 60-584 |
| Motor | Bosch Performance Line CX (Smart System) |
|---|---|
| Battery | Bosch Li-ION PowerTube, Capacity: 750 Wh, Location: Powertube |
| Display | KIOX 300 Smart System |
| Charger | Bosch quick charger 4A |
| Lights | Front: Litemove AE-130, Rear: Spanninga Pimento |
|---|---|
| Fenders | Curana Apollo 65 |
| Racks | Winora MIK system carrier |
Last updated June 10
