2024 Winora
Tria X9

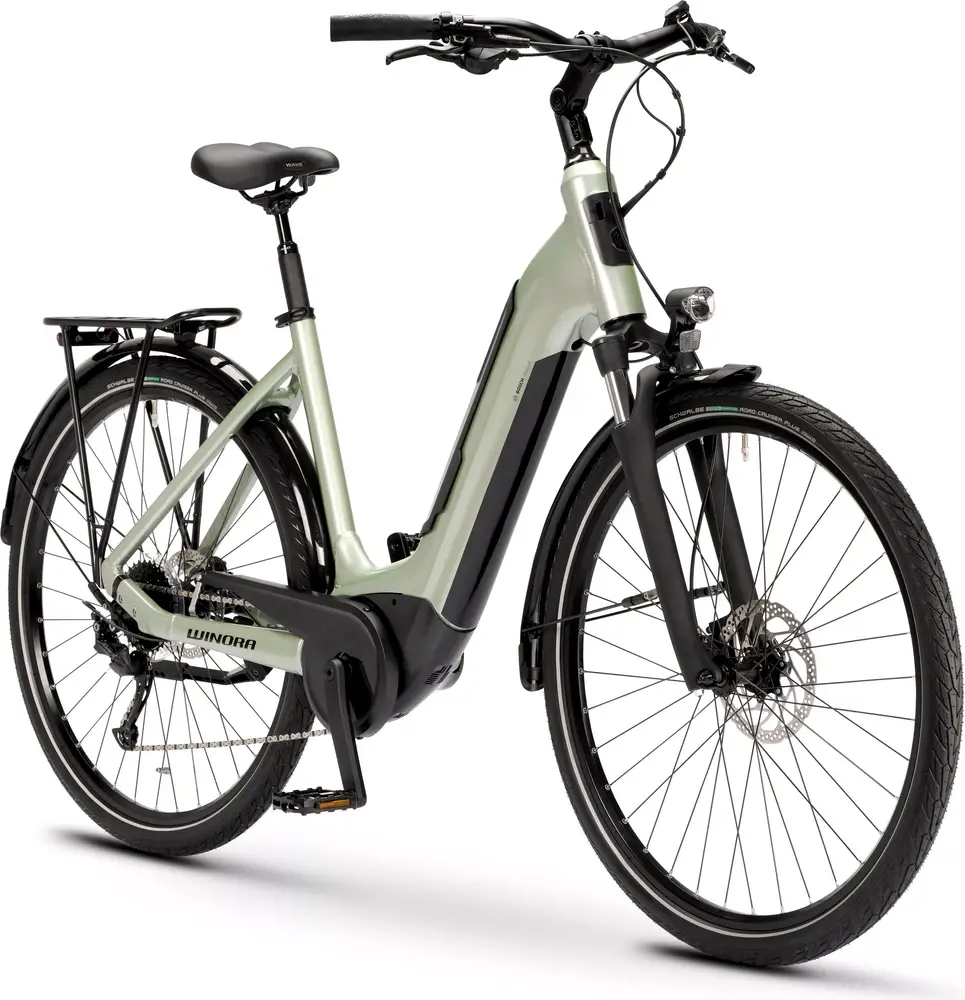

A 29″ aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€2,999($3,489)

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Tria model range

Geometry

Specs

Build

Frame	Low Aluminium Uni Colors: Ice; Peppermint
Fork	Rst Volant 28 60 mm Travel: 60mm Spring Type: Coil
Bottom Bracket	integrated in the motor
Headset	VP J213PE ID44/55BL
Stem	JD Adjustable ST243A-2, Dia. 31.8 mm, L: 85 mm
Handlebar	JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Saddle	Selle Royal Wave
Seatpost	Satori Suspension Harmony-LT2, Dia. 31.6 mm, Tavel: 350 mm Type: Suspension
Pedals	VP VPE-461 MTB Alloy Pedal w. Reflector

Groupset

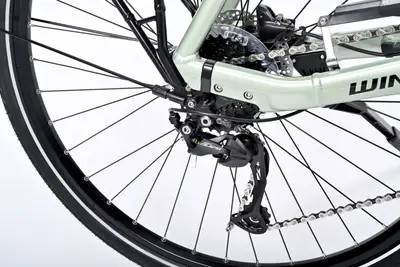

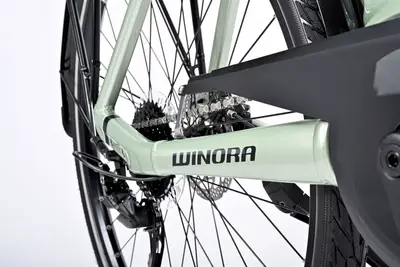

Rear Derailleur	Shimano Cues RD-U3020, 9s, Shadow+
Crank	Samox EC37A-F9-BNI Crankarm 170 mm + Chainring
Shifters	Shimano Triggershift Cues SL-U4000-9R, Rapidfire+
Cassette	Shimano Cues CS-LG300-9, HG
Chain	Shimano Chain Cues LG500 9s
Chain Guide	SKS Chainbow-E 38T

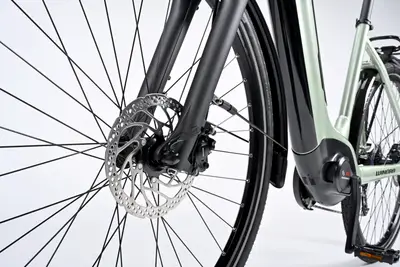

Brakes	Shimano Hydraulic Disc brake Type: Shimano Hydraulic Disc
Brake Levers	Shimano, MT201, Aluminium,

Wheels

Rims	Ryde Hollow rim Eco21
Spokes	Sapim, Leader, Black
Front Hub	Shimano HB-QC300 QR, 9 x 100 mm, Centerlock
Rear Hub	Shimano HB-QC300 QR, 10 x 135 mm, Centerlock
Tires	XLC Traverse CTC 50-622

Electric Components

Motor	Bosch
Battery	Bosch Li-ION InTube 500 Wh, Capacity: 500 Wh, Location: Powertube
Display	Bosch Intuvia 100 + LED Remote
Charger	Bosch Charger 4A

Accessories

Lights	Front: Herrmans MR5, 6-12V, Rear: AXA Juno Ebike, 6-12V
Fenders	EuroFender Tempo 28" 58 mm

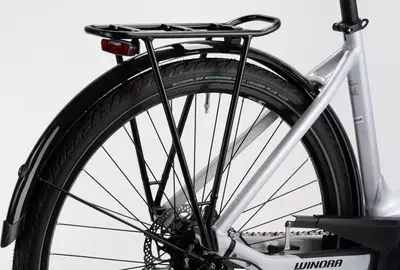

Racks	Winora MIK system carrier
Lock	Abus Ring lock upgradable over Plus System
