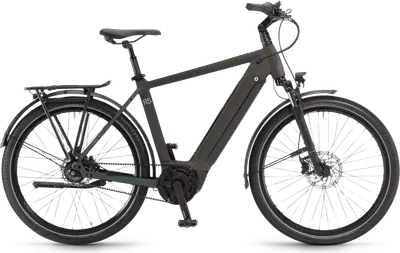

2024 Winora

Sinus R5f

A 650b aluminum frame commuter e-bike with high-end components and shimano hydraulic disc brakes.

Manufacturer Price

€3,999($4,651)
FrameAluminum
SuspensionHardtail, 60mm
ForkSuntour NEX
Wheels650b Aluminum
DrivetrainBelt Drive, Internally Geared Hub
GroupsetGates CDC, Nexus
MotorBosch hub-drive
BatteryBosch 625Wh
BrakesShimano Hydraulic Disc
View on winora.comLearn about Winora
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry
Specs
Build
Frame

High Aluminium Uni

Color: Peat Matt

Fork

Suntour NEX E25 60 mm

Travel: 60mm

Spring Type: Coil

Bottom Bracket

integrated in the motor

Headset

Feimin FP-H858 ZS56

Stem

XLC Adjustable ST99A-1, Dia. 31.8 mm, L: 80 mm

Handlebar

JD TR25AL Dia. 31.8 mm, Rise: 25 mm

Saddle

Selle Royal Viento

Seatpost

XLC Suspension Harmony-LT2, Dia. 31.6 mm, Tavel: 300 mm

Type: Suspension

Pedals

VP VPE-461 MTB Alloy Pedal w. Reflector

Groupset
Crank

Samox EC37A-F5-BNI Cranks 170 mm + GATES CDC Chainwh.

Shifters

Shimano Gripshift Nexus SL-C7000-5R

Cassette

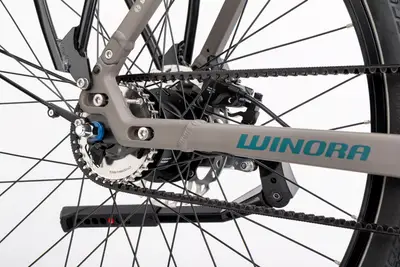

Gates Carbon Drive CDX Sprocket

Chain

Gates Belt Carbon Drive Belt CDC, 125T

Chain Guide

Nylon directmount

Brakes

Shimano Hydraulic Disc brake

Type: Shimano Hydraulic Disc

Brake Levers

Shimano, MT402, Aluminium,

Wheels
Rims

Ryde Hollow rim Zac421 36H

Spokes

Sapim, Leader, Black

Front Hub

Formula CL51 QR, 9 x 100 mm, Centerlock

Rear Hub

Shimano Nexus SG-C7000-5c, 10x135 mm, Centerlock

Tires

Schwalbe Marathon Almotion REF 55-584

Electric Components
Motor

Bosch

Battery

Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube

Display

Bosch Intuvia 100 + LED Remote

Charger

Bosch Charger 4A

Accessories
Lights

Front: Herrmans MR5, 6-12V, Rear: Herrmans integrated in the fender

Fenders

SKS CAB B60 length 1160

Racks

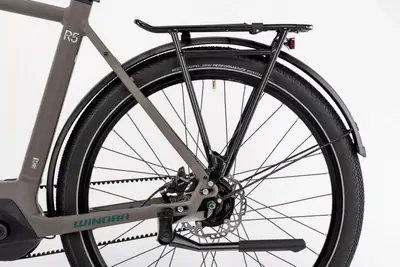

Racktime Racktime RT-336, SnapIt

Lock

Abus Ring lock upgradable over Plus System
