SRAM Rival, 180mm CentreLine Rotor, Centre Lock

SRAM Rival 1 Wide, 38T, DUB, 50/52 170mm, 54 172.5mm, 56/58 175mm 12 Speed

Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing

Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key

Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm

FSA No. 42, Integrated Road, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole

Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole

Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design

Trans-X YSP38 dropper post, 27.2mm, 50/52/54 70mm Travel, 56 90mm Travel, 58 110mm Travel, Control Lever

DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 50/52cm 60mm, 54cm 70mm, 56/58cm 80mm, Extension

Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound

Ride Without BoundariesOur Gisburn is perfect if you’re looking for a gravel bike that’s fun, versatile, and will push the limits of what you can do off-road on a drop-barred bike: it's the ultimate expression of the no-limits drop-bar adventure bike philosophy we started developing over a decade ago. Delivering you incredible comfort, control, and capability on every surface, gravel is just the start of where our flagship explorer can take you.
Highlights— Lightweight 6061 T6 hydroformed, multi-butted alloy Single Chain Ring (1X) specific frame— Full carbon tapered straight blade fork— SRAM Rival XPLR eTAP AXS wireless shifting + hydraulic disc brakes— 1x12, wide-range transmission (38T chainring x 10-44T XPLR cassette)— Remote-controlled dropper post— Clearance for up to 700x50mm rear + 29x2.0in front tyres
Why GisburnLight yet tough, lively yet surefooted, fast on the road and fun in the woods, we’ve engineered the Gisburn with a unique blend of our mountain bike (MTB) and road innovations, combined with a perfect balance of tough and tech equipment. The Gisburn’s longer-reach alloy frame, short stem and wider, riser bar – together with the trail buzz-reducing carbon fork – boost comfort and confidence, while the custom offset fork keeps the Total Geometry steering fresh, light and naturally balanced without the flop and wander of a slack head angle. The result isn’t just on-trail confidence, but a neutral and natural steering feel on road, too. That’s true whether you’re riding technical trails or loaded with bike-packing gear.
Plus, if you want to push your riding even further off-road – or tailor your ride for a variety of different uses – the frame will take up to a 700x50mm tyre in the rear and up to a 29x2.0in tyre up front for a massive grip, comfort and confidence boost through all weathers.
Features & EquipmentBecause a gravel bike can do so much it can be hard to know what equipment works best. That’s why we’ve done the thinking and test riding for you and loaded the Gisburn with every advantage possible: the latest extra-wide range SRAM XPLR eTap AXS wireless gearing for fast, precise and reliable shifting – even through the worst conditions – to conquer any climb; custom-shaped, compact drop flared and shaped bars for perfectly confident and comfortable control; tough, wide Easton tubeless rims with supple yet grippy large volume Maxxis tyres; as well as SRAM Rival hydraulic disc brakes with a larger 180mm front rotor give you maximum braking control. We even fitted a dropper post as standard so your saddle won’t get in the way of confident control and rider balance – perfect for when chasing those singletrack thrills or when tackling the rougher end of the gravel spectrum suddenly gets steep and techy.
Add in weather-sealed cable ports, masses of mud clearance around 700x45mm tyres to ensure bad weather will never hold you back, as well as frame and fork mounting points to take a full set of bike packing gear or conventional pannier racks, the only limit on how far you can go with the Gisburn is your imagination.

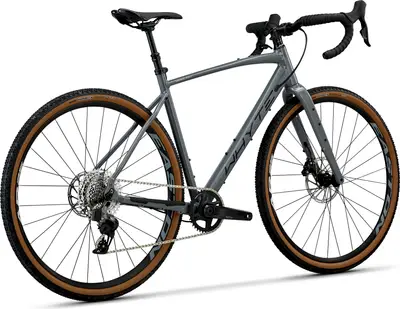

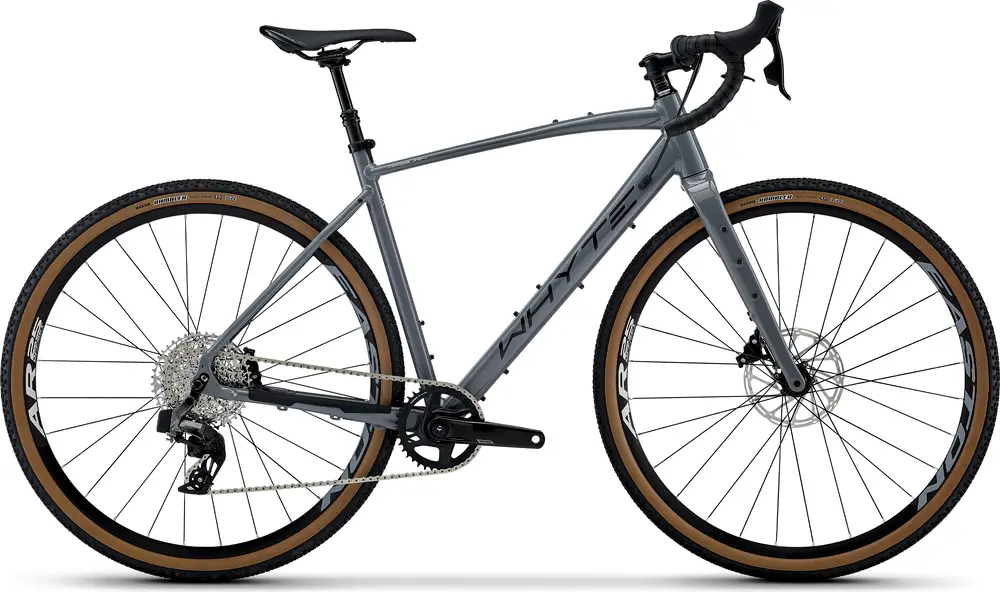

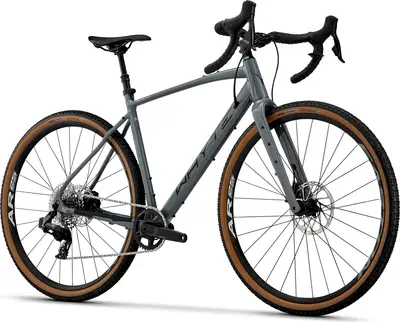

Whyte Gisburn

50cm

52cm

54cm

56cm

58cm

An aluminum frame gravel bike with upper mid-range components and sram rival hydraulic disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 12 Electronic
Groupset	Rival XPLR AXS, Rival AXS
Brakes	SRAM Rival Hydraulic Disc
Seatpost	Dropper

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing BB Standard: BSA, 73mm, Threaded Tire Clearance: 50c

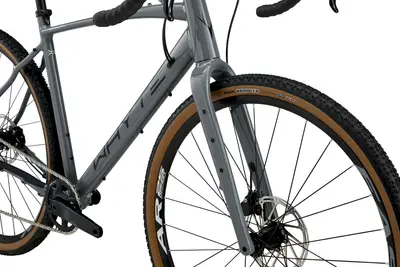

Fork	Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	SRAM DUB, BSA, 73mm
Headset	FSA No. 42, Integrated Road, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 50/52cm 60mm, 54cm 70mm, 56/58cm 80mm, Extension
Handlebar	Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
Saddle	Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost	Trans-X YSP38 dropper post, 27.2mm, 50/52/54 70mm Travel, 56 90mm Travel, 58 110mm Travel, Control Lever Type: Dropper
Pedals	None
Grips	Whyte Anti Slip, Cross Bar Tape

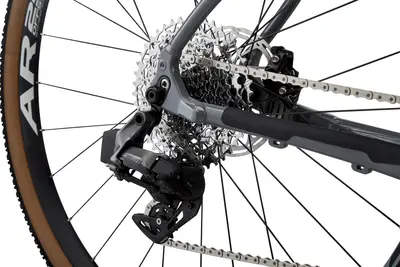

Rear Derailleur	SRAM Rival XPLR eTap AXS
Front Derailleur	N/A
Crank	SRAM Rival 1 Wide, 38T, DUB, 50/52 170mm, 54 172.5mm, 56/58 175mm 12 Speed
Shifters	SRAM Rival eTAP AXS
Cassette	SRAM XG1251, XPLR, 10-44
Chain	SRAM Rival
Brakes	SRAM Rival, 180mm CentreLine Rotor, Centre Lock Type: SRAM Rival Hydraulic Disc
Brake Levers	SRAM Rival

Rims	Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
Spokes	DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key
Rear Hub	Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole
Tires	Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound

2023 WhyteGisburn

2023 Whyte
Gisburn
