Today’s Deals2023 Whyte

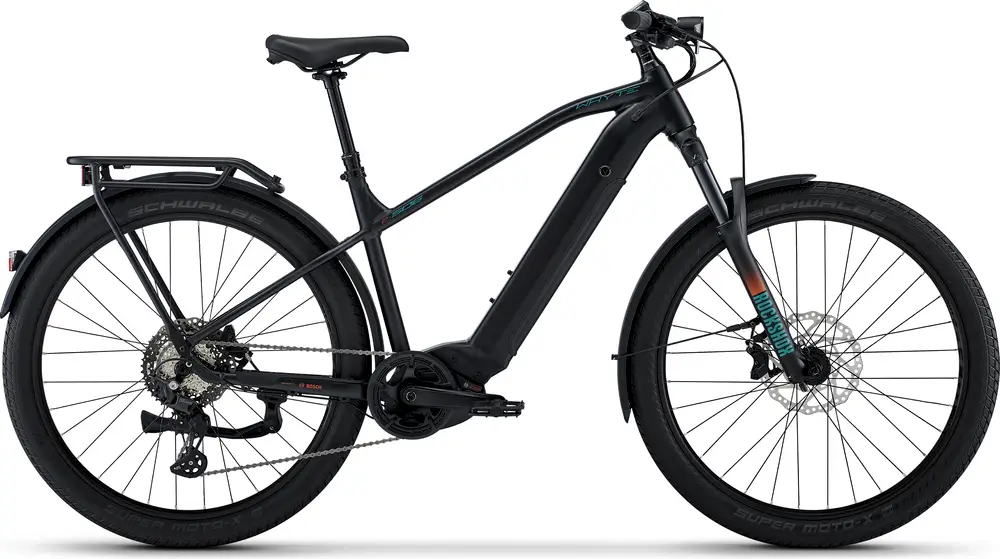

E-506 SUV
A 650b aluminum frame commuter e-bike with upper mid-range components and tektro orion hydraulic disc brakes.
Compare the full range
Manufacturer Price
£3,599($4,827)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 120mm |
| Fork | RockShox 35 Silver |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Tektro Orion Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts |
|---|---|
| Fork | RockShox 35 Silver R 27.5"", 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite Travel: 120mm Spring Type: Coil |
| Shock | N/A |
| Bottom Bracket | N/A |
| Headset | FSA No. 57B Orbit ZS, 1 1/2"" Lower and 1 1/8"" Upper Caged Bearings |
| Stem | Whyte Alloy 6061, 60mm Extension |
| Handlebar | Whyte 6061 Alloy, 25mm Rise, 31.8mm, 720mm Wide |
| Saddle | Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle |
| Seatpost | Whyte drop.it, 30.9, S 125mm, M/L/XL 150mm Travel, Paddle Remote Lever Type: Dropper |
| Pedals | None |
| Grips | Whyte Custom Dual Density Lock-on |

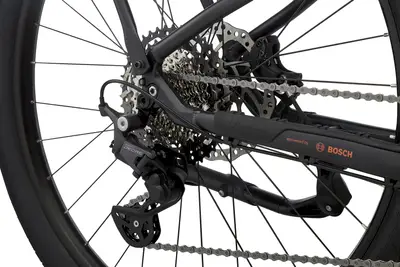

| Rear Derailleur | Shimano M5130 Deore, GS, 10 Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Whyte, Steel narrow/wide, 160mm, Direct Mount 38T for Bosch Performance Line CX, Black |
| Shifters | Shimano M5130 Deore 10 Speed |
| Cassette | Shimano CS-LG600, 10 Speed, 11-43 |
| Chain | Shimano CN-LG500, 10 Speed |
| Brakes | Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount Type: Tektro Orion Hydraulic Disc |
| Brake Levers | Tektro Orion |
| Rims | WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole |
|---|---|
| Spokes | DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples |
| Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole |
| Rear Hub | Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole |
| Tires | Schwalbe, Super Moto-X, 27.5"" x 2.4, Greenguard Puncture Protection |
| Motor | Bosch Performance Line CX (25km/h) 85Nm |
|---|---|
| Battery | Bosch Power Tube PT500 Horizontal |
| Display | Bosch Purion Performance Line |
