Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount

Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black

RockShox 35 Silver TK 27.5", 120mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts

Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole

Whyte 6061 Alloy, XS and S 15mm Rise, 31.8mm, 760mm, M 30mm Rise, 31.8mm, 780mm Wide

FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings

Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole

WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte drop.it, 30.9, XS 100mm, S 125mm, M 150mm Travel, Paddle Remote Lever

DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples

Maxxis Forekaster TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection

Amplify Your FunThe E-504 electric hardtail offers the same exceptional ride as our E-505 electric hardtail but runs on smaller 27.6in wheels with a more compact frame and smaller XS, S and M size options so that smaller riders don’t have to compromise their off-road experience – or their expectations. Stylishly rugged looks and top quality ‘real off road’ components truly make the E-504 the highly capable Land Rover Defender of e-bikes. Whether you want to ride with friends, stay fit and healthy, explore the countryside, or get the blood pumping pushing your limits, our E-504 electric assist mountain bike is the perfect off-road partner to do it all. With its mix of easy speed and long-range freedom together with the confidence to explore everywhere, it makes any surface from road to forest trails huge fun while taking the worry out of hills and long distances. Highlights– Perfect for smaller riders with XS, S, and M compact frame sizes– A highly capable and confident-inspiring ride– Light and robust 6061 T-6 aluminum frame– Powerful and reliable Bosch Performance Line CX 85Nm motor– Large capacity Bosch PowerTube 500Wh removable battery– Agile 27.5in (aka ‘640b’) wheels + high volume Maxxis tyres– Fast-shifting and durable 1x11 SRAM transmission (36T chainring x 11-42T cassette)– Powerful four-piston hydraulic disc brakes for reliable all-weather braking Why E-504?The E-504 takes all that we know about exceptional mountain bike hardtail geometry and adds a powerful and reliable Bosch motor, battery and controls to give you a huge range of everyday use – from trail riding to commuting, or both in one day – together with a confident-inspiring ride feel.Our E-504 electric mountain bike is designed by the same team as our award-winning conventional mountain bikes and benefits from all their knowledge and riding experience. The same handling genius that our designers use to win national championships is what’ll make you feel totally in control on slippery, bumpy tracks or zooming down a gravel descent in the forest. The upright position and wide bars make just as much sense for cruising back country lanes, short cutting through town or just making the most of the views this bike can take you to. The powerful, premium Bosch motor will have got you to the top of that hill with effortless ease and the Purion handlebar display will tell you clearly how far you’ve still got to enjoy and explore. Intelligent motor modes give the best possible range from the big 500Wh battery for hours of adventures. Fitting the battery inside the super tough, mountain bike frame keeps it sealed, safe and sleek but it’s easy to remove for charging inside. The frame mounted motor means perfect handling balance and the smoothest ride and just like the internally routed controls it’s fully protected from the weather. Legendary Bosch reliability means you’ll never miss a ride or worry about getting home either.Features & EquipmentWhile the E-504 is super easy to ride whatever your biking experience it’s fully ready to back up your bravest moves too. Rolling on agile and capable 27.5in wheels that help keep the riding experience in proportion for smaller riders, we’ve dressed the wide wheel rims with high-volume 27.5x2.6in Maxxis tyres to deliver great grip and comfort off-road. RockShox suspension is the original and best and the SRAM gears are super simple to use whether you need a winch for silly uphills or warp speed down the other side. Four piston disc brakes with oversized rotors guarantee safety whatever the weather too.Looking for the same ride feel but need a larger L or XL frame size, or a longer reach across a size M? Look at our E-505 e-hardtail with its larger 29in wheels. //insert hyperlink//All our electric assist off road bikes, from the big wheeler E-505 to the E-506 SUV //insert link// come with a remote-controlled dropper seat post as standard. This lets you lower the saddle with a switch on the handlebars so you can stop or start with both your feet flat on the floor. It also makes getting on and off the bike easier wherever you are too and even helps when you’re riding by the seat of your pants on trickier trails. That’s why we guarantee if you were wondering why we fit one at first, you’ll soon be wondering how you ride a bike without one.
e-BIKE SPECIFIC SPECIFICATION
DRIVE UNIT
Performance CX 85Nm
BATTERY CHARGER
2 Amp
BATTERY
500Wh
DISPLAY
Purion

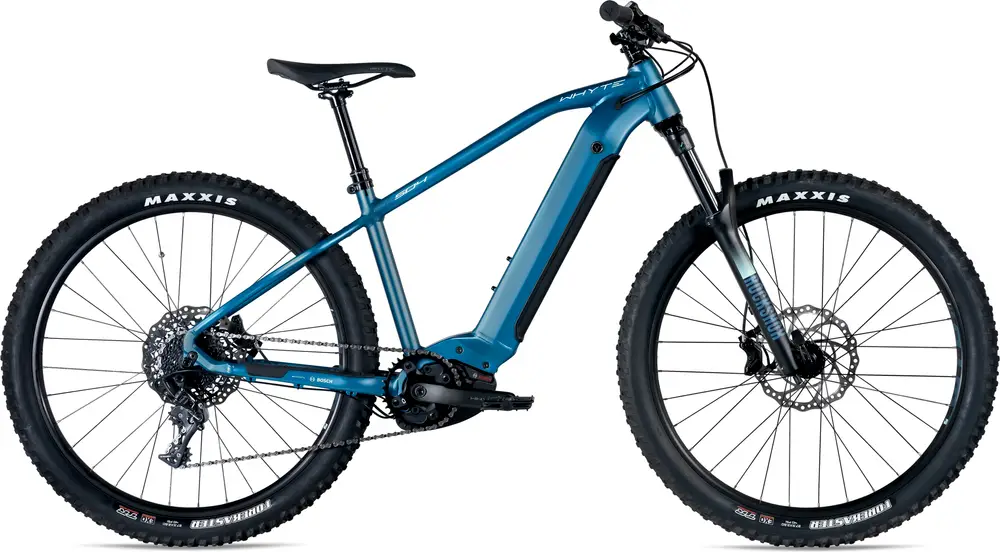

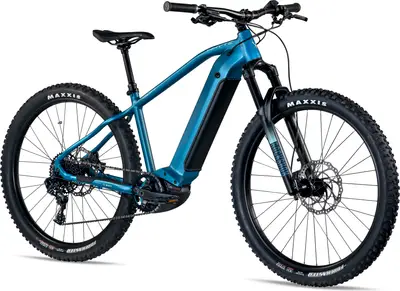

Whyte E-504 Compact

A 27.5″ aluminum frame hardtail trail e-bike with upper mid-range components.

Frame	Aluminum
Suspension	Hardtail, 120mm
Fork	RockShox 35 Silver
Wheels	27.5″ Aluminum
Drivetrain	1 × 11
Groupset	GX
Motor	85Nm hub-drive
Battery	500Wh
Brakes	Tektro Orion Hydraulic Disc
Seatpost	Dropper

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Fork	RockShox 35 Silver TK 27.5", 120mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite Travel: 120mm Spring Type: Air
Shock	N/A
Bottom Bracket	N/A
Headset	FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Stem	Whyte Alloy 6061, 35mm Extension
Handlebar	Whyte 6061 Alloy, XS and S 15mm Rise, 31.8mm, 760mm, M 30mm Rise, 31.8mm, 780mm Wide
Saddle	Whyte Custom, Triple Panel Design
Seatpost	Whyte drop.it, 30.9, XS 100mm, S 125mm, M 150mm Travel, Paddle Remote Lever Type: Dropper
Pedals	None
Grips	Whyte Lock-on V Grip

Rear Derailleur	SRAM GX, 11 Speed
Front Derailleur	N/A
Crank	Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
Shifters	SRAM GX, 11 Speed
Cassette	SRAM PG-1130, 11-42, 11 Speed
Chain	KMC NPBK Sport, 11 Speed
Brakes	Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount Type: Tektro Orion Hydraulic Disc
Brake Levers	Tektro Orion

Rims	WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub	Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Tires	Maxxis Forekaster TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection

2022 WhyteE-504 Compact

2022 Whyte
E-504 Compact
