Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing

Whyte, Forged Cranks, 2pcs, Super Compact Double 30-46t, 10 Speed, 170mm

Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, BBX Cable Routing

Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Thru Axle, Centre-Lock, 32 Hole

Controltech, 6061 Alloy, Gravel/Road compact drop, 10mm riser bar, 31.8mm x 420mm 48cm, 440mm 50cm, 460mm 52&54cm, 480mm 56&58cm

FEMIMIN H889B, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Shimano GRX RD-RX400, Shadow Plus, 10 Speed

Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Thru Axle, Centre-Lock, 32 Hole

Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 48/50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm

Schwalbe G-ONE BITE, 700 x 40c, TL-Easy with RaceGuard Puncture Protection

On-Road Or Off-Road, Go AnywhereWhether mixing up the roads with the rough, heading out for an epic bike packing adventure ride, or getting to work and back swiftly and efficiently, the Dean’s Shimano’s GRX groupset – with wide-range 2x10 gearing – is ready to maximise both your speed and the terrain you can conquer on- and off-road.
Highlights— 6061 T6 hydroformed, multi-butted alloy frame— Lightweight straight bladed 6061 alloy fork— Shimano GRX 2x10 mechanical transmission + hydraulic disc brakes— 2x10 transmission (40-46T chainring x 11-36T cassette)— 700x40mm Schwalbe G-ONE BITE TL-Easy tubeless ready tyres— Full bottle, mudguard and bikepacking mounting points
Why Dean?Lightweight, responsive, with more gears and frame sizes than our SRAM-geared single chainring gravel bikes, our latest Dean is a great choice for riders looking for an outstanding blend of value, versatility, and performance. The Dean won’t just survive but thrive wherever your ride takes you.
Features & EquipmentWith its proven trail-taming handling it’s got the edge when the road stops, too. The same ride anywhere mountain bike (MTB) inspired handling as the rest of our gravel range – together with wide rims and tyres – are a license to leave those roads far behind and head over the hills, into the forests and down unknown trails. And when you do, the reinforced Schwalbe tyres, 2x10 Shimano GRX gears and brakes – together with full bottle, rack and bikepacking mounts – mean the Dean is a fast, efficient and super tough all-rounder. Sealed cable ports and masses of mud clearance, together with being fully mud-guard ready – just add our own Whyte mudguards all combine to ensure that bad weather will never hold you back.

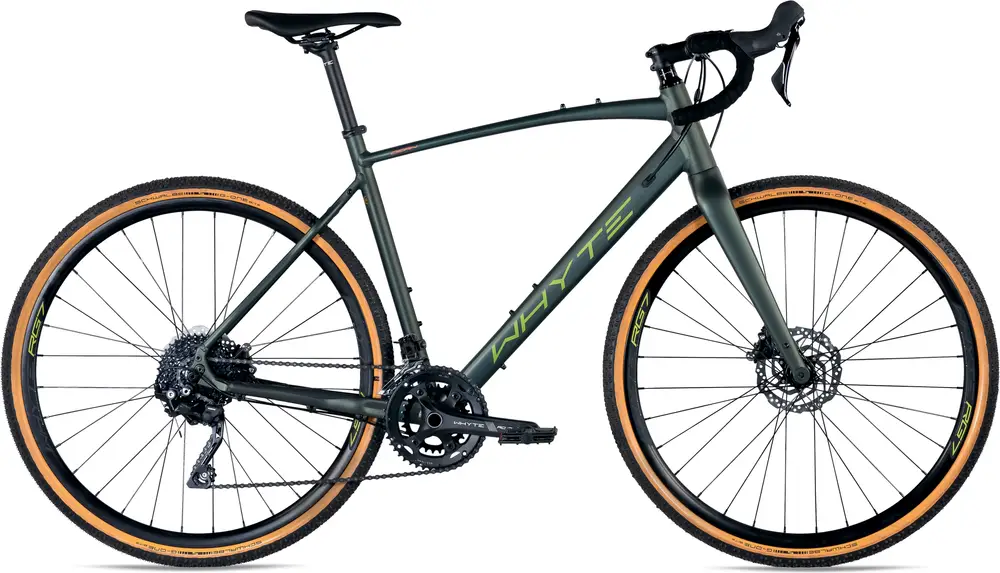

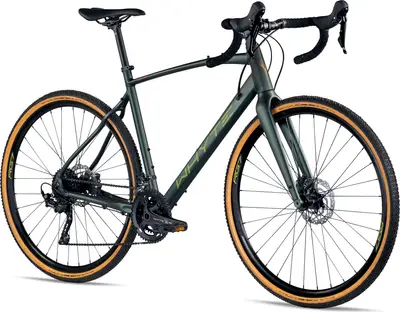

Whyte Dean

48cm

50cm

52cm

54cm

56cm

58cm

An aluminum frame gravel bike with mid-range components and shimano grx 400 hydraulic disc brakes.

Weight	25.1 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	2 × 10
Groupset	GRX 400
Brakes	Shimano GRX 400 Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, BBX Cable Routing BB Standard: BSA, 68mm, Threaded
Fork	Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	BSA, Cartridge Bearings, 68mm
Headset	FEMIMIN H889B, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 48/50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm
Handlebar	Controltech, 6061 Alloy, Gravel/Road compact drop, 10mm riser bar, 31.8mm x 420mm 48cm, 440mm 50cm, 460mm 52&54cm, 480mm 56&58cm
Saddle	Whyte Custom
Seatpost	Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Anti Slip, Cross Bar Tape

Rear Derailleur	Shimano GRX RD-RX400, Shadow Plus, 10 Speed
Front Derailleur	Shimano GRX RD-RX400, 10 Speed
Crank	Whyte, Forged Cranks, 2pcs, Super Compact Double 30-46t, 10 Speed, 170mm
Shifters	Shimano GRX ST-RX400, 10 Speed
Cassette	SunRace CSMS1, 11-36, 10 Speed
Chain	SunRace CN10, Black, 10 Speed
Brakes	Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing Type: Shimano GRX 400 Hydraulic Disc
Brake Levers	Shimano GRX ST-RX600, Hydraulic

Rims	Whyte RG-7, Tubeless Ready, 32 Hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Thru Axle, Centre-Lock, 32 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Thru Axle, Centre-Lock, 32 Hole
Tires	Schwalbe G-ONE BITE, 700 x 40c, TL-Easy with RaceGuard Puncture Protection

2022 WhyteDean

2022 Whyte
Dean
