Square Interface, Cartridge Bearings, 73mm

Alloy 6061, 28T Narrow Wide Chainring, Single guard, 152mm Crank Length

SR Suntour XCR, 100mm Travel, Hydro Lock-out, Air Spring, Adjustable Rebound, Post Mount

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts

Whyte 6061 Alloy, 25mm Rise, 31.8mm, 660mm Wide

FEIMIN H807B, Semi Integrated, 1 1/8" Caged Bearings

Whyte 6061 Alloy, 15mm Offset, 30.9mm x 300mm, 2 Bolt Clamp

Shimano Altus SL-M2010, Trigger Shifter, 9 Speed

2.0mm, PG, Black Stainless, Brass Nipples

26in wheels are another level up when it comes to real off-road control and speed. Especially when you match them with a lightweight, lively alloy frame and custom tuned, air sprung junior suspension fork like the 403 has. Downsized Total Geometry handling dynamics are perfect for pushing limits and learning new skills safely and grips, saddle and cranks are all sized ideally for early teenage trail stars. Shimano 9 speed gears are flawlessly smooth, hydraulic brakes give precise fingertip control whatever the weather. The Vee Crown Gem tyres are great off road all-rounders and with two different colour options our 403 is a complete package of awesome looks and awesome performance.
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice

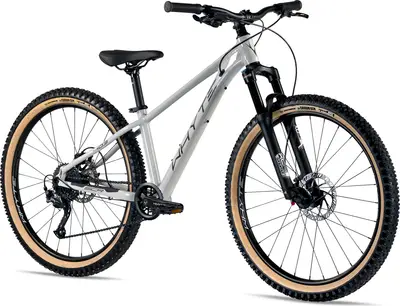

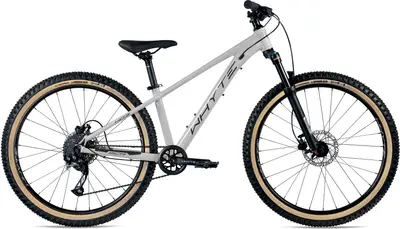

Whyte 403

One Size

A 26″ aluminum frame mountain youth bike with modest components and tektro hydraulic disc brakes.

Weight	29.1 lbs
Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCR Air
Wheels	26″ Aluminum
Drivetrain	1 × 9
Groupset	Altus
Brakes	Tektro Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts
Fork	SR Suntour XCR, 100mm Travel, Hydro Lock-out, Air Spring, Adjustable Rebound, Post Mount Travel: 100mm Spring Type: Air
Shock	N/A
Bottom Bracket	Square Interface, Cartridge Bearings, 73mm
Headset	FEIMIN H807B, Semi Integrated, 1 1/8" Caged Bearings
Stem	Whyte Alloy, 35mm
Handlebar	Whyte 6061 Alloy, 25mm Rise, 31.8mm, 660mm Wide
Saddle	Whyte Jr Mid Custom
Seatpost	Whyte 6061 Alloy, 15mm Offset, 30.9mm x 300mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Lock-on V Grip

Rear Derailleur	Shimano Altus RD-M2000-SGS, 9 Speed
Front Derailleur	N/A
Crank	Alloy 6061, 28T Narrow Wide Chainring, Single guard, 152mm Crank Length
Shifters	Shimano Altus SL-M2010, Trigger Shifter, 9 Speed
Cassette	SunRace CSM90, ED Black 11-36, 9 Speed
Chain	SunRace, 9 Speed
Brakes	Tektro HD-M275, Hydraulic, 160mm Rotor Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-M275

Rims	Whyte Trail-403, 28 Hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Cup & Cone, Double Seal, 28 Hole
Rear Hub	Alloy, Cup & Cone, Double Seal, 28 Hole
Tires	VEE TIRE Co, Crown Gem 26" x 2.25"
