Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing

2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 10 Speed

Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount

Whyte 6061 Alloy, 30mm Rise, 31.8mm, 620mm Wide

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Shimano Deore RD-M4120-SGS, Shadow Plus, 10 Speed

Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front

Whyte 6061 Alloy, 25mm Offset, 27.2mm x S/M/L 350mm, XL 400mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Vittoria Terreno Zero 700 x 37c, Puncture Protection

Based on our high performance mountain bike geometry, all our Fast Urban bikes have a long wheelbase and relaxed head angle for high speed stability and a shorter stem for excellent slow speed manoeuvrability.Featuring mountain bike clutch mech technology and the excellent Deore 11-42 wide range cassette, the Shoreditch has the right gear for any ride.From an urban commute to an open road adventure, 37c tyres on 23mm wide rims mean speed, comfort and control.[split]
SPECIFICATION
COLOUR
Matt Olive with Khaki & Burnt Orange
CASSETTE
Shimano Deore CS-M4100, 11-42, 10 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
CHAIN
Sunrace, 10 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
CRANKSET
2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 10 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
Sealed Cartridge Bearings, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 25mm Offset, 27.2mm x S/M/L 350mm, XL 400mm, 2 Bolt Clamp
REAR HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
SADDLE
Whyte Custom
FRONT HUB
Alloy, Cup & Cone, Double Seal, 28 Hole
HANDLEBAR
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 620mm Wide
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, S 45mm, M/L/XL 60mm
RIMS
Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
GRIPS
Whyte Custom Dual Density Lock-on
TYRE
Vittoria Terreno Zero 700 x 37c, Puncture Protection
BRAKES FRONT
Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing
SHIFT LEVERS
Shimano Deore SL-M4100, 10 Speed
BRAKES REAR
Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Tektro HD-M275
REAR MECH
Shimano Deore RD-M4120-SGS, Shadow Plus, 10 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
10.7
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
S
M
L
XL
5’1″ – 5’5″
5’5″ – 5’9″
5’9″ – 6’1″
6’1″ – 6’5″
155- 165 cm
165 – 175 cm
175 – 185 cm
185 – 197 cm
GEOMETRY
SIZE
S
M
L
XL
A HEAD TUBE ANGLE
69.5
70
70
70
B SEAT TUBE ANGLE
74
73.5
73
73
C TOP TUBE HORIZONTAL
569.4
595.2
613
626.9
D BB HEIGHT ABOVE GROUND
268
268
271.5
271.5
E STAND OVER HEIGHT
716.5
745.5
789
817
F WHEEL BASE
1061.4
1078.4
1094.3
1109.3
G CHAIN STAY LENGTH
430
430
430
430
H SEAT POST DIAMETER
27.2
27.2
27.2
27.2
I HEAD TUBE LENGTH
145
165
185
205
J SEAT TUBE LENGTH
406.4
444.5
495
533
STACK
612
579
593
612
REACH
409
424
432
440

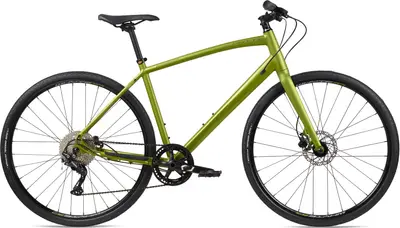

Whyte SHOREDITCH v2

A 700c aluminum frame commuter bike with upper mid-range components and tektro hydraulic disc brakes.

Weight	23.6 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	1 × 10
Groupset	Deore
Brakes	Tektro Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
Fork	Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Sealed Cartridge Bearings, 68mm
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, S 45mm, M/L/XL 60mm
Handlebar	Whyte 6061 Alloy, 30mm Rise, 31.8mm, 620mm Wide
Saddle	Whyte Custom
Seatpost	Whyte 6061 Alloy, 25mm Offset, 27.2mm x S/M/L 350mm, XL 400mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Custom Dual Density Lock-on

Rear Derailleur	Shimano Deore RD-M4120-SGS, Shadow Plus, 10 Speed
Front Derailleur	N/A
Crank	2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 10 Speed
Shifters	Shimano Deore SL-M4100, 10 Speed
Cassette	Shimano Deore CS-M4100, 11-42, 10 Speed
Chain	Sunrace, 10 Speed
Brakes	Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-M275

Rims	Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Cup & Cone, Double Seal, 28 Hole
Rear Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Tires	Vittoria Terreno Zero 700 x 37c, Puncture Protection

2021 WhyteSHOREDITCH v2

2021 Whyte
SHOREDITCH v2
