Shimano MT400, Hydraulic, 160mm Disc, Internal Routing

2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 11 Speed

Whyte Straight Bladed full carbon, Internal Cable Routing, 12mm Thru Axle, Post Mount with Post mount 160mm Adaptor. Single Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount

Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 28 Hole, Concealed Hex Key

Whyte 6061 Alloy, 20mm Rise, 31.8mm, 600mm Wide

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, 32 Hole

Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front

Whyte 2014 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Vittoria Terreno Zero 700 x 37c, Folding, Puncture Protection

Compact geometry means a reduced reach - ideal for smaller riders or those that prefer a more upright riding position. Lightweight 1x11 speed transmission provides reliable sequential shifting simplicity and a wide gear range.A custom rear dropout mounts the hydraulic disc brake caliper inside the rear triangle clearing the way for a rack or mudguards and our new urban chain stays feature a useful kickstand mount.Our shaped, butted and uniquely profiled rear stays give all our fast urban bikes a fantastically responsive and comfortable ride.
[split]
SPECIFICATION
COLOUR
Matt Midnight with Grey & Magenta
CASSETTE
Shimano CS-M5100, 11-51, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
CHAIN
SunRace, 11 Speed
FORK
Whyte Straight Bladed full carbon, Internal Cable Routing, 12mm Thru Axle, Post Mount with Post mount 160mm Adaptor. Single Eyelets for Mudguards
CRANKSET
2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 11 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
Sealed Cartridge Bearings, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 2014 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, 32 Hole
SADDLE
Whyte Custom, Compact Fit
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 28 Hole, Concealed Hex Key
HANDLEBAR
Whyte 6061 Alloy, 20mm Rise, 31.8mm, 600mm Wide
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, S 45mm, M/L 60mm Extension
RIMS
Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
GRIPS
Whyte Custom Dual Density Lock-on
TYRE
Vittoria Terreno Zero 700 x 37c, Folding, Puncture Protection
BRAKES FRONT
Shimano MT400, Hydraulic, 160mm Disc, Internal Routing
SHIFT LEVERS
Shimano Deore SL-M5100, 11 Speed
BRAKES REAR
Shimano MT400, Hydraulic, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Shimano MT401
REAR MECH
Shimano Deore RD-M5100-SGS, 11 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
10
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
S
M
L
5’0″ – 5’4″
5’4″ – 5’8″
5’8″ – 6’0″
152- 163 cm
163 – 173 cm
173 – 183 cm
GEOMETRY
SIZE
S
M
L
A HEAD TUBE ANGLE
69
69.5
70
B SEAT TUBE ANGLE
74.5
73.5
73
C TOP TUBE HORIZONTAL
547.9
573.6
599.8
D BB HEIGHT ABOVE GROUND
266.5
266.5
266.5
E STAND OVER HEIGHT
732.5
735.5
767.5
F WHEEL BASE
1049.5
1067.4
1078.4
G CHAIN STAY LENGTH
430
430
430
H SEAT POST DIAMETER
27.2
27.2
27.2
I HEAD TUBE LENGTH
140
160
180
J SEAT TUBE LENGTH
393.7
431.8
469.9
STACK
552
575
593
REACH
395
404
420

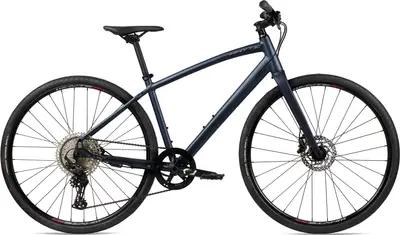

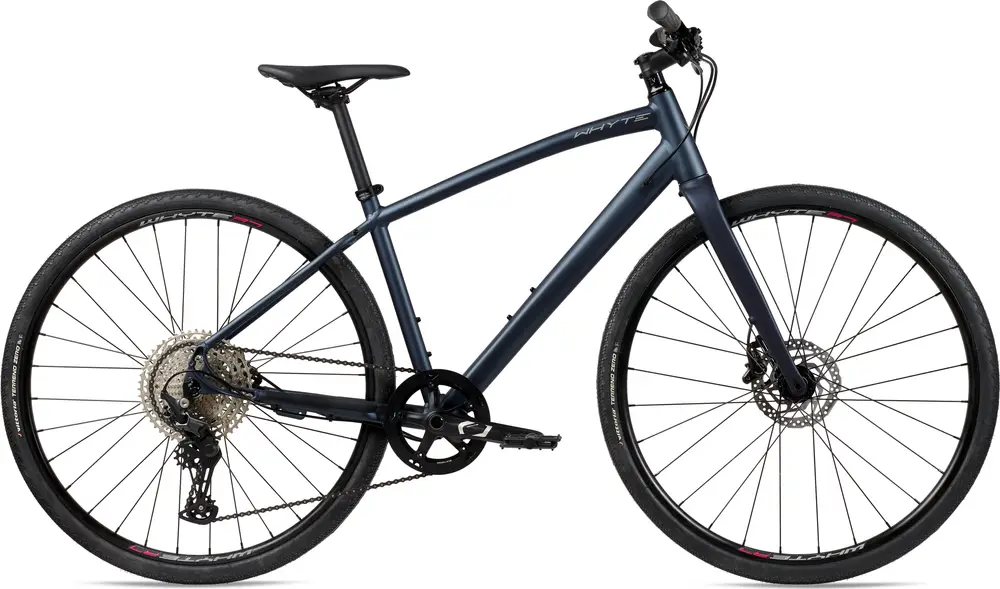

Whyte PIMLICO (COMPACT) v2

A 700c aluminum frame commuter bike with upper mid-range components and shimano hydraulic disc brakes.

Weight	22.0 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Deore
Brakes	Shimano Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
Fork	Whyte Straight Bladed full carbon, Internal Cable Routing, 12mm Thru Axle, Post Mount with Post mount 160mm Adaptor. Single Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Sealed Cartridge Bearings, 68mm
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, S 45mm, M/L 60mm Extension
Handlebar	Whyte 6061 Alloy, 20mm Rise, 31.8mm, 600mm Wide
Saddle	Whyte Custom, Compact Fit
Seatpost	Whyte 2014 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Custom Dual Density Lock-on

Rear Derailleur	Shimano Deore RD-M5100-SGS, 11 Speed
Front Derailleur	N/A
Crank	2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 11 Speed
Shifters	Shimano Deore SL-M5100, 11 Speed
Cassette	Shimano CS-M5100, 11-51, 11 Speed
Chain	SunRace, 11 Speed
Brakes	Shimano MT400, Hydraulic, 160mm Disc, Internal Routing Type: Shimano Hydraulic Disc
Brake Levers	Shimano MT401

Rims	Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 28 Hole, Concealed Hex Key
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 32 Hole
Tires	Vittoria Terreno Zero 700 x 37c, Folding, Puncture Protection

2021 WhytePIMLICO (COMPACT) v2

2021 Whyte
PIMLICO (COMPACT) v2
