Shimano GRX BR-RX810, 180mm Flat Mount Centre-lock Disc, Internal Routing

Shimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed

Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing

Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 28 Hole, concealed hex key

Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm riser bar, 31.8mm x 500mm

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Shimano GRX RD-RX812, Shadow Plus, 11 Speed

Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 28 Hole

Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole

Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design

Trans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left lever

DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension

WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

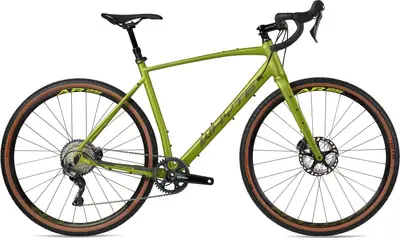

A truly ground-breaking Gravel/Adventure bike with MTB-inspired geometry, tubeless ready wheels and tyres, hydraulic disc brakes and Shimano's much anticipated new GRX 1x groupset - and a dropper post so you can make the most of its capabilities on steeper descents.Whyte geometry makes this bike exceptionally competent and controllable off-road. 1 x 11 gearing offers simplicity and efficiency that cannot be rivalled. Full hydraulic disc brakes add stopping power and control.Whyte's straight bladed full carbon fork with its tapered steerer tube and 12mm through axle gives this bike great front end stiffness and steering precision. Combined with an ultra-wide Whyte 500 riser bar which allows the rider to truly exploit the radical geometry.
[split]
SPECIFICATION
COLOUR
Matt Olive with Khaki & Lime
CASSETTE
Shimano CS-M7000, 11-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
CHAIN
Shimano CN-HG601-11, 11 Speed
FORK
Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
CRANKSET
Shimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
Shimano SM-BBR60, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Trans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left lever
REAR HUB
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 28 Hole
SADDLE
Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 28 Hole, concealed hex key
HANDLEBAR
Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm riser bar, 31.8mm x 500mm
SPOKES
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
RIMS
Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
GRIPS
Whyte Anti Slip, Cross Bar Tape
TYRE
WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
BRAKES FRONT
Shimano GRX BR-RX810, 180mm Flat Mount Centre-lock Disc, Internal Routing
SHIFT LEVERS
Shimano GRX ST-RX810, 11 Speed
BRAKES REAR
Shimano GRX BR-RX810, 160mm Flat Mount Centre-lock Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Shimano GRX ST-RX810, Hydraulic
REAR MECH
Shimano GRX RD-RX812, Shadow Plus, 11 Speed
PEDALS
None
WEIGHT
TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
50
52
54
56
58
5’2″ – 5’5″
5’5″ – 5’8″
5’8″ – 5’11″
5’11″ – 6’2″
6’2″ – 6’5″
157 – 165 cm
165 – 172 cm
172 – 180 cm
180 – 187 cm
187 – 195 cm
GEOMETRY
SIZE
50
52
54
56
58
A HEAD TUBE ANGLE
70
70
70
70
70
B SEAT TUBE ANGLE
74
74
74
74
74
C TOP TUBE HORIZONTAL
559
568
597
606
624
D BB HEIGHT ABOVE GROUND
277
277
277
277
277
E STAND OVER HEIGHT
784
801
818
835
852
F WHEEL BASE
1032
1042
1072
1081
1102
G CHAIN STAY LENGTH
425
425
425
425
425
H SEAT POST DIAMETER
30.9
30.9
30.9
30.9
30.9
I HEAD TUBE LENGTH
130
145
160
175
190
J SEAT TUBE LENGTH
500
520
540
560
580
STACK
570
584
598
612
626
REACH
396
400.4
425
430
445

Whyte GISBURN v3

50cm

52cm

54cm

56cm

58cm

An aluminum frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	GRX 800
Brakes	Shimano GRX 800 Hydraulic Disc
Seatpost	Dropper

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing BB Standard: BSA, 68mm, Threaded
Fork	Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Shimano SM-BBR60, 68mm
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
Handlebar	Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm riser bar, 31.8mm x 500mm
Saddle	Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost	Trans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left lever Type: Dropper
Pedals	None
Grips	Whyte Anti Slip, Cross Bar Tape

Rear Derailleur	Shimano GRX RD-RX812, Shadow Plus, 11 Speed
Front Derailleur	N/A
Crank	Shimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
Shifters	Shimano GRX ST-RX810, 11 Speed
Cassette	Shimano CS-M7000, 11-42, 11 Speed
Chain	Shimano CN-HG601-11, 11 Speed
Brakes	Shimano GRX BR-RX810, 180mm Flat Mount Centre-lock Disc, Internal Routing Type: Shimano GRX 800 Hydraulic Disc
Brake Levers	Shimano GRX ST-RX810, Hydraulic

Rims	Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
Spokes	DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 28 Hole, concealed hex key
Rear Hub	Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 28 Hole
Tires	WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

2021 WhyteGISBURN v3

2021 Whyte
GISBURN v3
