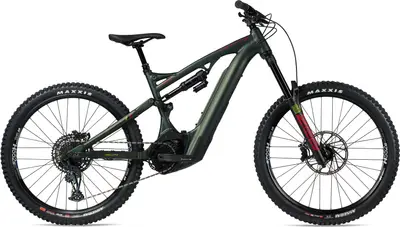

2021 Whyte
E-180 S v2
A 27.5″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
£5,500($6,964)| Frame | Aluminum |
|---|---|
| Suspension | Full, 180mm front |
| Fork | RockShox ZEB |
| Shock | RockShox Super Deluxe Select |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle |
| Motor | Bosch 250W 85Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'4" – 5'10"
5'8" – 6'3"
6'0" – 6'6"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2022
Whyte Bikes e-180 Works MX With CX Race Whyte is pleased to introduce its latest gravity race eMTB: the all-new e-180 Works MX. Built around the first ever competition focused eMTB engine, the brand-new Bosch Performance Line CX Race Limited Edition motor, the e-180
Sep 2021 · Mick Kirkman
The Whyte E-180 RS V3 is self-shuttling gravity enduro machine with 170mm travel out back, paired with a 180mm fork and the Bosch system.
One of the best long travel e-bikes on the market. Sublime suspension matched with ultimate control.
In some situations, this much suspension, strength and capability requires some serious manhandling. Could be even better with a 29in front wheel.
Jun 2021 · Robin Weaver
Burly, Bosch-powered bike that’s ready to get rowdy
Spec
Removeable Bosch motor
Balanced feel and dimensions
Weight limits flickability
I’d boost the rear brake rotor size to 220mm
Dec 2019 · Felix Stix, Robin Schmitt, Jonas Müssig
Every inch of the Whyte E-180 RS V1 is trimmed to the bike's downhill performance. Can you even have fun with such a 180 mm travel beast outside of a bike park?
Mountain bike-like handling
Sensible and robust componentry
It won't hold you back
Rudimentary finish
Only two frame sizes
Loud on the descents
| Frame | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts |
|---|---|
| Fork | RockShox ZEB 27.5", 180mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate Travel: 180mm Spring Type: Air |
| Shock | RockShox Super Deluxe Select, DebonAir, Fast Black Coating, Adjustable Rebound Spring Type: Air |
| Bottom Bracket | N/A |
| Headset | FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings |
| Stem | Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension |
| Handlebar | Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide |
| Saddle | Whyte Custom, Triple Panel Design |
| Seatpost | Whyte drop.it II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, Paddle Remote Lever Type: Dropper |
| Pedals | None |
| Grips | Whyte Lock-on V Grip |
| Rear Derailleur | SRAM GX Eagle, 12 Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Whyte, forged alloy, 165mm, X-SYNC 2, Direct Mount 34T for Bosch Gen 4, Black |
| Shifters | SRAM GX-E Eagle, Single Click, MMX, 12 Speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 Speed |
| Chain | SRAM GX Eagle, 12 Speed |
| Brakes | SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc Type: Hydraulic Disc |
| Brake Levers | SRAM Code R, MMX |
| Rims | DT Swiss Hybrid 30, Sleeved Joint, 32 Hole |
|---|---|
| Spokes | DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples |
| Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole |
| Rear Hub | Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 9 deg Micro Engagement 4 Pawl, 32 Hole |
| Tires | Maxxis Assegai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assegai WT, TR, 27.5" x 2.5" 120TPI, Double Down casing, 3C Maxx Terra, Dual Compound, Rear |
| Motor | Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support |
|---|---|
| Battery | Bosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours |
| Display | Bosch Purion |
