2021 Whyte E-180 RS v2

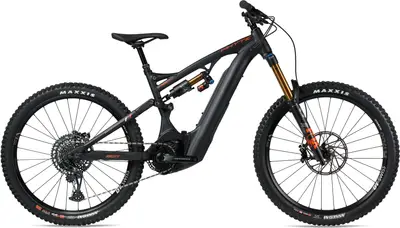

The 2021 Whyte E-180 RS v2 is a 27.5″ aluminum frame full suspension enduro e-bike with ultra high-end components.

View on whyte.bike

2021 Whyte E-180 RS v2
  • MSRP £6,750
  • Suspension Full
  • Front Travel 180mm
  • Frame Aluminum
  • Fork Fox Factory Float 38
  • Wheels 27.5″
  • Drivetrain 1 × 12
  • Groupset X01, X01 Eagle
  • Motor Bosch 250W 85Nm
  • Battery Bosch 625Wh
  • Brakes Hydraulic Disc
  • Seatpost Dropper post

Where to Buy

Gearing

1 × 12 — 12 speed

2021 Whyte E-180 RS v2
28 mph
Similar Bikes
26 mph

The E-180 RS v2 is geared about the same as similar bikes for riding up hills.

Similar bikes won‘t keep up with the E-180 RS v2 while riding downhill or sprinting.


Estimated Spec Level

Estimated spec level of the E-180 RS v2 compared to other enduro bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.

Learn more

est. spec level →$0$2,000$4,000$6,000$8,000
This bike
Other enduro bikes

Reviews

Geometry

Specs
Build
Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
ForkFox Factory 38 27.5", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle
Rear ShockFox Float DHX-2, Factory, independently adjustable Compression and Rebound damping, Kashima coating
HeadsetFSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
StemRace Face Atlas, 35mm Bar Bore, 35mm Extension
HandlebarRace Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide
SaddleWhyte Custom, Triple Panel Design
SeatpostCrank Bro High-Line 3, 30.9mm, M/L 150mm Travel, High-Line Ball Socket Remote Lever
GripsWhyte Lock-on V Grip
Groupset
Rear DerailleurSRAM X01 Eagle, 12 Speed
CrankRace Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 34T for Bosch Gen 4, Black
ShiftersSRAM X01-E Eagle, Single Click, MMX, 12 Speed
CassetteSRAM XG-1275 Eagle, 10-52, 12 Speed
ChainSRAM GX Eagle, 12 Speed
BrakesSRAM Code RSC, 4 Pot with Sintered Metal Pads, 220mm Rotor
Brake LeversSRAM Code RSC, MMX
Wheels
RimsDT Swiss Hybrid 30, Sleeved Joint, 28 Hole
SpokesDT Swiss Hybrid triple butted 2.34mm/1.8mm/2.0mm, Black Stainless, DT Pro Lock Squorx Nipples
Front HubDT Swiss 350, 15mm x 110mm, Centre-Lock, 28 Hole
Rear HubDT Swiss 350 Straightpull with 24T Ratchet System, 12mm x 148mm, 6 Bolt with Magnet carrier, 28 Hole
TiresMaxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down casing, 3C Maxx Terra, Dual Compound, Rear
Electric Components
MotorBosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
BatteryBosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours
RemoteBosch Purion
