Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing

Whyte, Forged Cranks, 2pcs, Super Compact Double 30-46t, 10 Speed, 170mm

Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, BBX Cable Routing

Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, Centre-Lock, 32 Hole, Concealed Hex Key

Controltech, 6061 Alloy, Gravel/Road compact drop, 10mm riser bar, 31.8mm x 420mm 48cm, 440mm 50cm, 460mm 52&54cm, 480mm 56&58cm

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Shimano GRX RD-RX400, Shadow Plus, 10 Speed

Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, Centre-lock, 32 Hole

Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

Whyte Alloy, +-7° Rise, 48/50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension

Schwalbe G-ONE BITE, 700 x 40c, TL-Easy with RaceGuard puncture protection

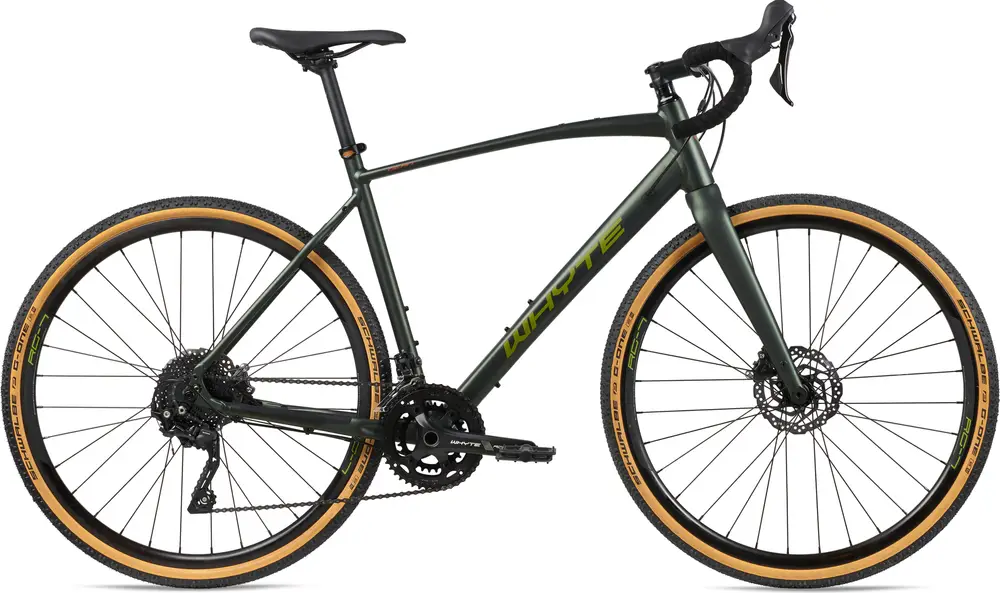

The Dean is an exciting addition to our popular and innovative Gravel range - whether you're looking for a gravel bike for off-road adventures, or a super-hardy utility bike.With a 2 by 10 Shimano GRX groupset, full hydraulic brakes and tubeless tyres you’re getting the latest leading gravel technology, combined with Whyte's acclaimed gravel geometry.Our brand-new gravel frame is used on the Dean. Available in 5 sizes it features all the luggage points you need for on and off road adventures. If your ride is going to take you further afield then this frame will also accommodate all the bike packing bags, with space for a bottle on the underside of the down tube.
[split]
SPECIFICATION
COLOUR
Matt Moss with Olive & Burnt Orange
CASSETTE
SunRace CSMS1, 11-36, 10 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, BBX Cable Routing
CHAIN
SunRace CN10, Black, 10 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
CRANKSET
Whyte, Forged Cranks, 2pcs, Super Compact Double 30-46t, 10 Speed, 170mm
REAR SHOCK
N/A
BOTTOM BRACKET
BSA, Cartridge Bearings, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, Centre-lock, 32 Hole
SADDLE
Whyte Custom
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, Centre-Lock, 32 Hole, Concealed Hex Key
HANDLEBAR
Controltech, 6061 Alloy, Gravel/Road compact drop, 10mm riser bar, 31.8mm x 420mm 48cm, 440mm 50cm, 460mm 52&54cm, 480mm 56&58cm
SPOKES
2.0mm, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +-7° Rise, 48/50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
RIMS
Whyte RG-7, Tubeless Ready, 32 Hole
GRIPS
Whyte Anti Slip, Cross Bar Tape
TYRE
Schwalbe G-ONE BITE, 700 x 40c, TL-Easy with RaceGuard puncture protection
BRAKES FRONT
Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing
SHIFT LEVERS
Shimano GRX ST-RX600, 10 Speed
BRAKES REAR
Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing
FRONT MECH
Shimano GRX RD-RX400, 10 Speed
BRAKE LEVERS
Shimano GRX ST-RX600, Hydraulic
REAR MECH
Shimano GRX RD-RX400, Shadow Plus, 10 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
48
50
52
54
56
58
4’11″ – 5’2″
5’2″ – 5’5″
5’5″ – 5’8″
5’8″ – 5’11″
5’11″ – 6’2″
6’2″ – 6’5″
150 – 157 cm
157 – 165 cm
165 – 172 cm
172 – 180 cm
180 – 187 cm
187 – 195 cm
GEOMETRY
SIZE
48
50
52
54
56
58
A HEAD TUBE ANGLE
70
70
70
70
70
70
B SEAT TUBE ANGLE
74
74
74
74
74
74
C TOP TUBE HORIZONTAL
548
557
566
595
604
623
D BB HEIGHT ABOVE GROUND
270
270
270
270
270
270
E STAND OVER HEIGHT
756
773
790
807
824
841
F WHEEL BASE
1030
1040
1050
1080
1090
1110
G CHAIN STAY LENGTH
435
435
435
435
435
435
H SEAT POST DIAMETER
27.2
27.2
27.2
27.2
27.2
27.2
I HEAD TUBE LENGTH
115
130
145
160
175
190
J SEAT TUBE LENGTH
480
500
520
540
560
580
STACK
551
563
577
591
605
620
REACH
391
396
400
425
430
445

Whyte DEAN v1

48cm

50cm

52cm

54cm

56cm

58cm

An aluminum frame gravel bike with mid-range components and shimano grx 400 hydraulic disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	2 × 10
Groupset	GRX 600, GRX 400
Brakes	Shimano GRX 400 Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, BBX Cable Routing BB Standard: BSA, 68mm, Threaded
Fork	Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	BSA, Cartridge Bearings, 68mm
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 48/50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
Handlebar	Controltech, 6061 Alloy, Gravel/Road compact drop, 10mm riser bar, 31.8mm x 420mm 48cm, 440mm 50cm, 460mm 52&54cm, 480mm 56&58cm
Saddle	Whyte Custom
Seatpost	Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Anti Slip, Cross Bar Tape

Rear Derailleur	Shimano GRX RD-RX400, Shadow Plus, 10 Speed
Front Derailleur	Shimano GRX RD-RX400, 10 Speed
Crank	Whyte, Forged Cranks, 2pcs, Super Compact Double 30-46t, 10 Speed, 170mm
Shifters	Shimano GRX ST-RX600, 10 Speed
Cassette	SunRace CSMS1, 11-36, 10 Speed
Chain	SunRace CN10, Black, 10 Speed
Brakes	Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing Type: Shimano GRX 400 Hydraulic Disc
Brake Levers	Shimano GRX ST-RX600, Hydraulic

Rims	Whyte RG-7, Tubeless Ready, 32 Hole
Spokes	2.0mm, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, Centre-Lock, 32 Hole, Concealed Hex Key
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, Centre-lock, 32 Hole
Tires	Schwalbe G-ONE BITE, 700 x 40c, TL-Easy with RaceGuard puncture protection
