Alloy Narrow/Wide 40T Chainring with Guard, 11 Speed

SR Suntour NCX-D LO, 63mm Travel, Alloy Steerer, Hydro Lockout

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Custom Whyte Dropouts and Integrated Kickstand Mount

Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide

FSA No.10, Semi Integrated, 1 1/8" Caged Bearings

Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L 400mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Schwalbe Road Cruiser TOUR, 700 x 40c, Green Compound, K-Guard puncture protection

Featuring a lightweight custom butted frame with latest generation geometry, these bikes are the very definition of a contemporary Sports Hybrid - all the confidence and surefooted capability of our modern 29er hardtails, with the practicality of a trekking bike.Our mudguard-compatible frames are designed to accommodate modern high volume tyres, feature our proprietary BBX internal cable routing and are loaded with unique design touches and British weatherproof features - such as the forward facing seat slot that stops water spray from the rear wheel getting into the frame.Lightweight 1x11 speed transmission provides reliable sequential shifting simplicity and a wide gear range. Hydraulic disc brakes, puncture resistant tyres and a comfort-enhancing suspension fork complete the package and promise years of trouble free performance.
[split]
SPECIFICATION
COLOUR
Matt Bronze with Silver & Copper
CASSETTE
Shimano CS-M5100, 11-51, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Custom Whyte Dropouts and Integrated Kickstand Mount
CHAIN
SunRace, 11 Speed
FORK
SR Suntour NCX-D LO, 63mm Travel, Alloy Steerer, Hydro Lockout
CRANKSET
Alloy Narrow/Wide 40T Chainring with Guard, 11 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
Sealed Cartridge Bearings, 68mm
HEADSET
FSA No.10, Semi Integrated, 1 1/8" Caged Bearings
SEATPOST
Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L 400mm, 2 Bolt Clamp
REAR HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
SADDLE
Whyte Custom
FRONT HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
HANDLEBAR
Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +6 Degree, 70mm
RIMS
Whyte 23 x 700c, 32 hole
GRIPS
Whyte Custom Ergo Dual Density Lock-on
TYRE
Schwalbe Road Cruiser TOUR, 700 x 40c, Green Compound, K-Guard puncture protection
BRAKES FRONT
Shimano MT400, Hydraulic, 160mm Disc
SHIFT LEVERS
Shimano Deore SL-M5100, 11 Speed
BRAKES REAR
Shimano MT400, Hydraulic, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Shimano MT400
REAR MECH
Shimano Deore RD-M5100-SGS, 11 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
S
M
L
5’1″ – 5’5″
5’5″ – 5’9″
5’9″ – 6’1″
155- 165 cm
165 – 175 cm
175 – 185 cm
GEOMETRY
SIZE
S
M
L
A HEAD TUBE ANGLE
69
69
69
B SEAT TUBE ANGLE
74
73.5
73
C TOP TUBE HORIZONTAL
592
617
632
D BB HEIGHT ABOVE GROUND
278
278
278
E STAND OVER HEIGHT
765
774
805
F WHEEL BASE
1099
1119
1129
G CHAIN STAY LENGTH
435
435
435
H SEAT POST DIAMETER
30.9
30.9
30.9
I HEAD TUBE LENGTH
115
125
135
J SEAT TUBE LENGTH
457
495
546

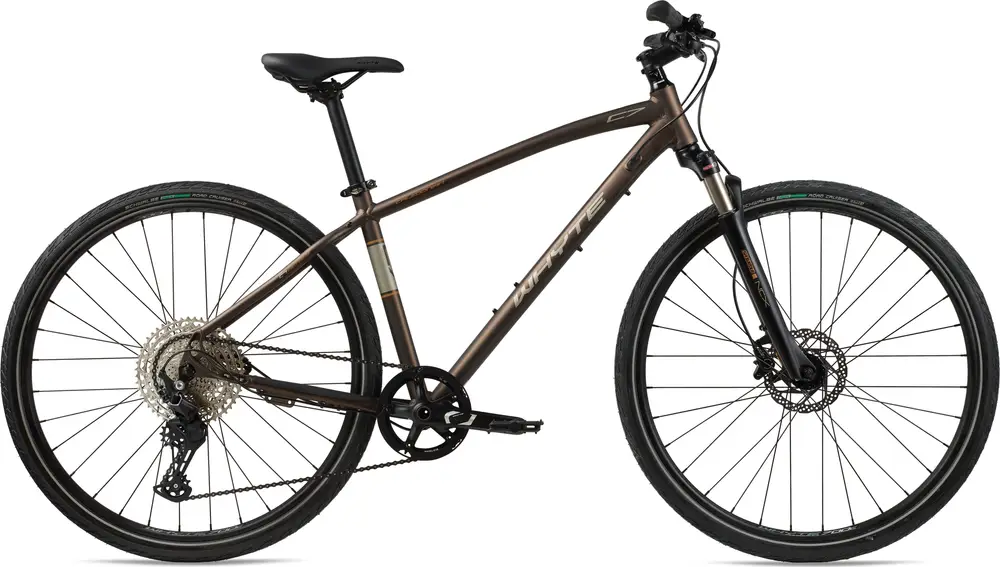

Whyte CALEDONIAN v3

A 700c aluminum frame hybrid bike with upper mid-range components and shimano hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NCX
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Deore
Brakes	Shimano Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Custom Whyte Dropouts and Integrated Kickstand Mount
Fork	SR Suntour NCX-D LO, 63mm Travel, Alloy Steerer, Hydro Lockout Travel: 63mm Spring Type: Coil
Shock	N/A
Bottom Bracket	Sealed Cartridge Bearings, 68mm
Headset	FSA No.10, Semi Integrated, 1 1/8" Caged Bearings
Stem	Whyte Alloy, +6 Degree, 70mm
Handlebar	Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide
Saddle	Whyte Custom
Seatpost	Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L 400mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Custom Ergo Dual Density Lock-on

Rear Derailleur	Shimano Deore RD-M5100-SGS, 11 Speed
Front Derailleur	N/A
Crank	Alloy Narrow/Wide 40T Chainring with Guard, 11 Speed
Shifters	Shimano Deore SL-M5100, 11 Speed
Cassette	Shimano CS-M5100, 11-51, 11 Speed
Chain	SunRace, 11 Speed
Brakes	Shimano MT400, Hydraulic, 160mm Disc Type: Shimano Hydraulic Disc
Brake Levers	Shimano MT400

Rims	Whyte 23 x 700c, 32 hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Tires	Schwalbe Road Cruiser TOUR, 700 x 40c, Green Compound, K-Guard puncture protection

2021 WhyteCALEDONIAN v3

2021 Whyte
CALEDONIAN v3
