SRAM Apex 1 Hydraulic, 160mm Flat Mount, Internal Routing

Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black

Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts

Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole

WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte 6061 Alloy, 25mm Offset, 27.2mm 52/54 350mm, 56 400mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension

WTB Horizon TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

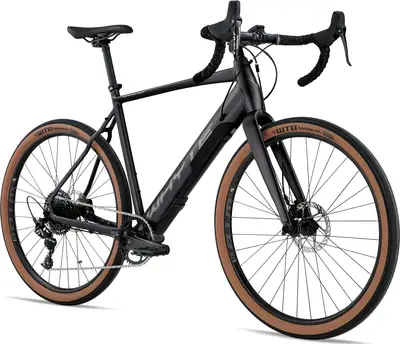

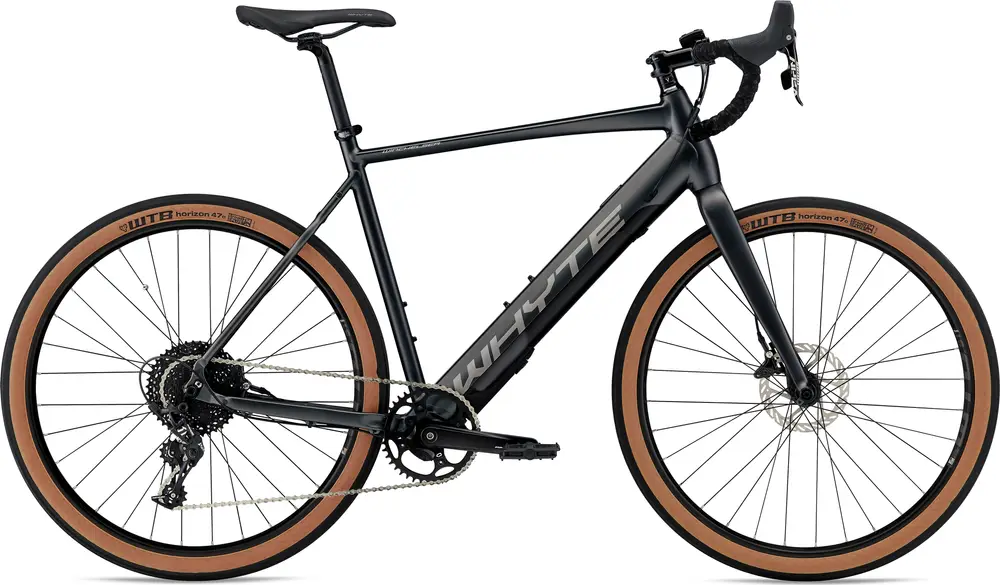

The Winchelsea combines our Glencoe Road Plus bike with the Fazua eBike system to create a super stylish road bike that will take you on road and path adventures with a little help when you need it.1 x 11 gearing offers simplicity and efficiency that cannot be rivalled. Full Hydraulic brakes will give you braking control and consistent modulation whatever the weather.We've been careful not to compromise our geometry formula by fitting drive units or batteries and have designed our eBikes to feel and handle like our award winning mechanical bikes - with range extending, climb flattening Fazua assistance on hand when you need it most.
[split]
e-BIKE SPECIFIC SPECIFICATION
BATTERY
36 volts, 7Ah, 252Wh
OUTPUT
Rated Continuous Output: 250W. Max. Output: 400W
MAX TORQUE
60Nm
SPECIFICATION
COLOUR
Matt Granite Silver/Grey
CASSETTE
SunRace CSMS7, 11-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts
CHAIN
SunRace CN11, Black, 11 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
CRANKSET
Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black
REAR SHOCK
N/A
BOTTOM BRACKET
Fazua Evation System
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 25mm Offset, 27.2mm 52/54 350mm, 56 400mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole
SADDLE
Whyte Custom, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole
HANDLEBAR
Whyte Road 500, 31.8mm, 500mm Wide
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension
RIMS
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS
Whyte Anti Slip, Cross Bar Tape
TYRE
WTB Horizon TCS System 650b x 47c, Light/Fast , Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
BRAKES FRONT
SRAM Apex 1 Hydraulic, 160mm Flat Mount, Internal Routing
SHIFT LEVERS
SRAM Apex 1, Hydraulic, 11 Speed
BRAKES REAR
SRAM Apex 1 Hydraulic, 160mm Flat Mount, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
SRAM Apex 1, Alloy
REAR MECH
SRAM Apex 1, Long Cage, 11 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
16.3
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
52
54
56
5’5″ – 5’8”
5’8″ – 5’11”
5’11” – 6’2″
165 – 172 cm
172 – 180 cm
180 – 187 cm
GEOMETRY
SIZE
52
54
56
A HEAD TUBE ANGLE
70
70
70
B SEAT TUBE ANGLE
74
74
74
C TOP TUBE HORIZONTAL
566
595
604
D BB HEIGHT ABOVE GROUND
270
270
270
E STAND OVER HEIGHT
797
814
829
F WHEEL BASE
1047
1077
1087
G CHAIN STAY LENGTH
425
425
425
H SEAT POST DIAMETER
27.2
27.2
27.2
I HEAD TUBE LENGTH
145
160
175
J SEAT TUBE LENGTH
520
540
560
STACK
577
591
605
REACH
400
425
430

Whyte WINCHELSEA v1

52cm

54cm

56cm

An aluminum frame endurance e-bike with upper mid-range components and sram apex hydraulic disc brakes.

Weight	35.9 lbs
Frame	Aluminum
Fork	Aluminum
Wheels	650c Aluminum
Drivetrain	1 × 11
Groupset	Apex
Battery	252Wh
Brakes	SRAM Apex Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts
Fork	Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Fazua Evation System
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension
Handlebar	Whyte Road 500, 31.8mm, 500mm Wide
Saddle	Whyte Custom, Triple Panel Design
Seatpost	Whyte 6061 Alloy, 25mm Offset, 27.2mm 52/54 350mm, 56 400mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Anti Slip, Cross Bar Tape

Rear Derailleur	SRAM Apex 1, Long Cage, 11 Speed
Front Derailleur	N/A
Crank	Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black
Shifters	SRAM Apex 1, Hydraulic, 11 Speed
Cassette	SunRace CSMS7, 11-42, 11 Speed
Chain	SunRace CN11, Black, 11 Speed
Brakes	SRAM Apex 1 Hydraulic, 160mm Flat Mount, Internal Routing Type: SRAM Apex Hydraulic Disc
Brake Levers	SRAM Apex 1, Alloy

Rims	WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole
Tires	WTB Horizon TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
