Tektro Auriga HD-M290, 160mm Disc, Flat Mount, Internal Routing

Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black

Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount with 160mm Post Adaptor, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with Custom Whyte Dropouts

Alloy, Double Sealed Cartridge Bearings, 28 Hole

Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Shimano SLX RD-M7000-GS, Shadow Plus, 11 Speed

Alloy, Double Sealed Cartridge Bearings, 32 Hole

WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte 6061 Alloy, 25mm Offset, 27.2mm S/M/L 350mm, XL 400mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Whyte Alloy, 6 ° Rise S 45mm, M/L 60mm Extension

WTB Horizon TCS System 650b x 47c, TCS Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

The Hoxton takes our award-winning Fast Urban formula of MTB geometry, rugged reliability and road plus wheels and integrates the super-stealthy Fazua Evation system.Stylish tan wall tyres give this city bike a real contemporary look and the high air volume comfort they add takes the sting out of even the roughest roads. It’s never been easier to cut across town - enjoying a Whyte eBike tailwind all the way.We’ve been careful not to compromise our geometry formula by fitting drive units or batteries and have designed our eBikes to feel and handle like our award winning mechanical bikes - with range extending, climb flattening Fazua assistance on hand when you need it most.
[split]
e-BIKE SPECIFIC SPECIFICATION
BATTERY
36 volts, 7Ah, 252Wh
OUTPUT
Rated Continuous Output: 250W. Max. Output: 400W
MAX TORQUE
60Nm
SPECIFICATION
COLOUR
Matt Granite Copper/Grey
CASSETTE
Shimano SLX CS-M7000, 11-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with Custom Whyte Dropouts
CHAIN
SunRace CN11, Black, 11 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount with 160mm Post Adaptor, Eyelets for Mudguards
CRANKSET
Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black
REAR SHOCK
N/A
BOTTOM BRACKET
Fazua Evation System
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 25mm Offset, 27.2mm S/M/L 350mm, XL 400mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, 32 Hole
SADDLE
Whyte Custom, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, 28 Hole
HANDLEBAR
Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, 6 ° Rise S 45mm, M/L 60mm Extension
RIMS
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS
Whyte Custom Dual Density Lock-on
TYRE
WTB Horizon TCS System 650b x 47c, TCS Light/Fast , Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
BRAKES FRONT
Tektro Auriga HD-M290, 160mm Disc, Flat Mount, Internal Routing
SHIFT LEVERS
Shimano SLX SL-M7000, 11 Speed
BRAKES REAR
Tektro Auriga HD-M290, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Tektro Auriga HD-M290
REAR MECH
Shimano SLX RD-M7000-GS, Shadow Plus, 11 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
16.3
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
SMALL
MEDIUM
LARGE
5’1″ – 5’5″
5’5″ – 5’9″
5’9″ – 6’1″
155- 165 cm
165 – 175 cm
175 – 185 cm
GEOMETRY
SIZE
S
M
L
A HEAD TUBE ANGLE
69.5
70
70
B SEAT TUBE ANGLE
74
73.5
73
C TOP TUBE HORIZONTAL
569
595
613
D BB HEIGHT ABOVE GROUND
266.5
266.5
271.5
E STAND OVER HEIGHT
716.5
748.5
786
F WHEEL BASE
1061.4
1078.4
1094.3
G CHAIN STAY LENGTH
430
430
430
H SEAT POST DIAMETER
27.2
27.2
27.2
I HEAD TUBE LENGTH
145
165
185
J SEAT TUBE LENGTH
406.4
444.5
495
STACK
612
579
593
REACH
409
424
432

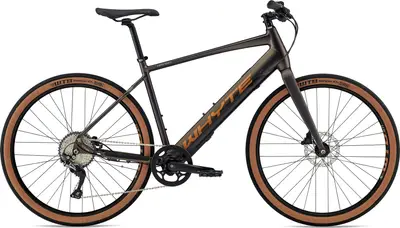

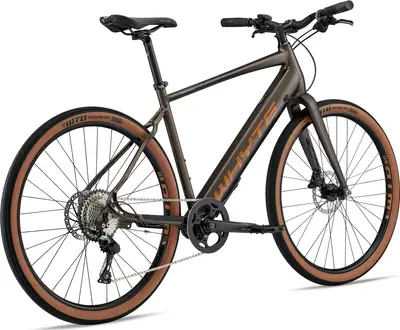

Whyte Hoxton v1

A 650b aluminum frame commuter e-bike with upper mid-range components and tektro hydraulic disc brakes.

Weight	35.9 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	650b Aluminum
Drivetrain	1 × 11
Groupset	SLX
Battery	252Wh
Brakes	Tektro Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with Custom Whyte Dropouts
Fork	Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount with 160mm Post Adaptor, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Fazua Evation System
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, 6 ° Rise S 45mm, M/L 60mm Extension
Handlebar	Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
Saddle	Whyte Custom, Triple Panel Design
Seatpost	Whyte 6061 Alloy, 25mm Offset, 27.2mm S/M/L 350mm, XL 400mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Custom Dual Density Lock-on

Rear Derailleur	Shimano SLX RD-M7000-GS, Shadow Plus, 11 Speed
Front Derailleur	N/A
Crank	Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black
Shifters	Shimano SLX SL-M7000, 11 Speed
Cassette	Shimano SLX CS-M7000, 11-42, 11 Speed
Chain	SunRace CN11, Black, 11 Speed
Brakes	Tektro Auriga HD-M290, 160mm Disc, Flat Mount, Internal Routing Type: Tektro Hydraulic Disc
Brake Levers	Tektro Auriga HD-M290

Rims	WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 28 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 32 Hole
Tires	WTB Horizon TCS System 650b x 47c, TCS Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

2020 WhyteHoxton v1

2020 Whyte
Hoxton v1
