SRAM Rival 1 Hydraulic, 160mm Flat Mount, Internal Routing

FSA Alloy cranks, 170mm, ISIS with Narrow Wide 38t Alloy for Fazua, Black

Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts

Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole

Whyte 500 by Controltech, 6061 Alloy, Gravel riser bar, 31.8mm x 500mm

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole

WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte 6061 Alloy, 20mm Offset, 30.9mm 52/54 350mm, 56 400mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension

WTB Sendero TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

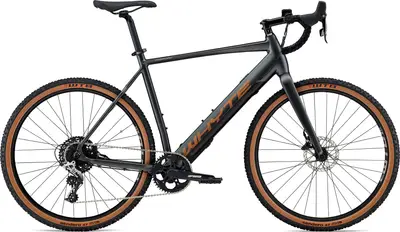

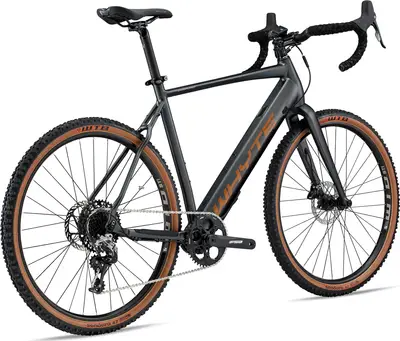

A truly ground-breaking Gravel/Adventure E-bike with MTB-inspired geometry, tubeless ready wheels and tyres, hydraulic disc brakes and SRAM's Rival 1 groupset, paired to the Fazua e-Bike motor with a 252Wh battery. Using high air volume 650b x 47c tyres the Gosford makes light of both rough road surfaces and bridle path excursions. Whether heading out for a summer off-road ride or a mid-winter blast, the Gosford gives the rider year-round, all-round power-assisted flexibility.We've been careful not to compromise our geometry formula by fitting drive units or batteries and have designed our eBikes to feel and handle like our award winning mechanical bikes - with range extending, climb flattening Fazua assistance on hand when you need it most.
[split]
e-BIKE SPECIFIC SPECIFICATION
BATTERY
36 volts, 7Ah, 252Wh
OUTPUT
Rated Continuous Output: 250W. Max. Output: 400W
MAX TORQUE
60Nm
SPECIFICATION
COLOUR
Matt Granite Copper/Grey
CASSETTE
SRAM PG-1130, 11-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts
CHAIN
SunRace CN11, Black, 11 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
CRANKSET
FSA Alloy cranks, 170mm, ISIS with Narrow Wide 38t Alloy for Fazua, Black
REAR SHOCK
N/A
BOTTOM BRACKET
Fazua Evation System
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 20mm Offset, 30.9mm 52/54 350mm, 56 400mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole
SADDLE
Whyte Custom, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole
HANDLEBAR
Whyte 500 by Controltech, 6061 Alloy, Gravel riser bar, 31.8mm x 500mm
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension
RIMS
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS
Whyte Anti Slip, Cross Bar Tape
TYRE
WTB Sendero TCS System 650b x 47c, Light/Fast , Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
BRAKES FRONT
SRAM Rival 1 Hydraulic, 160mm Flat Mount, Internal Routing
SHIFT LEVERS
SRAM Rival 1, Hydraulic, 11 Speed
BRAKES REAR
SRAM Rival 1 Hydraulic, 160mm Flat Mount, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
SRAM Rival 1, Alloy
REAR MECH
SRAM Rival 1, Long Cage, 11 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
16.6
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
52
54
56
5’5″ – 5’8”
5’8″ – 5’11”
5’11” – 6’2″
165 – 172 cm
172 – 180 cm
180 – 187 cm
GEOMETRY
SIZE
52
54
56
A HEAD TUBE ANGLE
70
70
70
B SEAT TUBE ANGLE
74
74
74
C TOP TUBE HORIZONTAL
566
595
604
D BB HEIGHT ABOVE GROUND
270
270
270
E STAND OVER HEIGHT
797
814
829
F WHEEL BASE
1047
1077
1087
G CHAIN STAY LENGTH
425
425
425
H SEAT POST DIAMETER
30.9
30.9
30.9
I HEAD TUBE LENGTH
145
160
175
J SEAT TUBE LENGTH
520
540
560
STACK
577
591
605
REACH
400
425
430

Whyte Gosford v1

52cm

54cm

56cm

An aluminum frame endurance e-bike with upper mid-range components and sram rival hydraulic disc brakes.

Weight	36.6 lbs
Frame	Aluminum
Fork	Aluminum
Wheels	650c Aluminum
Drivetrain	1 × 11
Groupset	Rival
Battery	252Wh
Brakes	SRAM Rival Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts
Fork	Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Fazua Evation System
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension
Handlebar	Whyte 500 by Controltech, 6061 Alloy, Gravel riser bar, 31.8mm x 500mm
Saddle	Whyte Custom, Triple Panel Design
Seatpost	Whyte 6061 Alloy, 20mm Offset, 30.9mm 52/54 350mm, 56 400mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Anti Slip, Cross Bar Tape

Rear Derailleur	SRAM Rival 1, Long Cage, 11 Speed
Front Derailleur	N/A
Crank	FSA Alloy cranks, 170mm, ISIS with Narrow Wide 38t Alloy for Fazua, Black
Shifters	SRAM Rival 1, Hydraulic, 11 Speed
Cassette	SRAM PG-1130, 11-42, 11 Speed
Chain	SunRace CN11, Black, 11 Speed
Brakes	SRAM Rival 1 Hydraulic, 160mm Flat Mount, Internal Routing Type: SRAM Rival Hydraulic Disc
Brake Levers	SRAM Rival 1, Alloy

Rims	WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole
Tires	WTB Sendero TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

2020 WhyteGosford v1

2020 Whyte
Gosford v1
