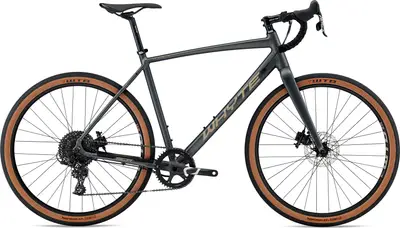

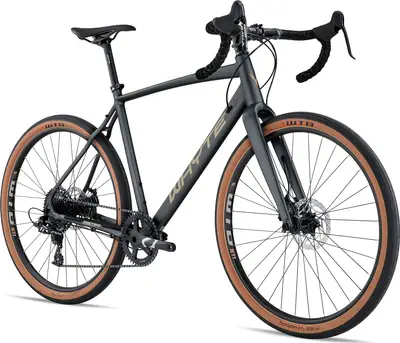

Name: 2020 Whyte GLENCOE v2
Brand: Whyte
Rating: 4.6240000000000006 (1 reviews)

TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing

Whyte, Forged Cranks, Direct Mount 44T Narrow Wide Chainring, 11 Speed

Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing

Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, Centre-Lock, 32 Hole

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, Centre-lock, 32 Hole

WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte Custom, Light Weight Triple Density Base, Triple Panel Design

Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension

WTB Horizon TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

The Glencoe combines our Gravel/Adventure frame with Road Plus tyres. These high air volume 650b tyres have the same rolling circumference as a 700c X 28c setup and give huge levels of comfort and security on even the roughest road surfaces.1 x 11 gearing offers simplicity and efficiency that cannot be rivalled. TRP mechanical/hydraulic disc brakes add stopping power and control.Whether you're an inner-city, year-round commuter or a C or D back-road rider, the Glencoe is the perfect bike to give you control on unpredictable surfaces. The Glencoe is the most versatile all-round road bike we have ever made.
[split]
SPECIFICATION
COLOUR
Matt Granite Silver/Tan
CASSETTE
SunRace CSMS8, 11-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
CHAIN
SunRace CN11, Black, 11 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
CRANKSET
Whyte, Forged Cranks, Direct Mount 44T Narrow Wide Chainring, 11 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
Shimano SM-BB52, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, Centre-lock, 32 Hole
SADDLE
Whyte Custom, Light Weight Triple Density Base, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, Centre-Lock, 32 Hole
HANDLEBAR
Whyte Road 500, 31.8mm, 500mm Wide
SPOKES
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
RIMS
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS
Whyte Anti Slip, Cross Bar Tape
TYRE
WTB Horizon TCS System 650b x 47c, Light/Fast , Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
BRAKES FRONT
TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
SHIFT LEVERS
SRAM Apex 1, Mechanical, 11 Speed
BRAKES REAR
TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
SRAM Apex 1, Mechanical
REAR MECH
SRAM Apex 1, Long Cage, 11 Speed
PEDALS
None
WEIGHT
11
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
50
52
54
56
58
5’2″ – 5’5″
5’5″ – 5’8″
5’8″ – 5’11″
5’11″ – 6’2″
6’2″ – 6’5″
157 – 165 cm
165 – 172 cm
172 – 180 cm
180 – 187 cm
187 – 195 cm
GEOMETRY
SIZE
50
52
54
56
58
A HEAD TUBE ANGLE
70
70
70
70
70
B SEAT TUBE ANGLE
74
74
74
74
74
C TOP TUBE HORIZONTAL
557
566
595
604
623
D BB HEIGHT ABOVE GROUND
270
270
270
20
270
E STAND OVER HEIGHT
776
797
814
829
850
F WHEEL BASE
1040
1050
1080
1090
1110
G CHAIN STAY LENGTH
425
425
425
425
425
H SEAT POST DIAMETER
27.2
27.2
27.2
27.2
27.2
I HEAD TUBE LENGTH
130
145
160
175
190
J SEAT TUBE LENGTH
500
520
540
560
580
STACK
563
577
591
605
620
REACH
396
400.4
425
430
445

Whyte GLENCOE v2

50cm

52cm

54cm

56cm

58cm

An aluminum frame gravel bike with upper mid-range components and trp hy/rd hydraulic disc brakes.

Amazingly stable and comfortable ride ideal for rough roads

Weight	24.3 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	650b Aluminum
Drivetrain	1 × 11
Groupset	Apex
Brakes	TRP HY/RD Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing BB Standard: BSA, 68mm, Threaded
Fork	Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Shock	N/A
Bottom Bracket	Shimano SM-BB52, 68mm
Headset	FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Stem	Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
Handlebar	Whyte Road 500, 31.8mm, 500mm Wide
Saddle	Whyte Custom, Light Weight Triple Density Base, Triple Panel Design
Seatpost	Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp Type: Rigid
Pedals	None
Grips	Whyte Anti Slip, Cross Bar Tape

Rear Derailleur	SRAM Apex 1, Long Cage, 11 Speed
Front Derailleur	N/A
Crank	Whyte, Forged Cranks, Direct Mount 44T Narrow Wide Chainring, 11 Speed
Shifters	SRAM Apex 1, Mechanical, 11 Speed
Cassette	SunRace CSMS8, 11-42, 11 Speed
Chain	SunRace CN11, Black, 11 Speed
Brakes	TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing Type: TRP HY/RD Hydraulic Disc
Brake Levers	SRAM Apex 1, Mechanical

Rims	WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, Centre-Lock, 32 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, Centre-lock, 32 Hole
Tires	WTB Horizon TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
