SRAM Apex 1 Hydraulic, 160mm Rotor, Flat Mount, Internal Routing

SRAM Apex 1, X-SYNC, 40T Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed

Whyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing

Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 32 Hole

Whyte 500 by Controltech, 6061 Alloy, Gravel riser bar, 31.8mm x 500mm

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, XD Driver, 32 Hole

WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte Custom, Light Weight Triple Density Base, Triple Panel Design

Whyte 6061 Alloy, 20mm Offset, 30.9mm x 350mm, 2 Bolt Clamp

DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples

Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension

WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

The Friston takes everything we've learnt from MTBs and puts that knowledge into a great value Gravel/Adventure bike package. With hydraulic discs, ground-breaking geometry and SRAM's Apex 1 groupset.We have applied our unique Whyte frame geometry to the Friston, creating a supremely versatile all-terrain bike. It's equally at home riding your favourite bridle path, winter training or even commuting.A straight bladed carbon fork with a tapered steerer tube, internal hose routing and 12mm through axle, give this bike great front end stiffness and steering precision.
[split]
SPECIFICATION
COLOUR
Matt Petrol Reef/Orange
CASSETTE
SRAM XG-1150, 10-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
CHAIN
SRAM PC-1110, 11 Speed
FORK
Whyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
CRANKSET
SRAM Apex 1, X-SYNC, 40T Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
SRAM GXP, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 20mm Offset, 30.9mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, XD Driver, 32 Hole
SADDLE
Whyte Custom, Light Weight Triple Density Base, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 32 Hole
HANDLEBAR
Whyte 500 by Controltech, 6061 Alloy, Gravel riser bar, 31.8mm x 500mm
SPOKES
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM
Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
RIMS
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS
Whyte Anti Slip, Cross Bar Tape
TYRE
WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
BRAKES FRONT
SRAM Apex 1 Hydraulic, 160mm Rotor, Flat Mount, Internal Routing
SHIFT LEVERS
SRAM Apex 1, Full Hydraulic, 11 Speed
BRAKES REAR
SRAM Apex 1 Hydraulic, 160mm Rotor, Flat Mount, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
SRAM Apex 1, Hydraulic
REAR MECH
SRAM Apex 1, Long Cage, 11 Speed
PEDALS
None
WEIGHT
10.1
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
50
52
54
56
58
5’2″ – 5’5″
5’5″ – 5’8″
5’8″ – 5’11″
5’11″ – 6’2″
6’2″ – 6’5″
157 – 165 cm
165 – 172 cm
172 – 180 cm
180 – 187 cm
187 – 195 cm
GEOMETRY
SIZE
50
52
54
56
58
A HEAD TUBE ANGLE
70
70
70
70
70
B SEAT TUBE ANGLE
74
74
74
74
74
C TOP TUBE HORIZONTAL
557
566
595
604
623
D BB HEIGHT ABOVE GROUND
277
277
277
277
277
E STAND OVER HEIGHT
776
797
814
829
850
F WHEEL BASE
1046
1056
1087
1097
1117
G CHAIN STAY LENGTH
435
435
435
435
435
H SEAT POST DIAMETER
30.9
30.9
30.9
30.9
30.9
I HEAD TUBE LENGTH
130
145
160
175
190
J SEAT TUBE LENGTH
500
520
540
560
580
STACK
563
577
591
605
620
REACH
396
400
425
430
445

Whyte FRISTON v2

50cm

52cm

54cm

56cm

58cm

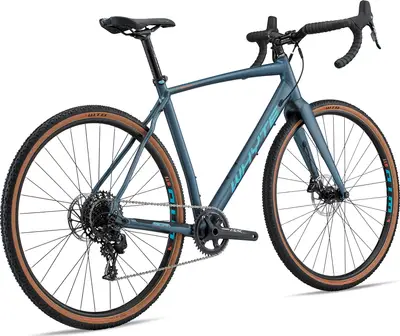

An aluminum frame gravel bike with upper mid-range components and sram apex hydraulic disc brakes.

Weight	22.3 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Apex
Brakes	SRAM Apex Hydraulic Disc

Rear Derailleur	SRAM Apex 1, Long Cage, 11 Speed
Front Derailleur	N/A
Crank	SRAM Apex 1, X-SYNC, 40T Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
Shifters	SRAM Apex 1, Full Hydraulic, 11 Speed
Cassette	SRAM XG-1150, 10-42, 11 Speed
Chain	SRAM PC-1110, 11 Speed
Brakes	SRAM Apex 1 Hydraulic, 160mm Rotor, Flat Mount, Internal Routing Type: SRAM Apex Hydraulic Disc
Brake Levers	SRAM Apex 1, Hydraulic

Rims	WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 32 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Through Axle, XD Driver, 32 Hole
Tires	WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing

2020 WhyteFRISTON v2

2020 Whyte
FRISTON v2
