2020 Whyte
E-180 RS v1

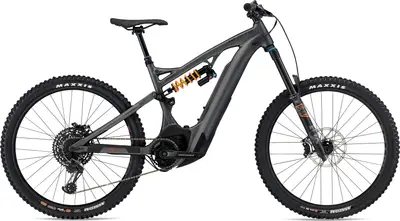

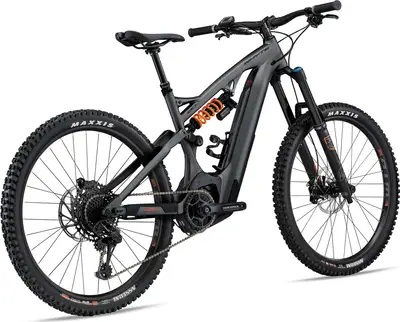

A 27.5″ aluminum frame full suspension enduro e-bike with ultra high-end components.
| MSRP | £5,750 (about $7,281) |
|---|---|
| Weight | 54.7 lbs |
| Frame | Aluminum |
| Suspension | Full, 180mm front |
| Fork | Fox Performance Elite Float 36 |
| Shock | Fox Float DHX Factory |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | X01 Eagle, Race Face |
| Motor | Bosch 250W 75Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Sep 2021 · Mick Kirkman
The Whyte E-180 RS V3 is self-shuttling gravity enduro machine with 170mm travel out back, paired with a 180mm fork and the Bosch system.
One of the best long travel e-bikes on the market. Sublime suspension matched with ultimate control.
In some situations, this much suspension, strength and capability requires some serious manhandling. Could be even better with a 29in front wheel.
Jun 2021 · Robin Weaver
Burly, Bosch-powered bike that’s ready to get rowdy
Spec
Removeable Bosch motor
Balanced feel and dimensions
Weight limits flickability
I’d boost the rear brake rotor size to 220mm
Dec 2019 · Felix Stix, Robin Schmitt, Jonas Müssig
Every inch of the Whyte E-180 RS V1 is trimmed to the bike's downhill performance. Can you even have fun with such a 180 mm travel beast outside of a bike park?
Mountain bike-like handling
Sensible and robust componentry
It won't hold you back
Rudimentary finish
Only two frame sizes
Loud on the descents
| Frame | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal BBX Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts |
|---|---|
| Fork | Fox Performance Elite 36 27.5", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Black Coating, 110mm x 15mm Boost, E-Thru Axle Travel: 180mm Spring Type: Air |
| Shock | Fox Float DHX-2, Factory,independently adjustable Compression and Rebound damping, Super-Light Steel spring Spring Type: Air |
| Bottom Bracket | N/A |
| Headset | FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings |
| Stem | RaceFace Atlas, 35mm Bar Bore, 35mm Extension |
| Handlebar | RaceFace Turbine R, 20mm Rise, 35mm Bar Bore, 800mm Wide |
| Saddle | Whyte Custom, Triple Panel Design |
| Seatpost | Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, High-Line Ball Socket Remote Lever Type: Dropper |
| Pedals | None |
| Grips | Whyte Lock-on V Grip |
| Rear Derailleur | SRAM X01 Eagle, 12 Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Raceface Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 34T for Bosch Gen 4, Black |
| Shifters | SRAM X01-E Eagle, Single Click, MMX, 12 Speed |
| Cassette | SRAM PG-1230 Eagle, 11-50, 12 Speed |
| Chain | SRAM Eagle, 12 Speed |
| Brakes | SRAM Code RSC, 4 Pot with Sintered Metal Pads, 200mm Rotor Type: Hydraulic Disc |
| Brake Levers | SRAM Code RSC, MMX |
| Rims | WTB KOM Trail i30 TCS 2.0 System, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole |
|---|---|
| Spokes | DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples |
| Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole |
| Rear Hub | Alloy, E-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole |
| Tires | Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down casing, 3C Maxx Terra, Dual Compound, Rear |
| Motor | Bosch Performance Line CX 2020 (Gen 4), 75 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support |
|---|---|
| Battery | Bosch 625 Wh internal PowerTube, Reaches full charge in 8.8 hours with supplied 2A Compact Charger, (or only 3.7 hours with optional aftermarket Fast Charger) |
| Display | Bosch Purion |
