Square Interface, Cartridge Bearings, 73mm

Shimano FC-MT101, Double 36-22, 9 Speed, S,M&L 170mm, XL 175mm

SR Suntour XCR-LO 27.5", 120mm Travel, Hydro Lockout, Fixed Rebound Damping, Black stanchions

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Get A Grip Seat Clamp System, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts

Whyte 6061 Alloy, 30mm Rise, 31.8mm, 760mm Wide

FSA No.10, Semi Integrated, 1 1/8" Caged Bearings

Whyte Trail 25, Tubeless compatible, 32 Hole

Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Whyte Alloy, S 35mm, M/L/XL 45mm Extension

WTB Trail Boss Comp 27.5" x 2.25" Front, WTB Ranger Comp 27.5" x 2.25" Rear

Whyte's design team have given the latest 600 series frame the Trail treatment. A 120mm fork, wider 760mm bar, shorter stem, wider grippier tyres and even our Enduro developed V-grips, make these the most trail-ready bikes in this price category.You'll find it hard to believe the 603 is Whyte's entry level mountain bike: with carefully chosen, branded parts and a high quality, latest generation frame it has all the hallmarks of Whyte's award winning DNA.The latest frame bristles with UK design features such as the "Get A Grip" seat post clamp system. This allows quick adjustment, fantastic weather proofing and a nice ergonomic lever which is easy to operate however cold your hands might be.
[split]
SPECIFICATION
COLOUR
Matt Olive Khaki/Lime
CASSETTE
Shimano CS-HG-200, 11-36, 9 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Get A Grip Seat Clamp System, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts
CHAIN
SunRace, 9 Speed
FORK
SR Suntour XCR-LO 27.5", 120mm Travel, Hydro Lockout, Fixed Rebound Damping, Black stanchions
CRANKSET
Shimano FC-MT101, Double 36-22, 9 Speed, S,M&L 170mm, XL 175mm
REAR SHOCK
N/A
BOTTOM BRACKET
Square Interface, Cartridge Bearings, 73mm
HEADSET
FSA No.10, Semi Integrated, 1 1/8" Caged Bearings
SEATPOST
Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp
REAR HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
SADDLE
Whyte Custom
FRONT HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
HANDLEBAR
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 760mm Wide
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy, S 35mm, M/L/XL 45mm Extension
RIMS
Whyte Trail 25, Tubeless compatible, 32 Hole
GRIPS
Whyte Lock-on V Grip
TYRE
WTB Trail Boss Comp 27.5" x 2.25" Front, WTB Ranger Comp 27.5" x 2.25" Rear
BRAKES FRONT
Tektro HD-M275, Hydraulic, 180mm Disc
SHIFT LEVERS
Shimano Altus SL-M2010, 9 Speed
BRAKES REAR
Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing
FRONT MECH
Shimano Altus FD-M2020
BRAKE LEVERS
Tektro HD-M275
REAR MECH
Shimano Altus RD-M2000-SGS, 9 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
13.7Kg
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
S
M
L
XL
5’2″ – 5’6″
5’6″ – 5’10”
5’10” – 6’2″
6’2″ – 6’5″
157 – 168 cm
168 – 178 cm
178 – 188 cm
188 – 196 cm
GEOMETRY
SIZE
S
M
L
XL
A HEAD TUBE ANGLE
66.5
66.5
66.5
66.5
B SEAT TUBE ANGLE
74
74
74
74
C TOP TUBE HORIZONTAL
604
623
641
660
D BB HEIGHT ABOVE GROUND
303.5
303.5
303.5
303.5
E STAND OVER HEIGHT
780
802
826
864
F WHEEL BASE
1148
1168
1188
1208
G CHAIN STAY LENGTH
435
435
435
435
H SEAT POST DIAMETER
30.9
30.9
30.9
30.9
I HEAD TUBE LENGTH
115
125
135
145
J SEAT TUBE LENGTH
406
444
482.6
533
STACK
609
619
628
637
REACH
430
445
461
477

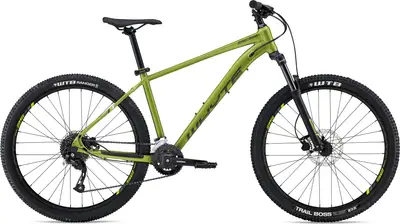

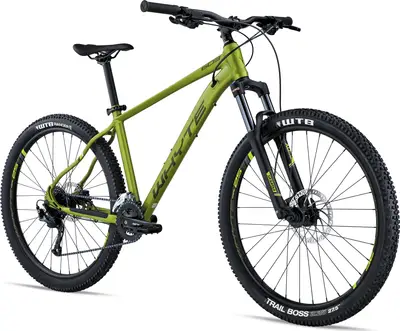

Whyte 603 v2

A 27.5″ aluminum frame hardtail crosscountry bike with modest components.

Weight	30.2 lbs
Frame	Aluminum
Suspension	Hardtail
Fork	Suntour XCR
Wheels	27.5″ Aluminum
Drivetrain	2 × 9
Groupset	Altus
Brakes	Tektro Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Get A Grip Seat Clamp System, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts
Fork	SR Suntour XCR-LO 27.5", 120mm Travel, Hydro Lockout, Fixed Rebound Damping, Black stanchions
Shock	N/A
Bottom Bracket	Square Interface, Cartridge Bearings, 73mm
Headset	FSA No.10, Semi Integrated, 1 1/8" Caged Bearings
Stem	Whyte Alloy, S 35mm, M/L/XL 45mm Extension
Handlebar	Whyte 6061 Alloy, 30mm Rise, 31.8mm, 760mm Wide
Saddle	Whyte Custom
Seatpost	Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Lock-on V Grip

Rear Derailleur	Shimano Altus RD-M2000-SGS, 9 Speed
Front Derailleur	Shimano Altus FD-M2020
Crank	Shimano FC-MT101, Double 36-22, 9 Speed, S,M&L 170mm, XL 175mm
Shifters	Shimano Altus SL-M2010, 9 Speed
Cassette	Shimano CS-HG-200, 11-36, 9 Speed
Chain	SunRace, 9 Speed
Brakes	Tektro HD-M275, Hydraulic, 180mm Disc Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-M275

Rims	Whyte Trail 25, Tubeless compatible, 32 Hole
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Tires	WTB Trail Boss Comp 27.5" x 2.25" Front, WTB Ranger Comp 27.5" x 2.25" Rear
