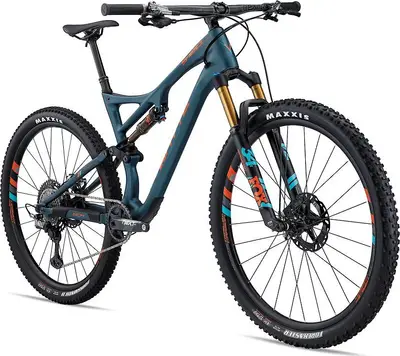

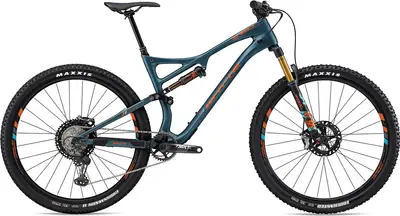

2019 Whyte

S-120 C Works

A 29″ carbon frame full suspension trail bike with ultra high-end components.
Compare the full range

Weight26.9 lbs
FrameCarbon
SuspensionFull, 120 / 120mm
ForkFox Factory Float 34
ShockFox Float DPS Factory
Wheels29″ Carbon
Drivetrain1 × 12
GroupsetXTR, Race Face
BrakesHydraulic Disc
SeatpostDropper
Learn about Whyte
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
S-120 C Works
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

S-120 C Works

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
Enduro Mountainbike Magazine
Whyte S-120 RS in review

Oct 2019 · Trev Worsey

While some of the bikes in this group test can be considered XC bikes with big intentions, there’s no hiding the enduro DNA of the Whyte S-120C.

Highs
  • Makes every trail fun

  • Geometry makes it more capable

Lows
  • Front tire lacks bite

  • Not much lighter than an enduro bike

Read Review

Singletrack World
Review | The 2019 Whyte S-120 C RS is an absolute yahoo-factory

Jun 2019 · Wil Barrett

The Whyte S-120 is an all-new for 2019. With 120mm of travel, 29in wheels and radical geometry, it's designed as a go-fast trail shredder.

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Carbon Fiber

BB StandardBSA, 73mm, Threaded

Fork

FOX Float Factory SC 34, Step Cast, 29", Kashima, 3-position lever with open mode adjust, 44mm offset, 15mm x 110mm

Travel120mm

Spring TypeAir

Shock

FOX Float DPS Factory, Kashima, EVOL LV, adjustable rebound, 3-position lever with open mode adjust

Travel120mm

Spring TypeAir

Bottom Bracket

Race Face BSA, 73mm, 30mm diameter

Headset

FSA No. 42 Orbit ZS Plus, integrated, sealed cartridge bearings

Stem

Whyte Gravity, 40mm length

Handlebar

Race Face NEXT R Carbon, 35mm diameter, 800mm wide, 20mm rise

Saddle

Whyte Custom Team, lightweight foam, chromoly rails, triple panel design

Seatpost

Bike Yoke Revive dropper, XTR MT800 I-Spec EV remote, 125mm (S), 160mm (M, L, XL)

TypeDropper

Pedals

None included

Grips

Whyte Lock-on V

Groupset

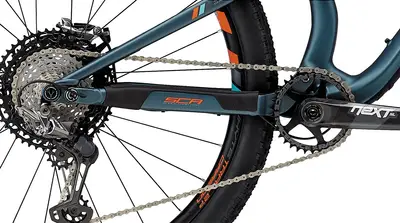

Rear Derailleur

Shimano XTR M9100, Shadow Plus, 12-speed

Front Derailleur

N/A

Crank

Race Face NEXT R Carbon, 175mm

Shifters

Shimano XTR M9100, I-Spec EV, 12-speed

Cassette

Shimano XTR M9100, 10-51 tooth, 12-speed

Chain

Shimano XTR CN-M9100, 12-speed

Chain Guide

N/A

Brakes

Shimano XTR BR-9120, 4-piston with metal pads and cooling fins, 180mm rotors, 160mm rear rotor (S, M, L)

TypeHydraulic Disc

Brake Levers

Shimano XTR, I-Spec EV

Wheels
Rims

Whyte 26mm Carbon Hookless, 28 hole, offset, tubeless ready, 3M rim strip with valves included

Spokes

DT Swiss Competition Butted 2.0-1.8-2.0mm, black stainless, brass nipples

Front Hub

Shimano MT900, Center Lock, 15mm x 110mm Boost front, 12mm x 148mm Boost rear

Rear Hub

Shimano MT900, Center Lock, 15mm x 110mm Boost front, 12mm x 148mm Boost rear

Tires

Front: Maxxis Forekaster TR 29 x 2.35" 60 tpi, Dual Compound, EXO, Rear: Maxxis Crossmark II TR 29 x 2.25" 60 tpi, Dual Compound, EXO
