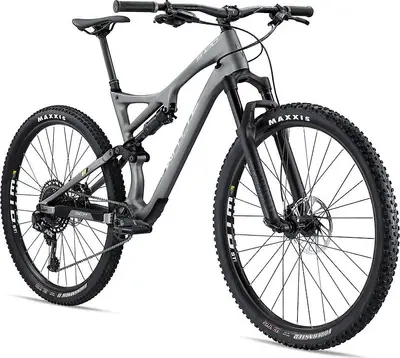

S-120 C R
A 29″ carbon frame full suspension trail bike with upper mid-range components.
Compare the full range
Frame | Carbon |
---|---|
Suspension | Full, 120 / 120mm |
Fork | RockShox Revelation Charger RC |
Shock | RockShox Deluxe |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | NX Eagle, Truvativ Descendant |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2019 · Trev Worsey
While some of the bikes in this group test can be considered XC bikes with big intentions, there’s no hiding the enduro DNA of the Whyte S-120C.
Makes every trail fun
Geometry makes it more capable
Front tire lacks bite
Not much lighter than an enduro bike
Jun 2019 · Wil Barrett
The Whyte S-120 is an all-new for 2019. With 120mm of travel, 29in wheels and radical geometry, it's designed as a go-fast trail shredder.
Frame | Carbon Fiber BB Standard: BSA, 73mm, Threaded |
---|---|
Fork | RockShox Revelation RC 29", DebonAir, Charger, Fast Black coating, 42mm offset, 15mm x 110mm, Maxle Lite Travel: 120mm Spring Type: Air |
Shock | RockShox Deluxe RT, DebonAir, Fast Black coating, adjustable rebound, 2-position compression Travel: 120mm Spring Type: Air |
Bottom Bracket | SRAM DUB, BSA, 73mm |
Headset | FSA No. 42 Orbit ZS Plus, integrated, sealed cartridge bearings |
Stem | Whyte Gravity, 40mm length |
Handlebar | Whyte 6061 alloy, 31.8mm diameter, 780mm wide, 15mm rise |
Saddle | Whyte Custom, dual density, triple panel design |
Seatpost | Bike Yoke Devine dropper, MMX trigger remote, 125mm (S), 150mm (M, L, XL) Type: Dropper |
Pedals | None included |
Grips | Whyte Lock-on V |
Rear Derailleur | SRAM NX Eagle, 12-speed |
---|---|
Front Derailleur | N/A |
Crank | SRAM Descendant 6K Eagle, X-sync 2, DUB, 170mm |
Shifters | SRAM NX Eagle, MMX, 12-speed |
Cassette | SRAM NX-1230 Eagle, 11-50 tooth, 12-speed |
Chain | SRAM Eagle, 12-speed |
Chain Guide | N/A |
Brakes | SRAM Guide T, 4-piston, 180mm rotors (front and rear) Type: Hydraulic Disc |
Brake Levers | SRAM Guide T, Matchmaker |
Rims | WTB ST i29 TCS 2.0 System, pinned joint, tubeless ready, 32 hole |
---|---|
Spokes | DT Swiss Champion 2.0mm, black stainless, brass nipples |
Front Hub | Alloy, double sealed cartridge bearings, 15mm x 110mm front, 12mm x 148mm rear |
Rear Hub | Alloy, double sealed cartridge bearings, 15mm x 110mm front, 12mm x 148mm rear |
Tires | Front: Maxxis Forekaster TR 29 x 2.3" 60 tpi, Dual Compound, EXO, Rear: Maxxis Crossmark II TR 29 x 2.25" 60 tpi, Dual Compound, EXO |
