STEPS Drive Unit E-6100 with Speed Sensor and Magnet

Tektro Auriga, 160mm Disc, Flat Mount, Internal Routing

KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed

Whyte Forged 44T with Double Sided Chain Guard, 10 Speed

Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable Routing

6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount

Alloy, Double Sealed Cartridge Bearings, 32 Hole

Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide

FSA No. 42 B CUP for 1 1/2" Lower and 1 1/8" Upper

Shimano RD-T6000, Deore, SGS 10-Speed, Shadow

WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole

Whyte 6061 Alloy, 1pcs 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

Shimano SL-T6000, Deore, 10 Speed with STEPS SC-E6010 Display

2.0mm, Black Stainless with Brass Nipples

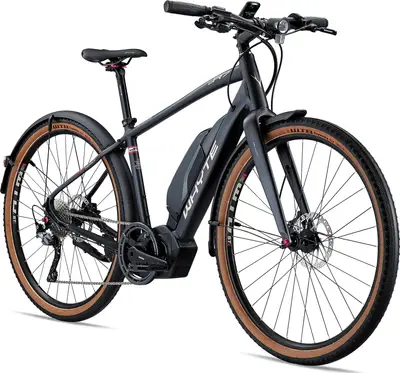

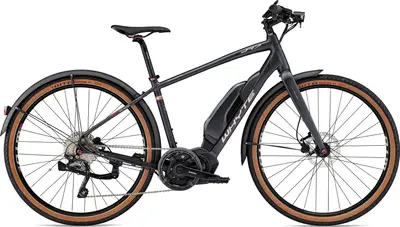

Using Shimano's STEPS e-Bike Drive Unit the Highgate is able to take advantage of the pedal assist without compromising the weight distribution and therefore the handling of this compact fit bike - ideal for a smaller rider, or one who prefers a more upright riding position.The Highgate comes fitted with 650b wheels and 47c RoadPlus, WTB Byway tyres, offering greater comfort, better grip and increased security on rough urban roads and light off-road rides. Integrated lighting, controlled from the STEPS head unit gives fingertip control of the lights for year-round usage. These powerful lights make night riding easy and can also be used as daytime running lights for extra visibility
[split]
REVIEWS
HIGHGATEWith a compact frame and Shimano STEPS system at its core, Whyte have brought together an expertly designed bike that can comfortably go for 77 miles on a single charge. Featuring integrated lights, powerful disc brakes and Road Plus tyres, the Highgate is a road bike built to cope with the trials and tribulations of the urban jungle. LINKSeptember 2018
e-BIKE SPECIFIC SPECIFICATION
BATTERY INFO
36 volts, 11.6ah, 418wh
RANGE
75km (46miles) in High, 105km (65miles) in Normal and 150km (93 miles) in Eco
OUTPUT
250 watts
MAX TORQUE
60nm in High mode
SPECIFICATION
COLOUR
Matt Granite with Silver/Magenta
CASSETTE
Shimano CS-HG500, 11-34, 10 Speed
FRAME
6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount
CHAIN
KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
FORK
Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable Routing
CRANKSET
Whyte Forged 44T with Double Sided Chain Guard, 10 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
STEPS Drive Unit E-6100 with Speed Sensor and Magnet
HEADSET
FSA No. 42 B CUP for 1 1/2" Lower and 1 1/8" Upper
SEATPOST
Whyte 6061 Alloy, 1pcs 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, 32 Hole
SADDLE
Whyte Custom, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, 32 Hole
HANDLEBAR
Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
SPOKES
2.0mm, Black Stainless with Brass Nipples
STEM
Whyte Alloy 6061, S 70mm, M 80mm, L 90mm
RIMS
WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS
Whyte Custom Dual Density Lock-on
TYRE
WTB Byway, Tan wall, 650 x 47c
BRAKES FRONT
Tektro Auriga, 160mm Disc, Flat Mount, Internal Routing
SHIFT LEVERS
Shimano SL-T6000, Deore, 10 Speed with STEPS SC-E6010 Display
BRAKES REAR
Tektro Auriga, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Tektro Auriga
REAR MECH
Shimano RD-T6000, Deore, SGS 10-Speed, Shadow
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
18.4
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
S
M
L
5’0″ – 5’4"
5’4″ – 5’8″
5’8″ – 6’0”
152 – 163 cm
163 – 173 cm
173 – 183 cm
GEOMETRY
SIZE
S
M
L
A HEAD TUBE ANGLE
69
69.5
70
B SEAT TUBE ANGLE
74.5
74
73.5
C TOP TUBE HORIZONTAL
553
579
605
D BB HEIGHT ABOVE GROUND
263
263
263
E STAND OVER HEIGHT
720
741
774
F WHEEL BASE
1067
1078
1095
G CHAIN STAY LENGTH
450
450
450
H SEAT POST DIAMETER
27.2
27.2
27.2
I HEAD TUBE LENGTH
140
160
180
J SEAT TUBE LENGTH
393.7
431.8
469.9

Whyte HIGHGATE COMPACT v1

A 650b aluminum frame hybrid e-bike with upper mid-range components and tektro hydraulic disc brakes.

Weight	40.6 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	650b Aluminum
Drivetrain	1 × 10
Groupset	Deore
Battery	418Wh
Brakes	Tektro Hydraulic Disc

Frame	6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount BB Standard: STEPS, Press Fit
Fork	Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable Routing
Shock	N/A
Bottom Bracket	STEPS Drive Unit E-6100 with Speed Sensor and Magnet
Headset	FSA No. 42 B CUP for 1 1/2" Lower and 1 1/8" Upper
Stem	Whyte Alloy 6061, S 70mm, M 80mm, L 90mm
Handlebar	Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
Saddle	Whyte Custom, Triple Panel Design
Seatpost	Whyte 6061 Alloy, 1pcs 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Custom Dual Density Lock-on

Rear Derailleur	Shimano RD-T6000, Deore, SGS 10-Speed, Shadow
Front Derailleur	N/A
Crank	Whyte Forged 44T with Double Sided Chain Guard, 10 Speed
Shifters	Shimano SL-T6000, Deore, 10 Speed with STEPS SC-E6010 Display
Cassette	Shimano CS-HG500, 11-34, 10 Speed
Chain	KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
Brakes	Tektro Auriga, 160mm Disc, Flat Mount, Internal Routing Type: Tektro Hydraulic Disc
Brake Levers	Tektro Auriga

Rims	WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes	2.0mm, Black Stainless with Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, 32 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, 32 Hole
Tires	WTB Byway, Tan wall, 650 x 47c
