Square Interface, Cartridge Bearings, 68mm

TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing

FSA Vero Adventure Pro, Double 48-32, 47/49 170mm, 51 172.5mm, 53 175mm 9 Speed

Whyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts with Eyelets for Mudguards

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Flat Mount 160 Chainstay Disc Mount

Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 28 Hole

Whyte Anti Slip Comfort with 3M Reflective Logos

Whyte 6061 Alloy, Road, 31.8mm, Compact "Wing" Bar, 47/49/51cm 380mm, 53cm 400mm

FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 32 Hole

Whyte Disc Road, Low Profile, 21mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front

Whyte 6061 Alloy, 1pcs 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

2.0mm, PG, Black Stainless, Brass Nipples

Whyte Alloy Road -6° Rise, 47/49cm 80mm, 51cm 90mm, 53cm 100mm Extension

Schwalbe G-One Speed 700 x 30c, Race Guard

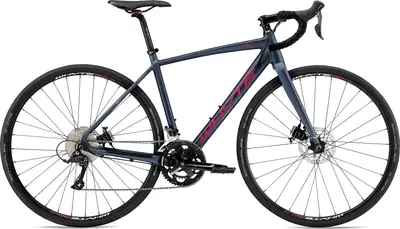

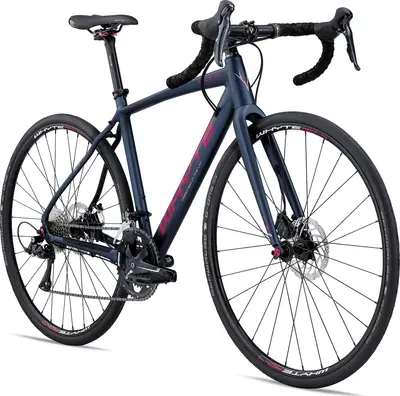

Compact geometry makes for a more comfortable female-focused fit. The Devon's TRP HyRd disc brakes use an innovative hybrid cable/hydraulic system to provide powerful braking whatever the conditions. A strong alloy 6061 frame with mudguard and rack eyelets, combined with wide-section offset rimmed RD-7 wheels, will give years of reliable all-season performance. Whether you're commuting longer distances, winter training or entering summer sportifs, the Whyte Road Disc range offers Cyclo Cross durability with Road geometry.
[split]
SPECIFICATION
COLOUR
Matt Midnight with Magenta/Grey
CASSETTE
Shimano CS-HG-200, 11-34, 9 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Flat Mount 160 Chainstay Disc Mount
CHAIN
KMC, 9 Speed
FORK
Whyte Straight Bladed Carbon Fork, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts with Eyelets for Mudguards
CRANKSET
FSA Vero Adventure Pro, Double 48-32, 47/49 170mm, 51 172.5mm, 53 175mm 9 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
Square Interface, Cartridge Bearings, 68mm
HEADSET
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST
Whyte 6061 Alloy, 1pcs 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 32 Hole
SADDLE
Whyte Custom, Triple Panel Design
FRONT HUB
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 28 Hole
HANDLEBAR
Whyte 6061 Alloy, Road, 31.8mm, Compact "Wing" Bar, 47/49/51cm 380mm, 53cm 400mm
SPOKES
2.0mm, PG, Black Stainless, Brass Nipples
STEM
Whyte Alloy Road -6° Rise, 47/49cm 80mm, 51cm 90mm, 53cm 100mm Extension
RIMS
Whyte Disc Road, Low Profile, 21mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
GRIPS
Whyte Anti Slip Comfort with 3M Reflective Logos
TYRE
Schwalbe G-One Speed 700 x 30c, Race Guard
BRAKES FRONT
TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
SHIFT LEVERS
Shimano Sora SL-R3000, 9 Speed
BRAKES REAR
TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing
FRONT MECH
Shimano Sora FD-R3000
BRAKE LEVERS
Shimano Sora ST-R3000
REAR MECH
Shimano Sora RD-R3000-GS, 9 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
10.8
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
47
49
51
53
4’10” – 5’1″
X5’1″ – 5’4″
5’4″ – 5’7″
5’7″ – 5’10”
146 – 154 cm
154 – 161 cm
161 – 169 cm
169 – 177 cm
GEOMETRY
SIZE
47cm
49cm
51cm
53cm
A HEAD TUBE ANGLE
71.5
72
72.5
73
B SEAT TUBE ANGLE
75
74.5
74
73.5
C TOP TUBE HORIZONTAL
507
515
525
535
D BB HEIGHT ABOVE GROUND
269
271.5
271.5
271.5
E STAND OVER HEIGHT
721
742.5
776.5
793.5
F WHEEL BASE
984.8
985
985.4
985.4
G CHAIN STAY LENGTH
425
425
425
425
H SEAT POST DIAMETER
27.2
27.2
27.2
27.2
I HEAD TUBE LENGTH
115
130
145
160
J SEAT TUBE LENGTH
470
490
510
530
STACK
537
550
566.7
582.8
REACH
361
362
362.5
364

Whyte DEVON COMPACT v1

47cm

49cm

51cm

53cm

An aluminum frame women’s endurance bike with mid-range components and trp hy/rd hydraulic disc brakes.

Weight	23.8 lbs
Frame	Aluminum
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 9
Groupset	Sora
Brakes	TRP HY/RD Hydraulic Disc

Rear Derailleur	Shimano Sora RD-R3000-GS, 9 Speed
Front Derailleur	Shimano Sora FD-R3000
Crank	FSA Vero Adventure Pro, Double 48-32, 47/49 170mm, 51 172.5mm, 53 175mm 9 Speed
Shifters	Shimano Sora SL-R3000, 9 Speed
Cassette	Shimano CS-HG-200, 11-34, 9 Speed
Chain	KMC, 9 Speed
Brakes	TRP HyRd Hydraulic, 160mm Rotor, Flat Mount, Linear Outer Cables with Kevlar Reinforcement, Internal Routing Type: TRP HY/RD Hydraulic Disc
Brake Levers	Shimano Sora ST-R3000

Rims	Whyte Disc Road, Low Profile, 21mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
Spokes	2.0mm, PG, Black Stainless, Brass Nipples
Front Hub	Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 28 Hole
Rear Hub	Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 32 Hole
Tires	Schwalbe G-One Speed 700 x 30c, Race Guard
