STEPS Drive Unit E-5000 with Speed Sensor and Magnet

KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed

Lasco square taper for Shimano STEPS, 38T with Double Sided Chain Guard, 10 Speed

SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout

6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand Mount

Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide

FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1.8” Caged Upper Bearings

Shimano RD-T6000, Deore, SGS 10-Speed, Shadow

Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp

Shimano SL-M6000, Deore, 10 Speed with STEPS SC-E6010 Display

2.0mm, Black Stainless with Brass Nipples

Schwalbe Road Cruiser TOUR, 700x47c, - Green Compound - K-Guard Puncture Protection

Using Shimano’s STEPS e-Bike Drive Unit the Coniston is able to take advantage of the pedal assist without compromising the weight distribution and therefore the handling. Our custom built e-Bike frames are loaded with unique design touches and British weatherproof features - such as the forward facing seat slot, continuous outer cables that keep the gear shifts working smoother for longer and optional custom matched mud guards. The ride-feel of these e-Bikes is second to none, with a fantastic quality lightweight frame which includes our uniquely shaped rear seat stays for comfort and performance, plus Whyte’s very own take on All Terrain geometry.
[split]
e-BIKE SPECIFIC SPECIFICATION
BATTERY INFO
36 volts, 11.6ah, 418wh
RANGE
75km (46miles) in High, 105km (65miles) in Normal and 150km (93 miles) in Eco
OUTPUT
250 watts
MAX TORQUE
40nm in High mode
SPECIFICATION
COLOUR
Matt Granite with Grey/Blue
CASSETTE
Shimano CS-HG500, 11-34, 10 Speed
FRAME
6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand Mount
CHAIN
KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
FORK
SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout
CRANKSET
Lasco square taper for Shimano STEPS, 38T with Double Sided Chain Guard, 10 Speed
REAR SHOCK
N/A
BOTTOM BRACKET
STEPS Drive Unit E-5000 with Speed Sensor and Magnet
HEADSET
FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1.8” Caged Upper Bearings
SEATPOST
Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp
REAR HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
SADDLE
Whyte Custom, Triple Panel Design
FRONT HUB
Alloy, Cup & Cone, Double Seal, 32 Hole
HANDLEBAR
Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide
SPOKES
2.0mm, Black Stainless with Brass Nipples
STEM
Whyte Alloy 6061, S 60mm, M 70mm, L 80mm
RIMS
Whyte T-23 x 700c, 32 hole, with eyelets
GRIPS
Whyte Custom Dual Density Lock-on
TYRE
Schwalbe Road Cruiser TOUR, 700x47c, - Green Compound - K-Guard Puncture Protection
BRAKES FRONT
Shimano MT400, 160mm Disc
SHIFT LEVERS
Shimano SL-M6000, Deore, 10 Speed with STEPS SC-E6010 Display
BRAKES REAR
Shimano MT400, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Shimano M400
REAR MECH
Shimano RD-T6000, Deore, SGS 10-Speed, Shadow
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
19.6
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
S
M
L
5’6″ – 5’9″
5’9″ – 6’0"
6’0″ – 6’3″
168 – 175 cm
175 – 183 cm
183 – 191 cm
GEOMETRY
SIZE
S
M
L
A HEAD TUBE ANGLE
66
66
66
B SEAT TUBE ANGLE
74
73.5
73
C TOP TUBE HORIZONTAL
600
625
650
D BB HEIGHT ABOVE GROUND
274
274
274
E STAND OVER HEIGHT
749
776
806
F WHEEL BASE
1152
1172
1192
G CHAIN STAY LENGTH
458
458
458
H SEAT POST DIAMETER
30.9
30.9
30.9
I HEAD TUBE LENGTH
115
125
135
J SEAT TUBE LENGTH
406.4
444.5
495.3

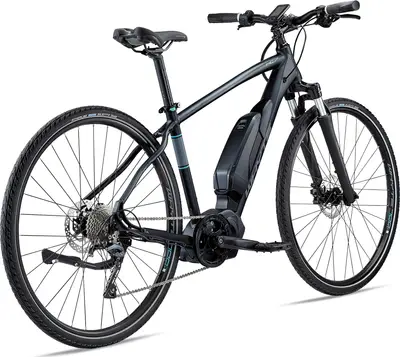

Whyte CONISTON v1

A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.

Weight	43.2 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NCX
Wheels	700c Aluminum
Drivetrain	1 × 10
Groupset	Deore
Battery	418Wh
Brakes	Shimano Hydraulic Disc

Frame	6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand Mount BB Standard: STEPS, Press Fit
Fork	SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout Travel: 63mm Spring Type: Coil
Shock	N/A
Bottom Bracket	STEPS Drive Unit E-5000 with Speed Sensor and Magnet
Headset	FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1.8” Caged Upper Bearings
Stem	Whyte Alloy 6061, S 60mm, M 70mm, L 80mm
Handlebar	Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide
Saddle	Whyte Custom, Triple Panel Design
Seatpost	Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Custom Dual Density Lock-on

Rear Derailleur	Shimano RD-T6000, Deore, SGS 10-Speed, Shadow
Front Derailleur	N/A
Crank	Lasco square taper for Shimano STEPS, 38T with Double Sided Chain Guard, 10 Speed
Shifters	Shimano SL-M6000, Deore, 10 Speed with STEPS SC-E6010 Display
Cassette	Shimano CS-HG500, 11-34, 10 Speed
Chain	KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
Brakes	Shimano MT400, 160mm Disc Type: Shimano Hydraulic Disc
Brake Levers	Shimano M400

Rims	Whyte T-23 x 700c, 32 hole, with eyelets
Spokes	2.0mm, Black Stainless with Brass Nipples
Front Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub	Alloy, Cup & Cone, Double Seal, 32 Hole
Tires	Schwalbe Road Cruiser TOUR, 700x47c, - Green Compound - K-Guard Puncture Protection

2019 WhyteCONISTON v1

2019 Whyte
CONISTON v1
