2019 Whyte

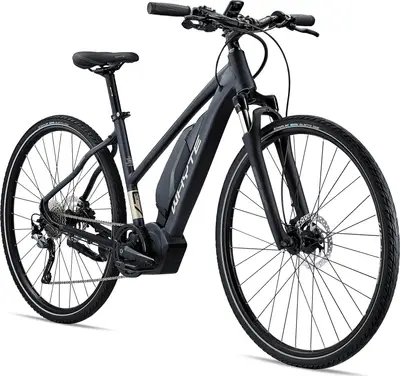

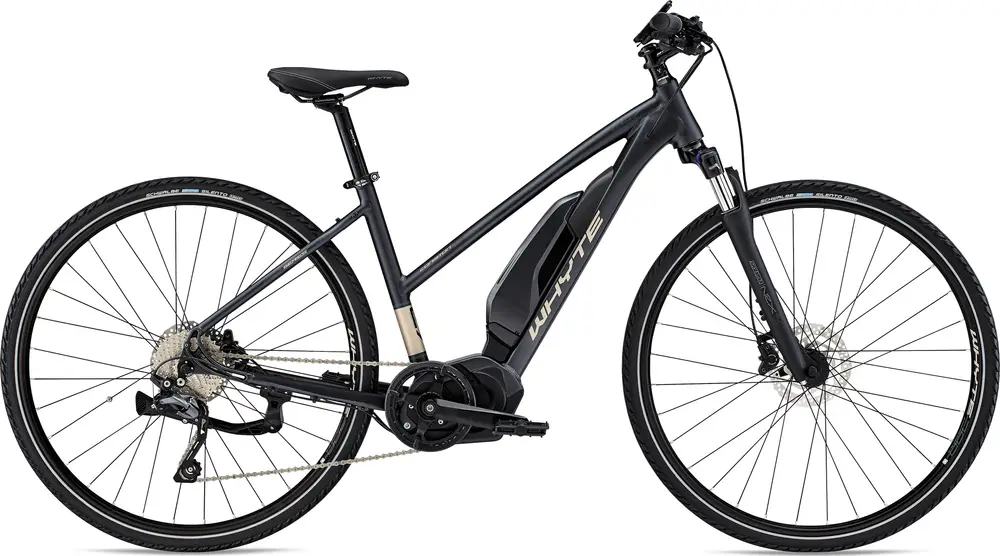

CONISTON LADIES v1

A 700c aluminum frame women’s hybrid e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range

MSRP£2,299 (about $2,911)
Weight43.2 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore, Shimano
Battery418Wh
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

CONISTON LADIES v1

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand Mount

BB StandardSTEPS, Press Fit

Fork

SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout

Travel63mm

Spring TypeCoil

Shock

N/A

Spring TypeCoil

Bottom Bracket

STEPS Drive Unit E-5000 with Speed Sensor and Magnet

Headset

FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1.8” Caged Upper Bearings

Stem

Whyte Alloy 6061, S 60mm, M 70mm, L 80mm

Handlebar

Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide

Saddle

Whyte Custom, Triple Panel Design

Seatpost

Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp

TypeRigid

Pedals

Fibre Reinforced Composite Platform

Grips

Whyte Custom Dual Density Lock-on

Groupset
Rear Derailleur

Shimano RD-T6000, Deore, SGS 10-Speed, Shadow

Front Derailleur

N/A

Crank

Lasco square taper for Shimano STEPS, 38T with Double Sided Chain Guard, 10 Speed

Shifters

Shimano SL-T6000, Deore, 10 Speed with STEPS SC-E6010 Display

Cassette

Shimano CS-HG500, 11-34, 10 Speed

Chain

Shimano STEPS E6090, e-Bike Specific, 10 Speed

Brakes

Shimano MT400, 160mm Rotor

TypeHydraulic Disc

Brake Levers

Shimano MT400

Wheels
Rims

Whyte T-23 x 700c, 32 hole, with eyelets

Spokes

2.0mm, Black Stainless with Brass Nipples

Front Hub

Alloy, Cup & Cone, Double Seal, 32 Hole

Rear Hub

Alloy, Cup & Cone, Double Seal, 32 Hole

Tires

Schwalbe Road Cruiser TOUR, 700x47c, - Green Compound - K-Guard Puncture Protection

Electric Components
Battery

36 volts, 11.6ah, 418wh
