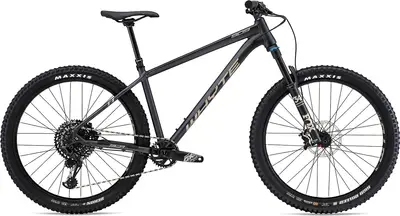

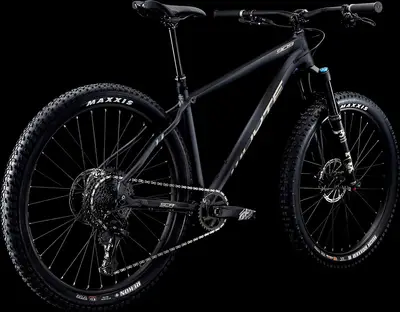

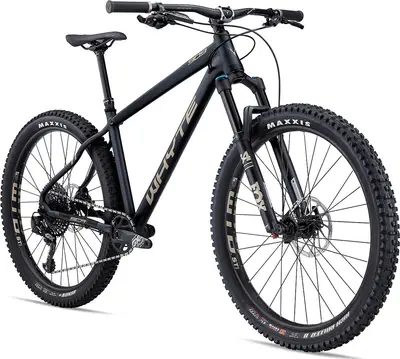

2019 Whyte
909
A 27.5″ aluminum frame hardtail trail bike with high-end components.
| Weight | 28.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 130mm |
| Fork | Fox Performance Float 34 |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2018 · Amanda Wishart Hannah Dobson
When the Whyte 909 turned up at Singletrack HQ, there were two riders particularly keen on riding it. Hannah already owns a Whyte hardtail, albeit a slightly older 901 hardtail,...
Jul 2017 · Tom Marvin
Point it down a hill and hang on — the 909 is built for this type of fun! Buy if, You want a bike for spinning up and shredding down steep woodland trails
Well-shaped trail ripping hardtail, sensible spec choices make the most of the frame’s potential
The basic Fox 34 isn’t the plushest fork out there, conical headset top cap raises front end
Dec 2016 · Trev Worsey
As the winter closes in we can almost hear the cries of despair from our bike sheds. This is the season of broken bearings, worn drivetrains and rusty chains. This is the season where simple is king and complex means expensive bills. The aggressive Whyte 909 is built for this time of year, a demented […]
| Frame | Aluminum BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | FOX Float Performance 34, GRIP 3-position, black coating, 37mm offset, 15mm x 110mm Travel: 130mm Spring Type: Air |
| Shock | N/A Spring Type: Air |
| Bottom Bracket | SRAM DUB, BSA, 73mm |
| Headset | FSA No. 57E Orbit ZS, sealed cartridge bearings |
| Stem | Whyte Gravity, 35mm length |
| Handlebar | Whyte 6061 alloy, 31.8mm diameter, 760mm wide (S), 780mm wide (M, L, XL), 15mm rise (S, M), 30mm rise (L, XL) |
| Saddle | Whyte Custom, triple panel design |
| Seatpost | SDG Tellis dropper, paddle remote lever, 125mm (S), 150mm (M, L, XL) Type: Dropper |
| Pedals | None included |
| Grips | Whyte Lock-on V |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
|---|---|
| Front Derailleur | N/A |
| Crank | SRAM GX Eagle, X-sync 2, DUB, 170mm |
| Shifters | SRAM GX Eagle, MMX, 12-speed |
| Cassette | SRAM XG-1275 Eagle, 10-50 tooth, 12-speed |
| Chain | SRAM Eagle, 12-speed |
| Chain Guide | N/A |
| Brakes | Front: SRAM Guide R, 4-piston, 180mm rotor (S, M, L), 200mm rotor (XL), Rear: SRAM Guide R, 4-piston, 160mm rotor (S), 180mm rotor (M, L), 200mm rotor (XL) Type: Hydraulic Disc |
| Brake Levers | SRAM Guide R, MMX |
| Rims | WTB ST i35 TCS 2.0 System, pinned joint, tubeless ready, 32 hole |
|---|---|
| Spokes | DT Swiss Factory 2.0mm, black stainless, brass nipples |
| Front Hub | Front: Alloy, double sealed cartridge bearings, 15mm x 110mm Boost, Rear: Hope Pro 4, sealed stainless steel cartridge bearings, 12mm x 148mm Boost |
| Rear Hub | Front: Alloy, double sealed cartridge bearings, 15mm x 110mm Boost, Rear: Hope Pro 4, sealed stainless steel cartridge bearings, 12mm x 148mm Boost |
| Tires | Front: Maxxis High Roller II TR 27.5 x 2.8" 120 tpi, EXO, 3C MaxxTerra, Rear: Maxxis Rekon TR 27.5 x 2.8" 60 tpi, EXO |
