SRAM NX Power Spline, X-SYNC Direct Mount 28T Chainring, 11 Speed Alloy, 165mm Crank Arms

SR Epixon, 100mm Travel, Black Alloy Stanchions, Alloy Steerer, Hydro Lockout, Air Spring, Adjustable Rebound

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Get A Grip Seat Clamp System, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts

Whyte 6061 Alloy, 30mm Rise, 31.8mm, 680mm Wide

FSA No.10, Semi Integrated, 1 1/8" Caged Bearings

WTB STp i25, 25mm Wide, TCS 2.0 System, 28 Hole

Whyte 6061 Alloy, 20mm Offset, 30.9mm x 350mm, 2 Bolt Clamp

2.0mm, Black Stainless with Brass Nipples

WTB Trail Boss, Light/Fast TCS System 26" X 2.25", 60TPI

We've broken the mould with our kids bikes. By putting 26" wheels on a kids MTB we've given a boost in performance similar to an adult switching to a 650b/27.5" Trail Hardtail. More confidence, more control and easier riding. With SRAM NX 1 by 11 spec and a trigger shifter, the 405 really is a scaled down version of our award winning 900 series bikes. We have specced an XSYNC Direct Mount chainring so multiple chainrings are available to tune this bike to the size of the rider. The 405 also comes with Whyte's own Get-a-Grip seat post clamping system. This easy to use clamp allows the post to be raised or lowered on the trail, even with small cold hands.
[split]
SPECIFICATION
COLOUR
Matt Petrol with Spearmint, Lime & Grey
CASSETTE
SRAM GX-1130, 11-42, 11 Speed
FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Get A Grip Seat Clamp System, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts
CHAIN
SRAM PC-1130, 11 Speed
FORK
SR Epixon, 100mm Travel, Black Alloy Stanchions, Alloy Steerer, Hydro Lockout, Air Spring, Adjustable Rebound
CRANKSET
SRAM NX Power Spline, X-SYNC Direct Mount 28T Chainring, 11 Speed Alloy, 165mm Crank Arms
REAR SHOCK
N/A
BOTTOM BRACKET
SRAM Power Spline, 73mm
HEADSET
FSA No.10, Semi Integrated, 1 1/8" Caged Bearings
SEATPOST
Whyte 6061 Alloy, 20mm Offset, 30.9mm x 350mm, 2 Bolt Clamp
REAR HUB
Alloy, Cup & Cone, Double Seal, 28 Hole
SADDLE
Whyte Custom
FRONT HUB
Alloy, Cup & Cone, Double Seal, 28 Hole
HANDLEBAR
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 680mm Wide
SPOKES
2.0mm, Black Stainless with Brass Nipples
STEM
Whyte Gravity, 40mm
RIMS
WTB STp i25, 25mm Wide, TCS 2.0 System, 28 Hole
GRIPS
Whyte Lock-on V Grip
TYRE
WTB Trail Boss , Light/Fast TCS System 26" X 2.25", 60TPI
BRAKES FRONT
Tektro Auriga, 160mm Disc
SHIFT LEVERS
SRAM NX, 11 Speed, Trigger Shifter
BRAKES REAR
Tektro Auriga, 160mm Disc, Internal Routing
FRONT MECH
N/A
BRAKE LEVERS
Tektro Auriga
REAR MECH
SRAM NX, 11 Speed
PEDALS
Fibre Reinforced Composite Platform
WEIGHT
12
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
Click or scan the QR code for additional specification & replacement parts list.
SIZE GUIDE
ONE SIZE
4’5’’- 5’0"
135 - 152 cm
GEOMETRY
SIZE
ONE SIZE
A HEAD TUBE ANGLE
68.5
B SEAT TUBE ANGLE
74
C TOP TUBE HORIZONTAL
540
D BB HEIGHT ABOVE GROUND
305
E STAND OVER HEIGHT
715
F WHEEL BASE
1023
G CHAIN STAY LENGTH
410
H SEAT POST DIAMETER
30.9
I HEAD TUBE LENGTH
100
J SEAT TUBE LENGTH
331
STACK
546
REACH
383

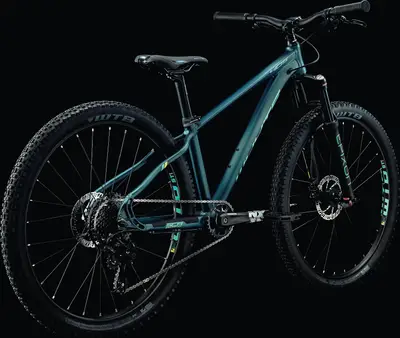

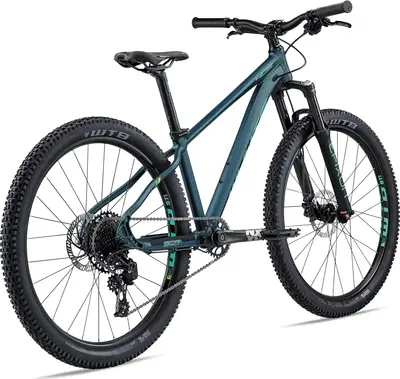

Whyte 405 v3

One Size

A 26″ aluminum frame mountain youth bike with upper mid-range components and tektro hydraulic disc brakes.

Weight	26.5 lbs
Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour EPIXON
Wheels	26″ Aluminum
Drivetrain	1 × 11
Groupset	NX
Brakes	Tektro Hydraulic Disc

Frame	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Get A Grip Seat Clamp System, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts
Fork	SR Epixon, 100mm Travel, Black Alloy Stanchions, Alloy Steerer, Hydro Lockout, Air Spring, Adjustable Rebound Travel: 100mm Spring Type: Air
Shock	N/A
Bottom Bracket	SRAM Power Spline, 73mm
Headset	FSA No.10, Semi Integrated, 1 1/8" Caged Bearings
Stem	Whyte Gravity, 40mm
Handlebar	Whyte 6061 Alloy, 30mm Rise, 31.8mm, 680mm Wide
Saddle	Whyte Custom
Seatpost	Whyte 6061 Alloy, 20mm Offset, 30.9mm x 350mm, 2 Bolt Clamp Type: Rigid
Pedals	Fibre Reinforced Composite Platform
Grips	Whyte Lock-on V Grip

Rear Derailleur	SRAM NX, 11 Speed
Front Derailleur	N/A
Crank	SRAM NX Power Spline, X-SYNC Direct Mount 28T Chainring, 11 Speed Alloy, 165mm Crank Arms
Shifters	SRAM NX, 11 Speed, Trigger Shifter
Cassette	SRAM GX-1130, 11-42, 11 Speed
Chain	SRAM PC-1130, 11 Speed
Brakes	Tektro Auriga, 160mm Disc Type: Tektro Hydraulic Disc
Brake Levers	Tektro Auriga

Rims	WTB STp i25, 25mm Wide, TCS 2.0 System, 28 Hole
Spokes	2.0mm, Black Stainless with Brass Nipples
Front Hub	Alloy, Cup & Cone, Double Seal, 28 Hole
Rear Hub	Alloy, Cup & Cone, Double Seal, 28 Hole
Tires	WTB Trail Boss, Light/Fast TCS System 26" X 2.25", 60TPI

2019 Whyte405 v3

2019 Whyte
405 v3
