Today’s Deals2024 Vitus

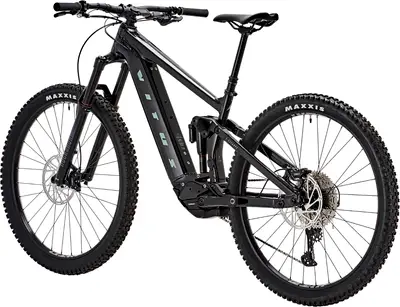

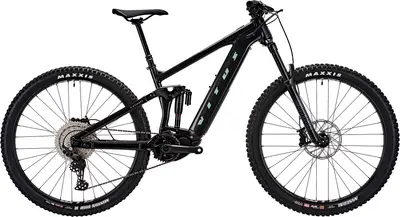

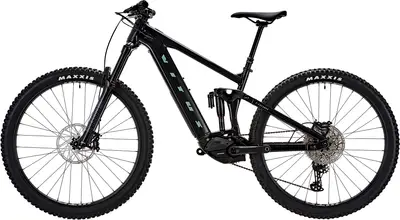

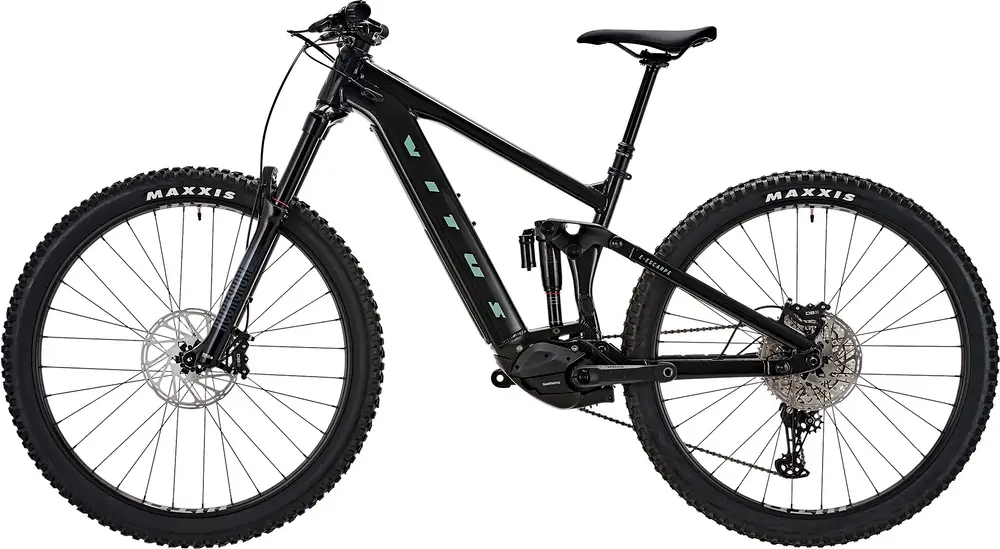

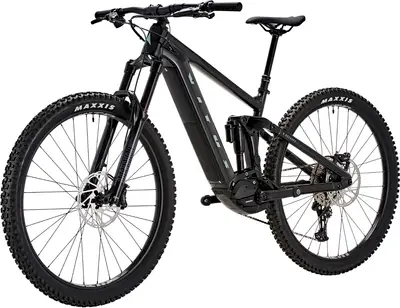

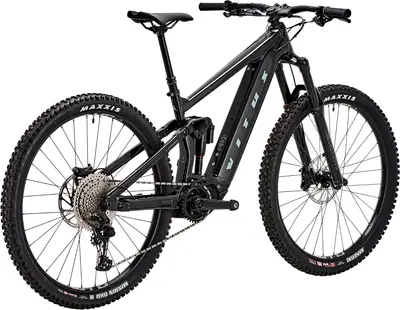

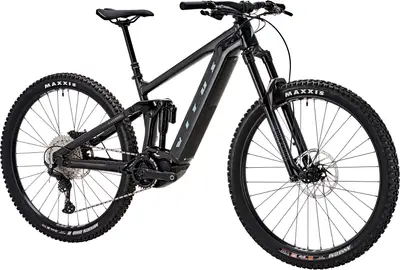

E-Escarpe 290 VR
A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
£4,499($6,053)| Weight | 55.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 140 / 150mm |
| Fork | RockShox 35 Gold RL |
| Shock | RockShox Super Deluxe Select |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore |
| Motor | Shimano hub-drive |
| Battery | Shimano 630Wh |
| Brakes | SRAM DB8 Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full E-Escarpe model range
View Comparison5'2" – 5'7"
5'5" – 5'11"
5'9" – 6'3"
6'1" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | E-Escarpe 6061-T6 Double Butted Alloy, Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Shimano STEPS compatible. Axle Specifications: 180mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch Tire Clearance: 2.5" Color: Black Quartz |
|---|---|

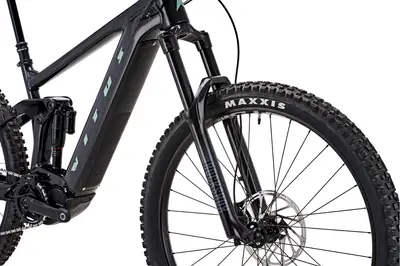

| Fork | RockShox 35 Gold RL 29", 150mm travel, DebonAir, Motion Control Damper, 35mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset Travel: 150mm Spring Type: Air |
| Shock | RockShox Super Deluxe Select R, DebonAir, 205mm x 60mm, trunnion Travel: 140mm |
| Bottom Bracket | N/A, N/A |
| Headset | Nukeproof, ZS56/28.6 upper & ZS66/46 lower to suit 1-1/8" upper tapered to 1.8" lower headtube |
| Stem | Nukeproof Neutron AM, 6061 Alloy, 45mm length, 31.8mm Handlebar Clamp Diameter, 0° Rise |
| Handlebar | Nukeproof Horizon V2 Riser, 7075 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 780mm Wide, 12mm Rise, L & XL: 800mm Wide, 25mm Rise |
| Saddle | Nukeproof Trail Saddle, Black, Steel Rails |
| Seatpost | Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop Type: Dropper |
| Grips | Vitus Lock On, N/A |
| Rear Derailleur | Shimano Deore M5100, 11 Speed, Shadow Plus, Long Cage |
|---|---|
| Front Derailleur | N/A, N/A |
| Crank | E*Thirteen E*Spec Plus, 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line |
| Shifters | Shimano Deore M5100, 11 Speed, Rapidfire Plus |
| Cassette | Sunrace CSMS7, 11 Speed, 11-51T Range |
| Chain | KMC e11S, 11 Speed, E-Bike specific |
| Brakes | SRAM DB8, Post Mount, Four Piston Caliper Type: SRAM DB8 Hydraulic Disc |
| Rims | Front: WTB ST Light i30 TCS 2.0, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed, Rear: WTB ST Light i30 TCS 2.0, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed |
|---|---|
| Front Hub | Vitus KT DHF112, 32H, 6 Bolt Disc Fitment, 110mm x 15mm |
| Rear Hub | Vitus KT H5ER-SH, 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm |
| Tires | Front: Maxxis Assegai, 29" x 2.5" WT, 3C MaxxGrip compound, EXO+ casing, Rear: Maxxis Minion DHR II, 29" x 2.4" WT, 3C MaxxTerra compound, EXO+ casing |
| Disc Rotors | SRAM CenterLine, 200mm Front & Rear, 6 Bolt Hub Fitment |

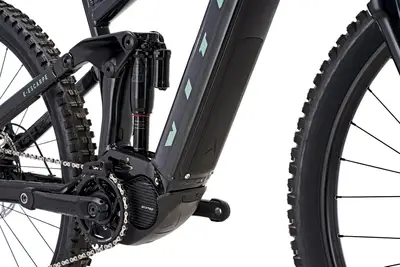

| Motor | Shimano BT-EN806-A, 630Wh, Downtube Integrated |
|---|---|
| Battery | Shimano BT-EN806-A, 630Wh, Downtube Integrated |
| Display | Shimano SC-EM800, Boost, Trail, Eco, Off & Walk modes |
