Bornit Copper

BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh

HESLING "Move12", schwarz matt, 64 mm Loch

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm

HB-TC500-15", Center Lock, Disc, 36 Loch, für 15 mm Thru-Type-Axle, OLD: 100 mm

ERGOTEC "Riser Bar 50", 31,8x720 mm, schwarz

Front: CONTEC "DLUX 50 E+", 12 V, Rear: CONTEC "TL-335", Gepäckträger, 50 mm

BOSCH "Drive Unit Performance Line", 25 km/h / 20 mph

SHIMANO "SG-C7000-5D", Nexus, 5-Gang, Center Lock, Schreibenbremse, 36 Loch, 135x187 mm, schwarz

MACH1 "650", 28", 36 Loch, schwarz, 9 mm, 622x23C

HUMPERT "SP-10", 31,6x350 mm, Patent, schwarz

SHIMANO "SL-C7000-5", Nexus, Revo-Shifter, 5-Gang

HUMPERT "Sepia 50", Ahead, 90 mm, schwarz

This everyday companion is offered exclusively with a Wave frame and utilises the 5-speed Shimano "Nexus" internal gear hub, which comes with either a coaster brake or freewheel. The smart Bosch system supports the rider’s pedalling power with the new "Performance" motor and the "PowerTube 500" battery pack.The "Kiox 300" colour display, which is also perfectly legible in the dark, offers all the data you need to know about your current trip. And if that isn’t enough information for you, then the free "eFlow" app will provide additional useful features. Together with other navigation apps like Komoot or Strava, your new e-bike will let you experience a whole new world of riding fun.We have designed the TRESALO models with integrated "PowerTube" battery pack with a robust and rugged chassis. The rider’s posture - as connoisseurs have come to expect from a Victoria bike - is more upright and comfort-oriented rather than overly sporty and stretched forward.Just like in all innovative Victoria designs, the battery pack integrated in the lower tube can easily be lifted up and out. No more juggling or worrying about dropping it! In view of the high capacity of the battery pack and its resulting intrinsic weight, we do, however, recommend charging it directly on the bike for greater convenience.

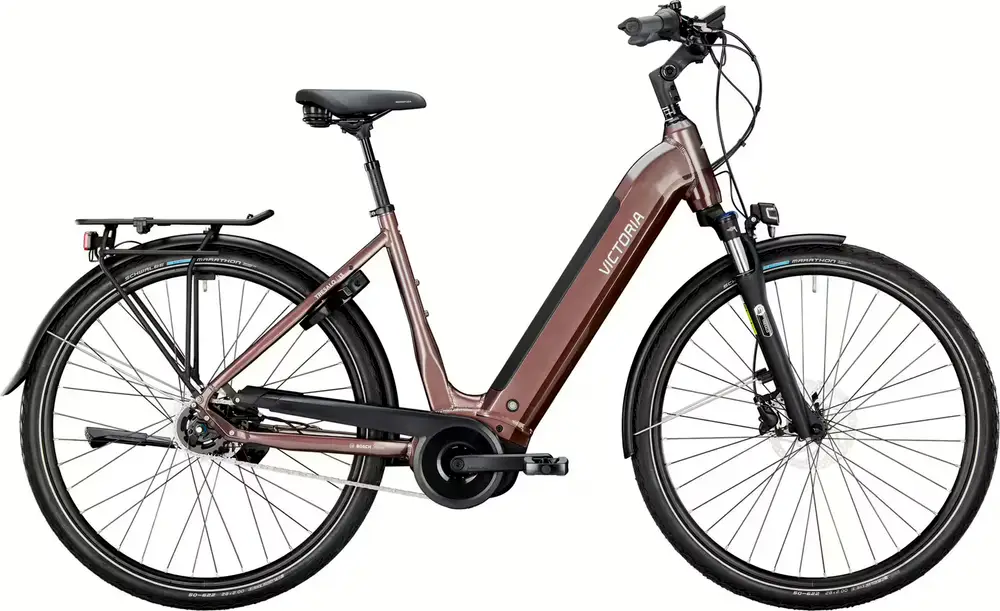

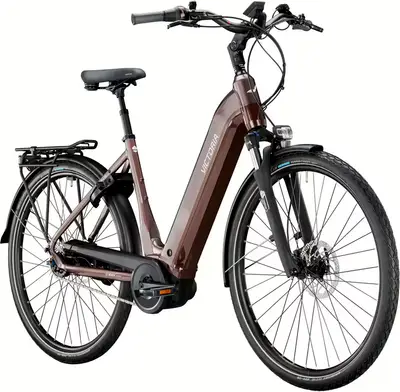

Victoria TRESALO 13 wave

44cm

48cm

52cm

56cm

A 700c aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.

Weight	65.5 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NEX
Wheels	700c Aluminum
Drivetrain	Internally Geared Hub
Groupset	Nexus
Motor	Bosch 600W 63Nm mid-drive
Battery	Bosch 500Wh
Brakes	Shimano Hydraulic Disc

Frame	Bosch-Intube-Frame, Aluminium 6061 BB Standard: Bosch, Press Fit Color: Bornit Copper
Fork	SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm Travel: 63mm Spring Type: Coil
Bottom Bracket	BOSCH
Headset	FSA "Orbit"
Stem	HUMPERT "Sepia 50", Ahead, 90 mm, schwarz
Handlebar	ERGOTEC "Riser Bar 50", 31,8x720 mm, schwarz
Saddle	SELLE ROYAL "Vivo Ergo RVS
Seatpost	HUMPERT "SP-10", 31,6x350 mm, Patent, schwarz Type: Rigid
Pedals	MARWI "SP-828", schwarz
Grips	CONTEC "Merge City Comfort", L138/T95

Crank	MIRANDA "PSI", Nr. 8
Shifters	SHIMANO "SL-C7000-5", Nexus, Revo-Shifter, 5-Gang
Cassette	SHIMANO "CS-C7000", Nexus, 27 Zähne
Chain Guide	HESLING "Move12", schwarz matt, 64 mm Loch
Brakes	SHIMANO "BR-MT200" Type: Shimano Hydraulic Disc
Brake Levers	SHIMANO "BL-MT201"

Rims	MACH1 "650", 28", 36 Loch, schwarz, 9 mm, 622x23C
Spokes	MACH1 Niro, 2 mm
Front Hub	HB-TC500-15", Center Lock, Disc, 36 Loch, für 15 mm Thru-Type-Axle, OLD: 100 mm
Rear Hub	SHIMANO "SG-C7000-5D", Nexus, 5-Gang, Center Lock, Schreibenbremse, 36 Loch, 135x187 mm, schwarz
Tires	MAXXIS "Metropass", 49-622, Reflex

Motor	BOSCH "Drive Unit Performance Line", 25 km/h / 20 mph
Battery	BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh
Remote	BOSCH LED Remote "BRC3600", BES3
Display	BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
Charger	BOSCH 4 Ah

Lights	Front: CONTEC "DLUX 50 E+", 12 V, Rear: CONTEC "TL-335", Gepäckträger, 50 mm
Fenders	CURANA "Apollo 60", extra matte black
Racks	MIK-Alu "TA8511A"
Lock	CONTEC "PowerLock CT1L"

2025 VictoriaTRESALO 13 wave

2025 Victoria
TRESALO 13 wave
