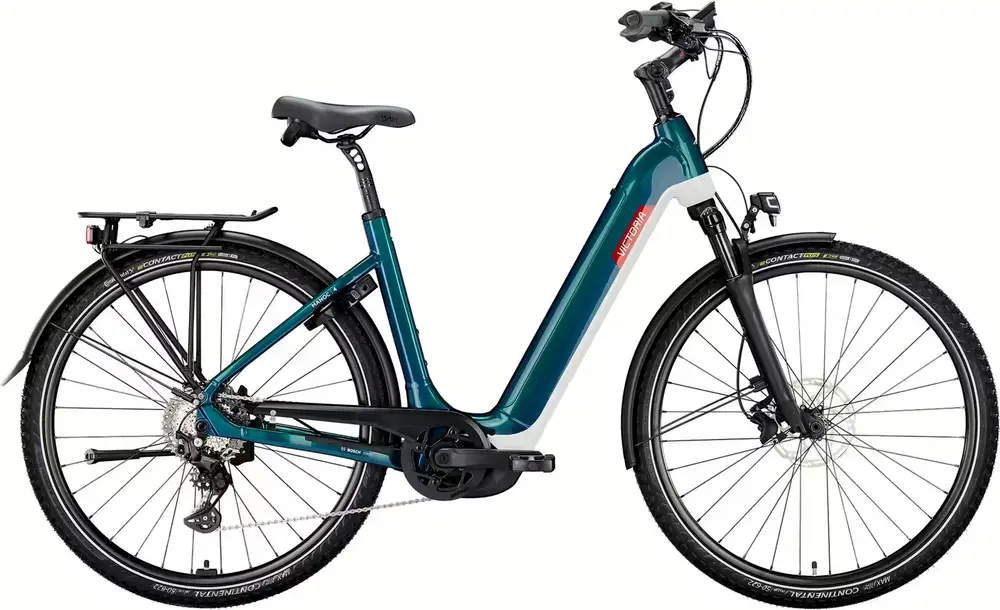

2025 Victoria

Manoc 4 wave

A 700c aluminum frame hardtail crosscountry e-bike with upper mid-range components.

Manufacturer Price

€4,199($4,886)
Weight64.4 lbs
FrameAluminum
SuspensionHardtail, 80mm
ForkRST VIV AIR
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 250W 85Nm mid-drive
BatteryBosch 625Wh
BrakesTektro Hydraulic Disc
View on victoria-bikes.comLearn about Victoria
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Manoc 4 wave
Other Crosscountry bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Bosch-Intube-Frame, Aluminium 6061

BB Standard: Bosch, Press Fit

Color: Flipflop Petrol

Fork

RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt

Travel: 80mm

Bottom Bracket

BOSCH

Stem

ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer

Handlebar

ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6

Saddle

SELLE ROYAL "Orbis" Relax

Seatpost

ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6

Type: Rigid

Pedals

UNION "SP-828", Alu, Antislip

Grips

CONTEC "Merge Trekking Ergo"

Groupset
Rear Derailleur

SHIMANO "Deore RD-M5130"

Crank

FSA "CK-745", Gen.4, 170 mm

Shifters

SHIMANO "Deore" SL-M5130-R10"

Cassette

SHIMANO "CS-LG400-10 " 11-43 Z

Chain Guide

HESLING "Velo" Bosch Gen.4

Brakes

TEKTRO "HD-T390"

Type: Tektro Hydraulic Disc

Brake Levers

TEKTRO "HD-T390"

Wheels
Rims

MACH "650 Disc"

Spokes

Niro, 2 mm, schwarz

Front Hub

FORMULA "DC71", 15x100 mm

Rear Hub

FORMULA "EHL-148S"

Tires

CONTINENTAL "Contact Plus" 50-622

Electric Components
Motor

BOSCH BES3 "Performance Line CX", 36 V, 250 W

Battery

BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh

Remote

BOSCH "BRC3600"

Display

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

Charger

BOSCH 4 Ah

Accessories
Lights

Front: CONTEC "Dlux 80 E+" 80 Lux, Rear: CONTEC „TL-335 E-Stop“, mit Stoplicht

Fenders

CURANA "Apollo", 60mm, schwarz matt, Spoiler

Racks

MASSLOAD ALU-GEPÄCKTRÄGER MIK-System

Lock

CONTEC "Powerloc L AZ"
