BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

CURANA "Apollo", 60mm, schwarz matt, Spoiler

SUNTOUR "SF21MOBIE34-ABS-DS-2CR-15QLC32-27.5-100", einstellbar, Lockout, 80 mm, Disc, tapered, QR15

ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6

Front: CONTEC "DLUX 120 E-XTENT" 200/120 Lux High beam, 0710976M, Rear: CONTEC &bdquo;TL-335 E-Stop&ldquo;, mit Stoplicht

ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6

ENVIOLO "Twist Display Pro", Drehgriff stufenlos, MC-Twist-Disp-Pro-OE

ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer

The top model in the MANOC premium trekking series focuses on safety and low maintenance like no other model. Brake interventions on the front wheel when cornering are minimised by the new generation of Bosch ABS. This provides an unimagined feeling of safety where it could previously be dicey.The 120 lux LED front light extends the tour into the dark. A special highlight: the front light has a high beam function that can be activated at the touch of a button on the handlebar, which further enhances visibility at night.Thanks to the continuously variable Enviolo internal gear hub and the belt, maintenance work is reduced to an absolute minimum. The air-sprung fork with its 80mm suspension travel also offers plenty of comfort and absorbs the bumps in the road from the wide yet low rolling resistance tyres.The smart Bosch system provides the maximum of what is currently possible with the Performance CX drive and the highest-capacity PowerTube 750 battery. The eFlow Bike app can be used to transmit additional information that the Kiox 300 colour display does not provide to your smartphone. This information can be used by other apps, for example for navigation.With a permissible total weight of 170 kg, the MANOC 7 is the ideal everyday and touring companion and, thanks to the MIK rack system, can firmly attach panniers and the like without them sliding around during the ride.As with all new VICTORIA developments, the battery integrated in the down tube can be removed from the top, making it unnecessary to remove it from the bottom. However, in view of the large capacities and the associated battery weight, we recommend charging at the MANOC instead, as it is simply more convenient.

Frame	Aluminum
Suspension	Hardtail, 80mm
Fork	Suntour MOBIE
Wheels	700c Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset	FSA
Motor	Bosch 250W 85Nm mid-drive
Battery	Bosch 750Wh
Brakes	Magura Hydraulic Disc

Frame	Bosch-Intube-Frame, Aluminium 6061 BB Standard: Bosch, Press Fit
Fork	SUNTOUR "SF21MOBIE34-ABS-DS-2CR-15QLC32-27.5-100", einstellbar, Lockout, 80 mm, Disc, tapered, QR15 Travel: 80mm
Bottom Bracket	BOSCH
Stem	ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar	ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6
Saddle	SELLE ROYAL "Lookin HD Stonex", Moderate
Seatpost	ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6 Type: Rigid
Pedals	UNION "SP-828", Alu, Antislip
Grips	CONTEC "Merge Trekking Ergo"

Crank	FSA "CK-220", Gen.4, 170 mm
Shifters	ENVIOLO "Twist Display Pro", Drehgriff stufenlos, MC-Twist-Disp-Pro-OE
Cassette	GATES "CDX", 22 Z.
Chain Guide	CURANA "Chainguard Belt"
Brakes	MAGURA "MT C ABS" Type: Magura Hydraulic Disc
Brake Levers	MAGURA "ABS"

Rims	MACH "650 Disc"
Spokes	Niro, 2 mm, schwarz
Front Hub	FORMULA "DC71", 15x110 mm
Rear Hub	ENVIOLO "HD", stufenlos, 12x148
Tires	CONTINENTAL "Contact Plus" 50-622

Motor	BOSCH "Performance CX", 36 V, 250 W
Battery	BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote	BOSCH "BRC3600"
Display	BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
Charger	BOSCH 4 Ah

Lights	Front: CONTEC "DLUX 120 E-XTENT" 200/120 Lux High beam, 0710976M, Rear: CONTEC &bdquo;TL-335 E-Stop“, mit Stoplicht
Fenders	CURANA "Apollo", 60mm, schwarz matt, Spoiler
Racks	MASSLOAD MIK
Lock	Contec "Powerloc L AZ"

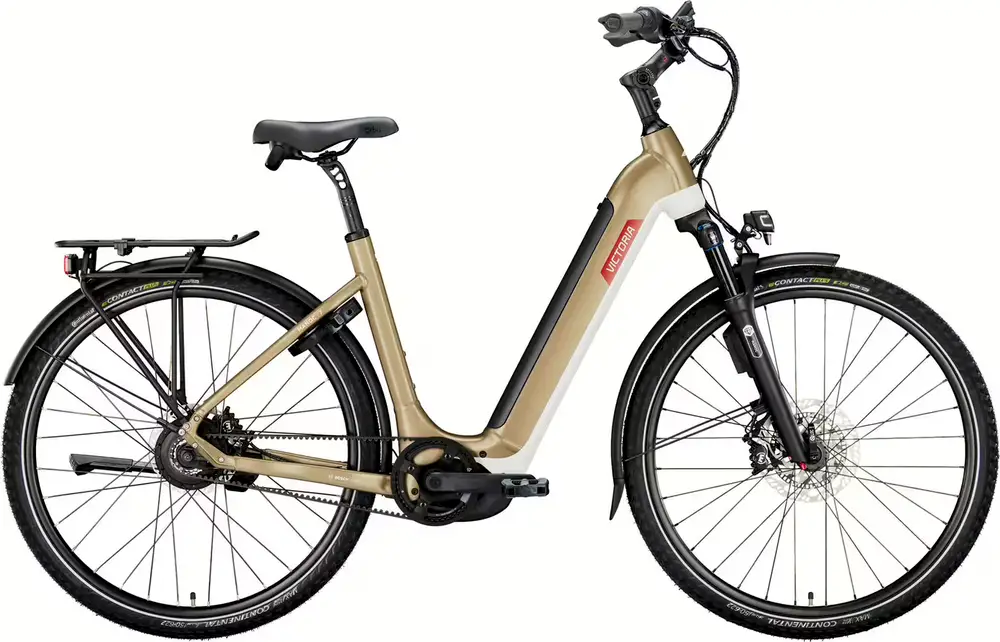

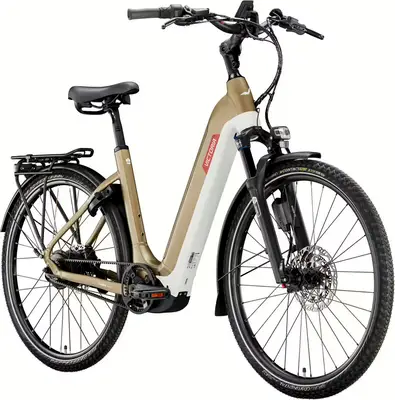

2024 VictoriaMANOC 7 wave

2024 Victoria
MANOC 7 wave
