Flipflop Petrol

BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

CURANA "Apollo", 60mm, schwarz matt, Spoiler

RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt

SHIMANO "HB-MT400", QR 15, Disc, Center Lock

ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz

Front: CONTEC "Dlux 120 E+" 120 Lux, Rear: CONTEC &bdquo;TL-335 E-Stop&ldquo;, mit Stoplicht

ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6

ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer

This derailleur model is perfect for medium to long-distance touring. The BOSCH Smart System with its Performance CX drive delivers reliable support and the PowerTube 625 battery pack holds enough capacity to make the MANOC 4 a long-distance touring bike if the conditions are right.Any additional information not displayed on the Kiox 300 colour display, can be gleaned via the eFlow Bike app on any smartphone. Additional apps like Komoot or Strava can use that data for navigation or tour planning.The air-suspension fork with its 80mm travel offers plenty of comfort, as it absorbs the remaining forces that the wide, yet low rolling resistance tyres pass on to the frame.The ten speeds are provided by the Shimano Deore gear system. It, as well as the chain and the cassette are based on the Linkglide series and are around three times as wear-resistant and comfortable as a Hyperglide version.With its permissible overall weight of 170 kg, MANOC 4 is a perfect touring companion. The MIK rack system allows adding saddlebags and more, without having to worry about anything moving out of place.Just like in all innovative VICTORIA designs, the battery pack integrated in the lower pipe can easily be lifted up and out without having to worry about dropping it. In view of the high capacity of the battery pack and its resulting intrinsic weight, we do, however, recommend charging it directly on the MANOC for more comfort.

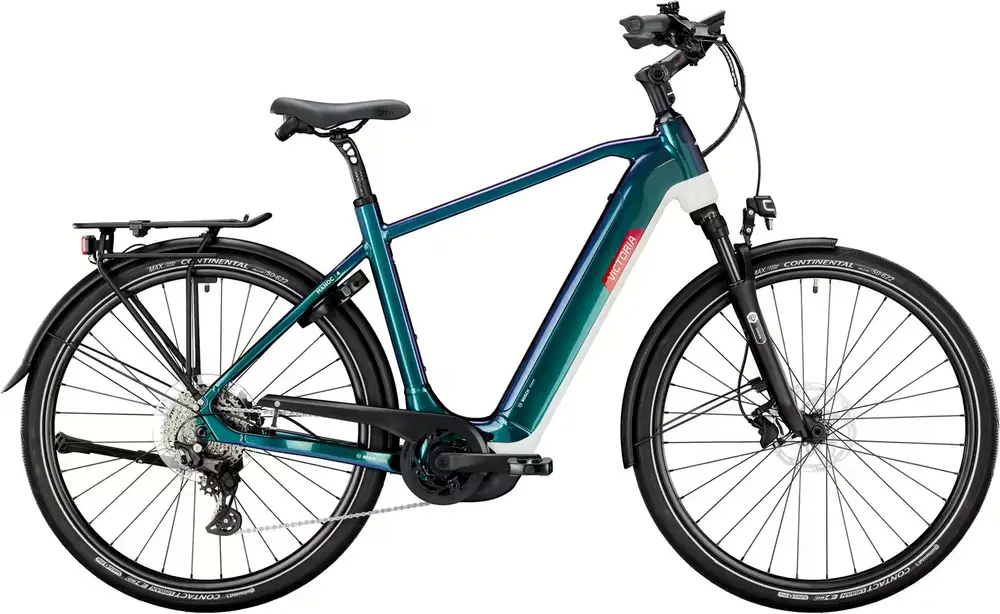

Victoria MANOC 4 diamond

A 700c aluminum frame hardtail crosscountry e-bike with upper mid-range components.

Weight	64.4 lbs
Frame	Aluminum
Suspension	Hardtail, 80mm
Fork	RST VIV AIR
Wheels	700c Aluminum
Drivetrain	1 × 10
Groupset	Deore
Motor	Bosch 250W 85Nm mid-drive
Battery	Bosch 625Wh
Brakes	Tektro Hydraulic Disc

Frame	Bosch-Intube-Frame, Aluminium 6061 BB Standard: Bosch, Press Fit Color: Flipflop Petrol
Fork	RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt Travel: 80mm
Bottom Bracket	BOSCH
Stem	ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar	ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz
Saddle	SELLE ROYAL "Orbis" Moderate
Seatpost	ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6 Type: Rigid
Pedals	UNION "SP-828", Alu, Antislip
Grips	CONTEC "Merge Trekking Ergo"

Rear Derailleur	SHIMANO "Deore RD-M5130"
Crank	FSA "CK-745", Gen.4
Shifters	SHIMANO "Deore SL-M5130-R10"
Cassette	SHIMANO "CS-LG400-10 " 11-43 Z
Chain Guide	HESLING "Velo" Bosch Gen.4 schwarz matt
Brakes	TEKTRO "HD-T390" Type: Tektro Hydraulic Disc
Brake Levers	TEKTRO "HD-T390"

Rims	MACH "650"
Spokes	2,0 mm, Niro, black
Front Hub	SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub	SHIMANO "Deore FH-UR600", Disc
Tires	CONTINENTAL "Contact Plus" 50-622

Motor	BOSCH "Performance CX", 36 V, 250 W
Battery	BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Display	BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
Charger	BOSCH 4 Ah

Lights	Front: CONTEC "Dlux 120 E+" 120 Lux, Rear: CONTEC &bdquo;TL-335 E-Stop“, mit Stoplicht
Fenders	CURANA "Apollo", 60mm, schwarz matt, Spoiler
Racks	MIK-ALU-GEPÄCKTRÄGER MIK-System
Lock	CONTEC "Powerloc" M

2023 VictoriaMANOC 4 diamond

2023 Victoria
MANOC 4 diamond
