Quartz Grey

BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

CURANA "Apollo", 60mm, schwarz matt, Spoiler

RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt

SHIMANO "HB-MT400", QR 15, Disc, Center Lock

ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz

Front: CONTEC "Dlux 120 E+" 120 Lux, Rear: CONTEC &bdquo;TL-335 E-Stop&ldquo;, mit Stoplicht

ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6

ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer

The MANOC 3 is equipped with the continuously shiftable IGH, just like its siblings. Combined with the low-maintenance Gates belt, this maximizes comfort to a maximum.Supporting its own pedaling power is the Bosch Smart System, which is used here in the form of the Performance motor and PowerTube 625 battery. You can also send additional information that the Kiox 300 color display does not provide to your smartphone via the eFlow Bike app. Other apps, such as Komoot or Strava, can use the information for navigation and tour planning.

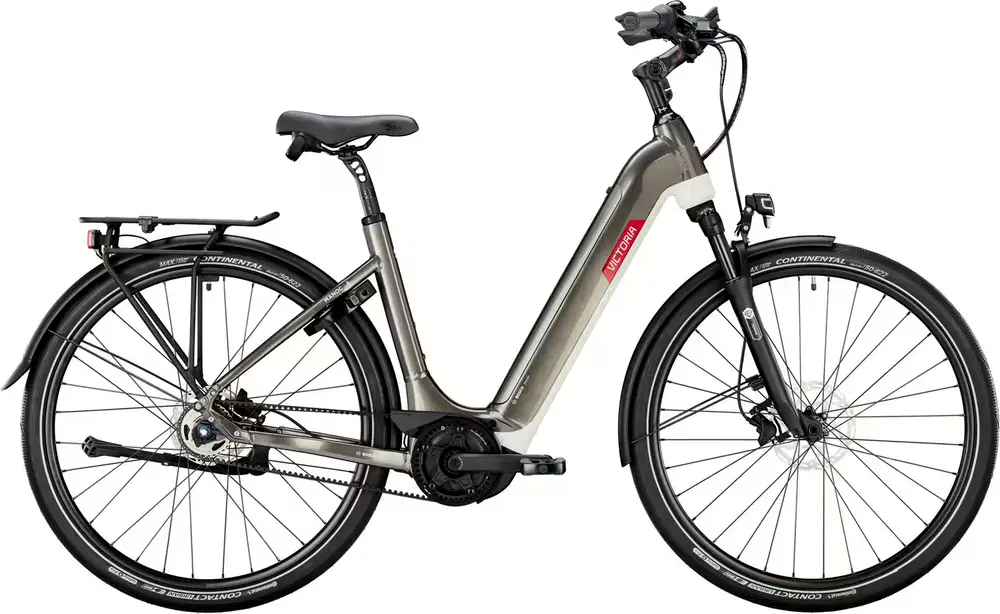

Victoria MANOC 3 wave

A 700c aluminum frame hardtail crosscountry e-bike with high-end components.

Weight	64.8 lbs
Frame	Aluminum
Suspension	Hardtail, 80mm
Fork	RST VIV AIR
Wheels	700c Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset	FSA
Motor	Bosch 250W 63Nm mid-drive
Battery	Bosch 625Wh
Brakes	Tektro Hydraulic Disc

Frame	Aluminium BB Standard: Bosch, Press Fit Color: Quartz Grey
Fork	RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt Travel: 80mm
Bottom Bracket	BOSCH
Stem	ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar	ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz
Saddle	SELLE ROYAL "Orbis"
Seatpost	ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6 Type: Rigid
Pedals	UNION "SP-828", Alu, Antislip
Grips	CONTEC "Tour Wing"

Crank	FSA "CK-602", Gen.3, 170 mm
Shifters	ENVIOLO Twist Pure
Cassette	GATES
Chain Guide	HESLING "Velo" Bosch Gen.3 schwarz matt
Brakes	TEKTRO "HD-T390" Type: Tektro Hydraulic Disc
Brake Levers	TEKTRO "HD-T390"

Rims	MACH "650"
Spokes	2,0 mm, Niro, schwarz
Front Hub	SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub	ENVIOLO "TR"
Tires	CONTINENTAL "Contact Plus" 50-622

Motor	BOSCH "Performance", 36 V, 250 W
Battery	BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh
Display	BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
Charger	BOSCH, 4A

Lights	Front: CONTEC "Dlux 120 E+" 120 Lux, Rear: CONTEC &bdquo;TL-335 E-Stop“, mit Stoplicht
Fenders	CURANA "Apollo", 60mm, schwarz matt, Spoiler
Racks	MIK-ALU-GEPÄCKTRÄGER MIK-System
Lock	CONTEC "Powerloc" M

2023 VictoriaMANOC 3 wave

2023 Victoria
MANOC 3 wave
