Wheat Beige

BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh

FOX 22 AWL 275IN Boost 44mm Rake w/Rail Rem. Trav.100mm

FSA "KFX", 700mm / 18mm / Ø31.8mm / UD Carbon

Front: CONTEC "DLUX 120 E-XTENT" 200/120 Lux High beam, Rear: integriert im Gepäckträger / rack-integrated

FSA "KFX SB0", Ø31.6mm / 350mm / UD Carbon

FSA KFX "ST-OS-105/CSI", 100mm / 31.8mm / 35mm / &plusmn;12° / UD Carbon / Black Decal / Ti bolt + 40mm Carbon Spacer

SCHWALBE "HURRICANE", 57-584, Black /Reflex Raceguard

The FYBRON monocoque carbon frame delivers minimal weight and optimal cycling stability. The top model is the "FYBRON 8", which carries the lightweight concept to new peaks thanks to the components used. Along with the main frame, the crank, handlebar, stem and seatpost are all made of this composite material.Roughly 24 kg is a peak value when you consider that the PowerTube 750 battery pack already weighs 4.4 kg. There are also reductions in other places: Superlight inner tubes and light MTB tyres with extra-low rolling resistance tread help to further decrease the total weight.Apart from reducing the weight, of course, the carbon frame also offers an entirely different advantage: thanks to the lack of visible joints such as those seen on welded aluminium frames, the design language is seamless and organic. It gives the impression of a unified whole. On all FYBRON models, this is additionally highlighted by the paintwork. The main frame colour, wheat beige for the "FYBRON 8", features a colour gradient. The colour becomes darker as you move down the frame. This effect is also interrupted by the matt black divider, which runs from the headset along the down tube and back to the seat tube.The cycling performance of this carbon overland bike is extremely impressive. The tight derailleur system shifts nimbly between the eleven gears. The air-suspension FOX AWL (Adventure without Limits) 100 mm fork was specially developed for use on fully equipped SUV e-bikes and has a very sensitive response.The 120 lux of the LED front headlight also extend the tour gladly into the darkness. A special highlight: the headlight has a high beam function that can be activated at the touch of a button on the handlebars, which further enhances visibility at night.Incidentally, the permissible total weight of the FYBRON series is 140 kg. All three models are available in two frame versions. In all the latest VICTORIA designs the Bosch PowerTube battery pack integrated in the lower tube can easily be lifted up and out for charging, or it can just as easily be charged right there in the frame.

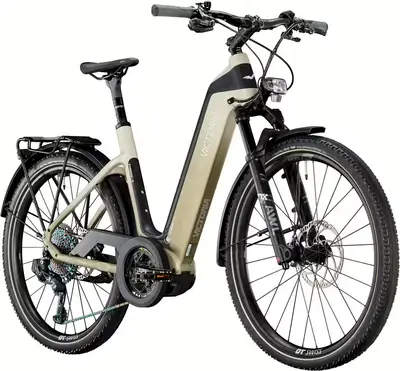

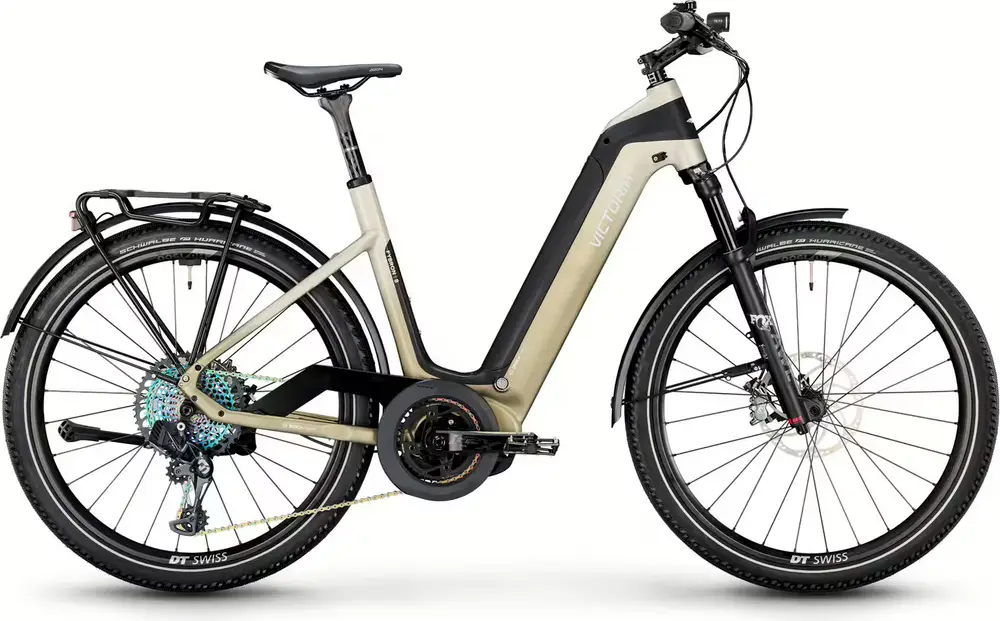

Victoria FYBRON 8 wave

A 27.5″ carbon frame hardtail crosscountry e-bike with ultra high-end components.

Weight	53.6 lbs
Frame	Carbon
Suspension	Hardtail, 100mm
Fork	Fox AWL
Wheels	27.5″ Aluminum
Drivetrain	Electronic
Groupset	X01 Eagle AXS
Motor	Bosch 250W 85Nm mid-drive
Battery	Bosch 750Wh
Brakes	Magura MT7 Pro Hydraulic Disc

Frame	Bosch-Intube-SUV-Frame, Carbon BB Standard: Bosch, Press Fit Color: Wheat Beige
Fork	FOX 22 AWL 275IN Boost 44mm Rake w/Rail Rem. Trav.100mm Travel: 100mm Spring Type: Air
Bottom Bracket	BOSCH
Stem	FSA KFX "ST-OS-105/CSI", 100mm / 31.8mm / 35mm / ±12° / UD Carbon / Black Decal / Ti bolt + 40mm Carbon Spacer
Handlebar	FSA "KFX", 700mm / 18mm / Ø31.8mm / UD Carbon
Saddle	FIZIK "Terra Aidon X5 - 145mm"
Seatpost	FSA "KFX SB0", Ø31.6mm / 350mm / UD Carbon Type: Rigid
Pedals	VP "VP-531E", Alu,
Grips	CONTEC "Tour Wing"

Rear Derailleur	SRAM "X01 Eagle AXS"
Crank	FSA "CK-9011/IS", Gen.4, 170mm
Shifters	SRAM "AXS Eagle"
Cassette	SRAM "Eagle", 10-52 Z.
Chain Guide	CURANA "Chainguard"
Brakes	MAGURA "MT7 Pro" Type: Magura MT7 Pro Hydraulic Disc
Brake Levers	MAGURA

Rims	DT SWISS HU1900
Spokes	DT SWISS HU1900
Front Hub	DT SWISS HU1900
Rear Hub	DT SWISS HU1900
Tires	SCHWALBE "HURRICANE", 57-584, Black /Reflex Raceguard

Motor	BOSCH "Performance CX", 36 V, 250 W
Battery	BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote	BOSCH, "BRC3600" LED Remote
Charger	BOSCH 4 Ah

Lights	Front: CONTEC "DLUX 120 E-XTENT" 200/120 Lux High beam, Rear: integriert im Gepäckträger / rack-integrated
Fenders	SKS PET Fender A69R 27,5
Racks	SKS GT8 Plus mit MIK und Licht

2023 VictoriaFYBRON 8 wave

2023 Victoria
FYBRON 8 wave
